2. Specifications AX3210P
mechanism for curvilinear vertical arrays, allow-
ing the adjustment of the angle between each of
the elements. The enclosures must be made
of 15 mm birch plywood. The trapezoidal an-
gle of the cabinets must be 12
◦
. Dimensions
should be: 32.1 cm high, 79.6 cm wide (front)
and 66.5 cm deep. The system should be a
PROEL AX3210P.
Connectors
2 x Neutrik Speakon NL4MP, linked in parallel.
1+
2+
1-2-
1+
1-
2-
2+
LF+
LF-
MF/HF+
MF/HF-

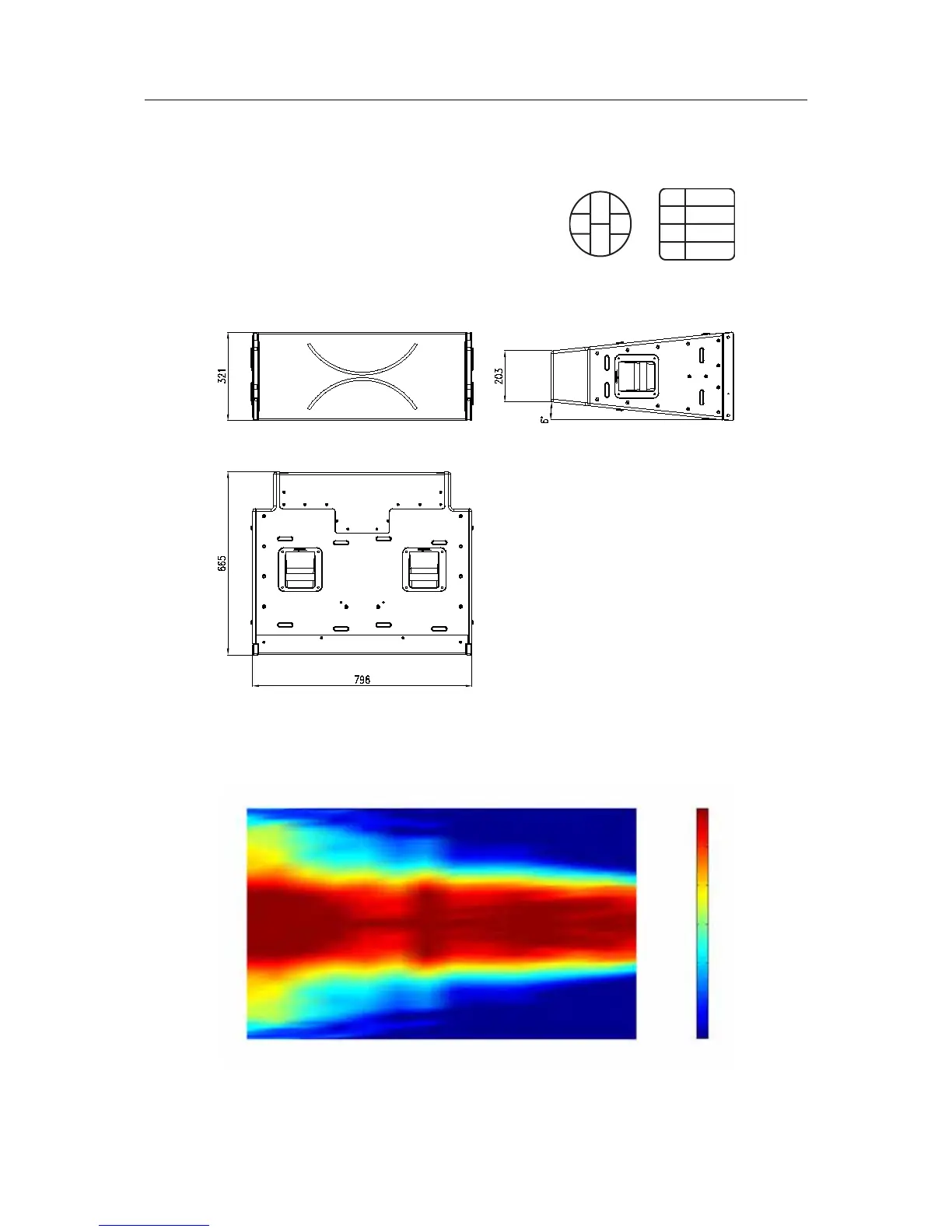

Dimensions
Graphical data
Attenuation map (horizontal):
−30
−25
−20
−15
−10
−5
0
1k 20k
−160
−140
−120
−100
−80
−60
−40
−20
0
20
40
60
80
100
120
140
160
frequency [Hz]
angle [degrees]
Polar Coverage Map − Attenuation [dB]
