PROEL AXIOM - VERSION 2.0 - Page 21

2. Specifications AX1118SP

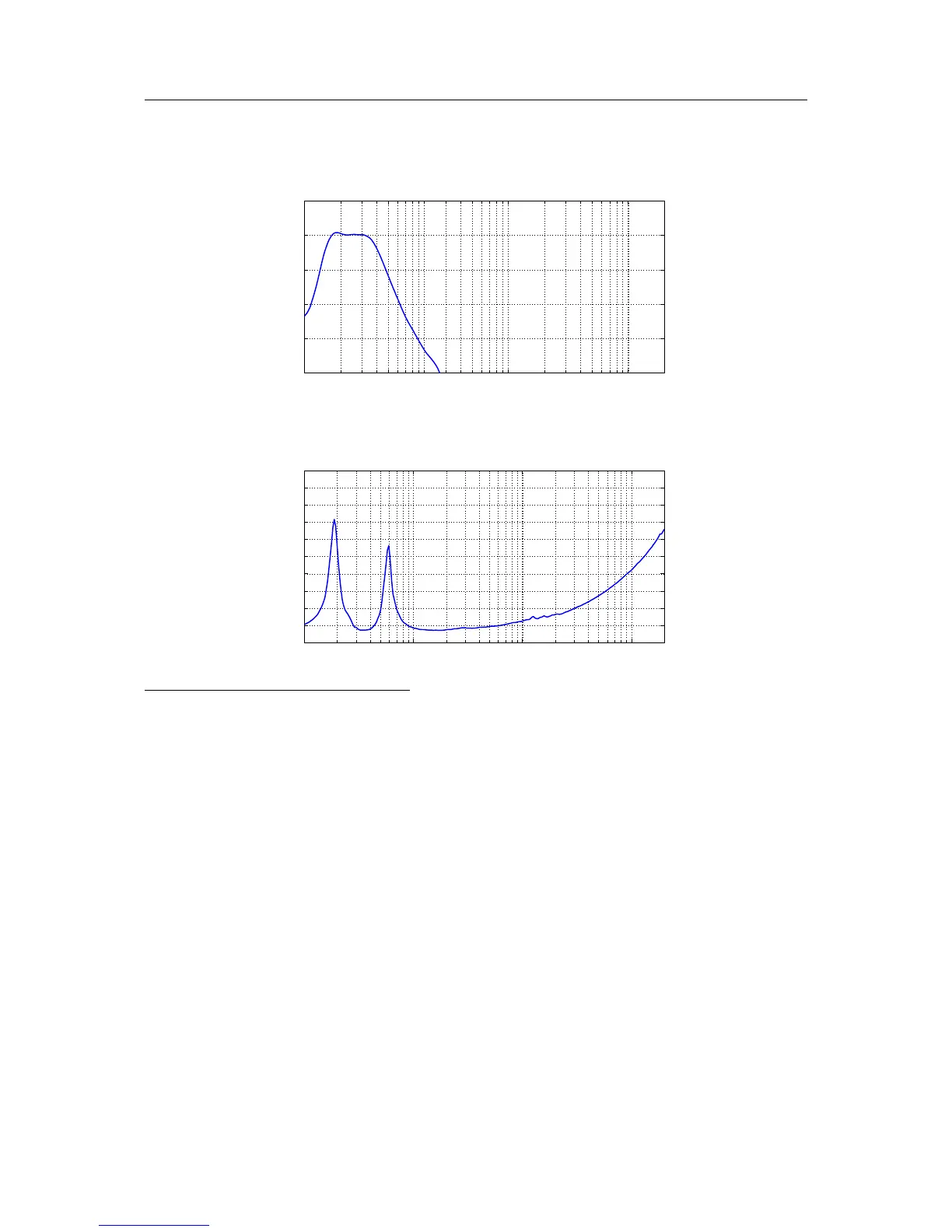

Graphical data
Frequency response
1
:
20 100 1k 10k 20k
−40
−30
−20
−10
0
10
Frequency [Hz]
SPL [dB]
Impedance:
10 100 1k 10k 20k
0
10
20
30
40
50
60
70
80
90
100
Frequency [Hz]
Impedance [ohm]
1
Measured with 2.83 V @ 1m. with ground plane procedure in free field.
