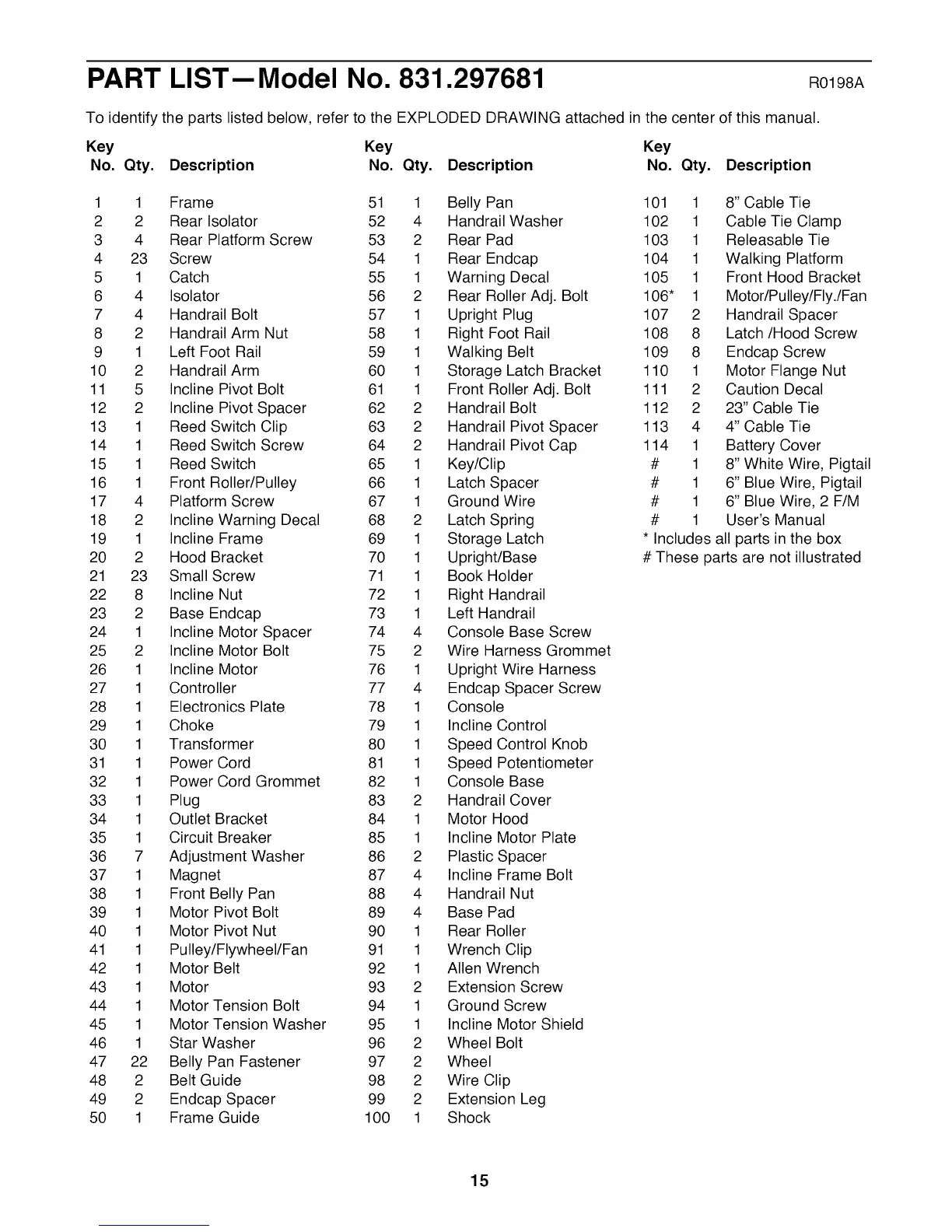

PART LIST--Model No. 831.297681 R0198A
To identify the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Frame 51 1 Belly Pan
2 2 Rear Isolator 52 4 Handrail Washer
3 4 Rear Platform Screw 53 2 Rear Pad
4 23 Screw 54 1 Rear Endcap
5 1 Catch 55 1 Warning Decal
6 4 Isolator 56 2 Rear Roller Adj. Bolt
7 4 Handrail Bolt 57 1 Upright Plug
8 2 Handrail Arm Nut 58 1 Right Foot Rail
9 1 Left Foot Rail 59 1 Walking Belt
10 2 Handrail Arm 60 1 Storage Latch Bracket
11 5 Incline Pivot Bolt 61 1 Front Roller Adj. Bolt
12 2 Incline Pivot Spacer 62 2 Handrail Bolt
13 1 Reed Switch Clip 63 2 Handrail Pivot Spacer
14 1 Reed Switch Screw 64 2 Handrail Pivot Cap
15 1 Reed Switch 65 1 Key/Clip
16 1 Front Roller/Pulley 66 1 Latch Spacer
17 4 Platform Screw 67 1 Ground Wire
18 2 Incline Warning Decal 68 2 Latch Spring
19 1 Incline Frame 69 1 Storage Latch
20 2 Hood Bracket 70 1 Upright/Base
21 23 Small Screw 71 1 Book Holder
22 8 Incline Nut 72 1 Right Handrail
23 2 Base Endcap 73 1 Left Handrail
24 1 Incline Motor Spacer 74 4 Console Base Screw
25 2 Incline Motor Bolt 75 2 Wire Harness Grommet
26 1 Incline Motor 76 1 Upright Wire Harness
27 1 Controller 77 4 Endcap Spacer Screw
28 1 Electronics Plate 78 1 Console
29 1 Choke 79 1 Incline Control
30 1 Transformer 80 1 Speed Control Knob
31 1 Power Cord 81 1 Speed Potentiometer
32 1 Power Cord Grommet 82 1 Console Base
33 1 Plug 83 2 Handrail Cover
34 1 Outlet Bracket 84 1 Motor Hood
35 1 Circuit Breaker 85 1 Incline Motor Plate
36 7 Adjustment Washer 86 2 Plastic Spacer
37 1 Magnet 87 4 Incline Frame Bolt
38 1 Front Belly Pan 88 4 Handrail Nut
39 1 Motor Pivot Bolt 89 4 Base Pad
40 1 Motor Pivot Nut 90 1 Rear Roller
41 1 Pulley/Flywheel/Fan 91 1 Wrench Clip
42 1 Motor Belt 92 1 Allen Wrench
43 1 Motor 93 2 Extension Screw
44 1 Motor Tension Bolt 94 1 Ground Screw
45 1 Motor Tension Washer 95 1 Incline Motor Shield
46 1 Star Washer 96 2 Wheel Bolt
47 22 Belly Pan Fastener 97 2 Wheel
48 2 Belt Guide 98 2 Wire Clip
49 2 Endcap Spacer 99 2 Extension Leg
50 1 Frame Guide 100 1 Shock
101 1 8" Cable Tie
102 1 Cable Tie Clamp
103 1 Releasable Tie
104 1 Walking Platform
105 1 Front Hood Bracket
106" 1 Motor/Pulley/Fly./Fan
107 2 Handrail Spacer
108 8 Latch/Hood Screw
109 8 Endcap Screw
110 1 Motor Flange Nut
111 2 Caution Decal
112 2 23" Cable Tie
113 4 4" Cable Tie
114 1 Battery Cover
# 1 8" White Wire, Pigtail
# 1 6" Blue Wire, Pigtail
# 1 6" Blue Wire, 2 F/M
# 1 User's Manual
* Includes all parts in the box
# These parts are not illustrated
15
