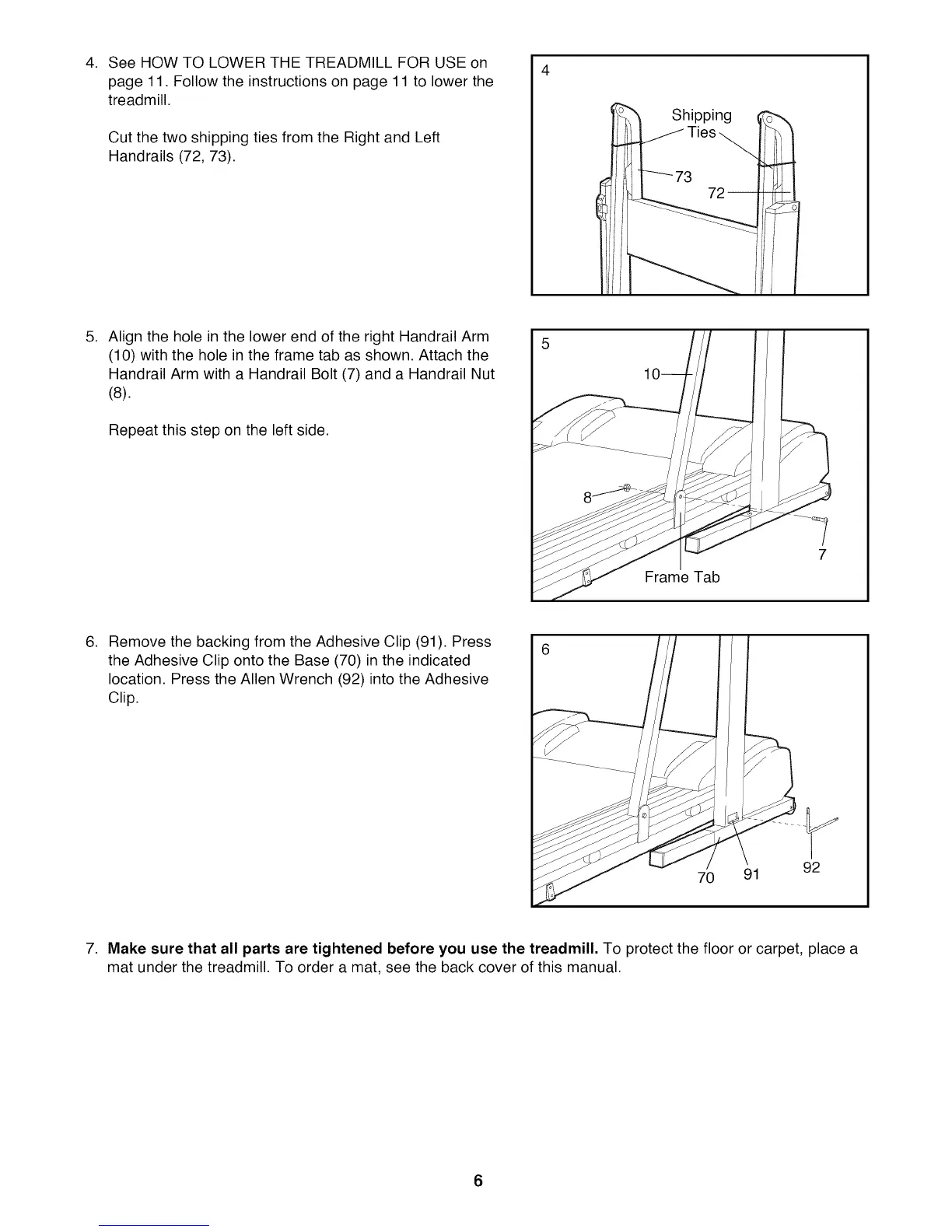

4. 4
SeeHOWTOLOWERTHETREADMILLFORUSEon
page11.Followtheinstructionsonpage11to lowerthe
treadmill.
CutthetwoshippingtiesfromtheRightandLeft
Handrails(72,73).
_7 Shipping
,
Align the hole in the lower end of the right Handrail Arm
(10) with the hole in the frame tab as shown. Attach the
Handrail Arm with a Handrail Bolt (7) and a Handrail Nut
(8).
Repeat this step on the left side.
Frame Tab
7
,
Remove the backing from the Adhesive Clip (91). Press
the Adhesive Clip onto the Base (70) in the indicated
location. Press the Allen Wrench (92) into the Adhesive
Clip.
6
0
91 92
7. Make sure that all parts are tightened before you use the treadmill. To protect the floor or carpet, place a
mat under the treadmill. To order a mat, see the back cover of this manual.
6
