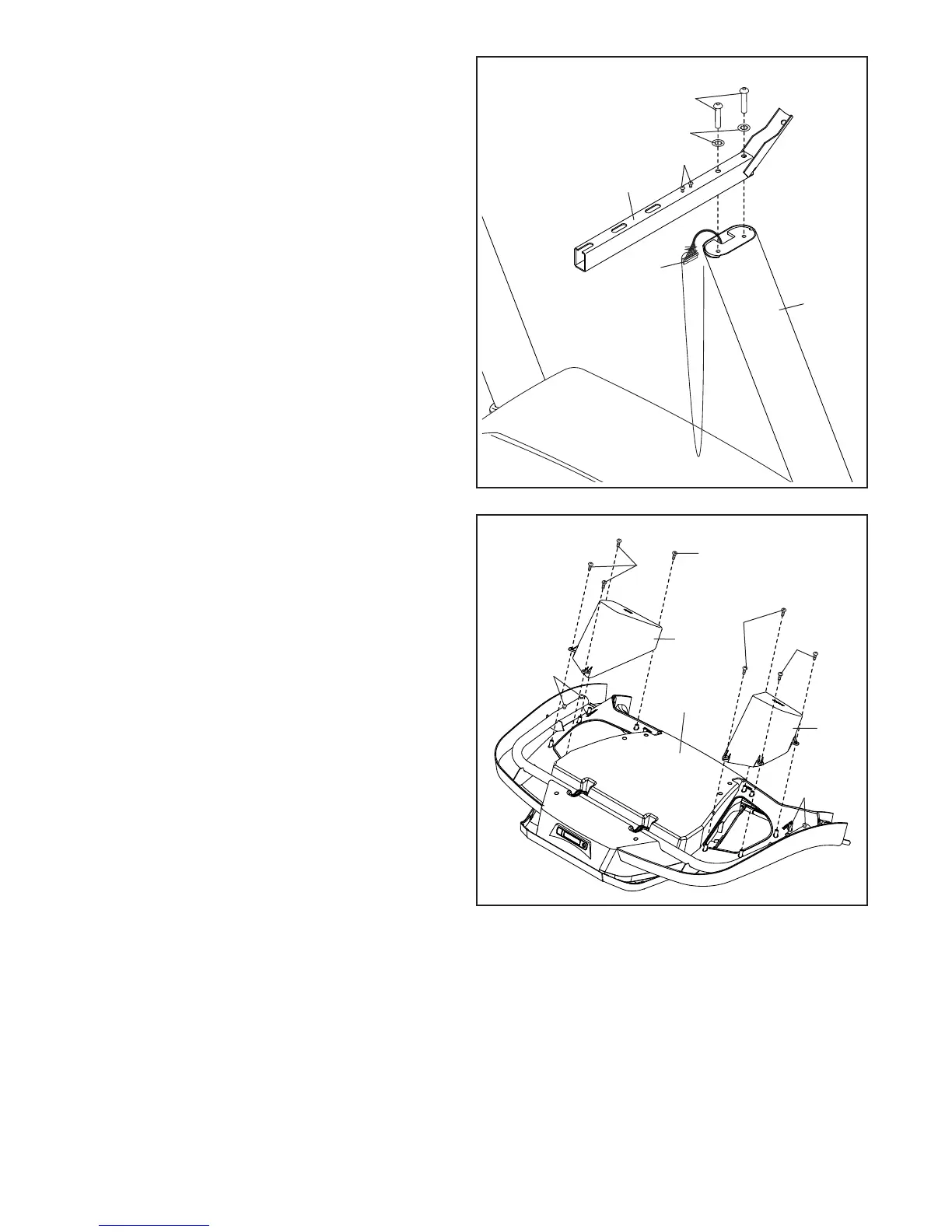

9. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the 1/4" x 1/2" Screws (9). Do not
discard the Screws; the Screws will be used
in assembly step 11.
Identify the Left Tray (61) with the writing on the
bottom. Attach the Left Tray with four #8 x 1/2"
Screws (3). Start all four Screws before tighten-
ing them. Be careful not to overtighten the
Screws.
Attach the Right Tray (50) in the same way.
9
3
Console
Assembly
3
9
61
50
3
8. Set a Handrail (80) onto the Right Upright (85).
Make sure that the Upright Wire (87) is not
pinched.
Attach the Handrail (80) with two 5/16" x 2"
Screws (4) and two 5/16" Star Washers (13).
Start both Screws before tightening them.
Attach the other Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
Remove and discard the two indicated screws
(A) from both Handrails (80) (only one is shown).
80
13
A
85
4
87
8
9
3
