13

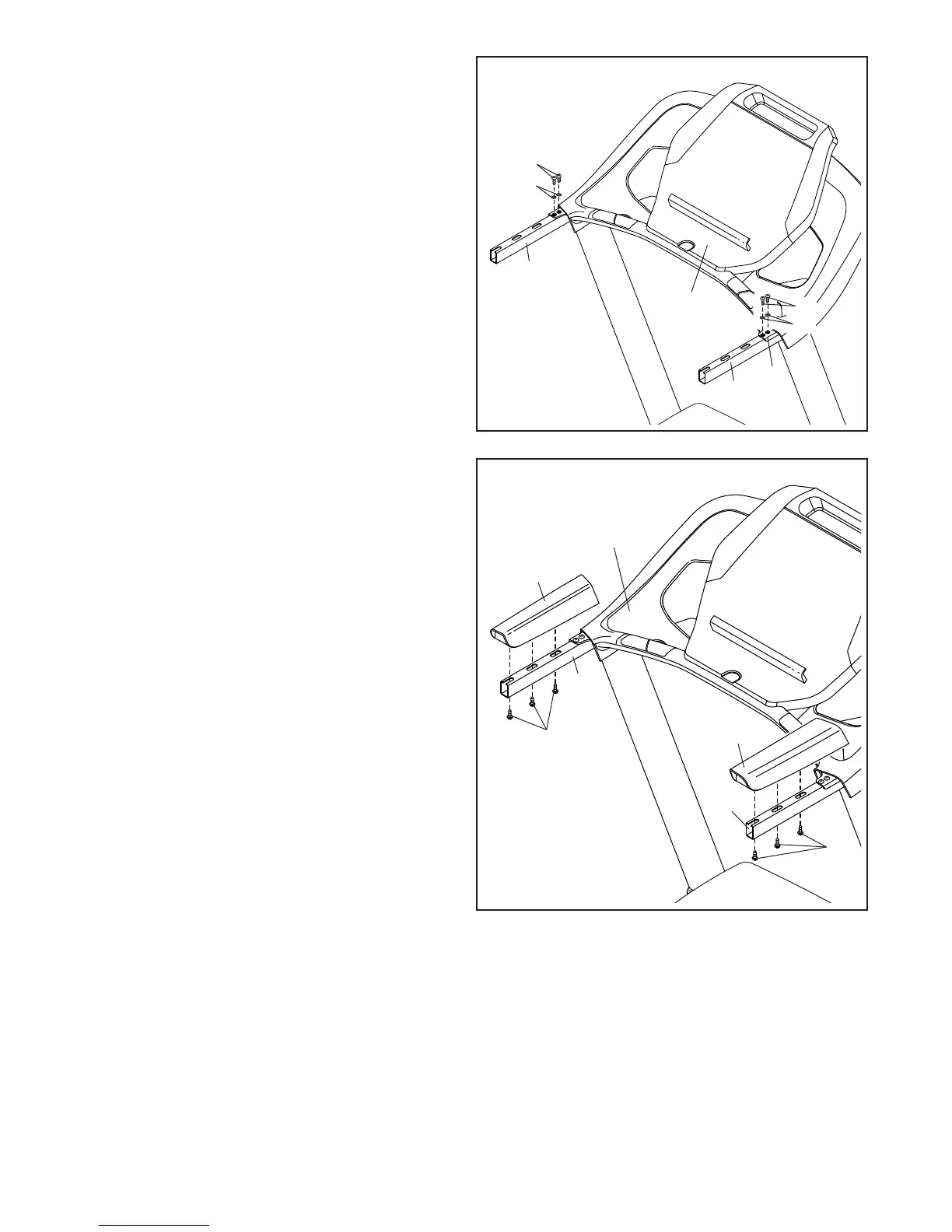

12. IMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (2).
Tighten four #10 x 3/4" Screws (2) with four 1/4"
Star Washers (12) into the Crossbar (93) and the
Handrails (80). Start all four Screws, and then
tighten them.
12
2
2
80
93
80
13. Identify the Left and Right Handrail
Inserts (81, 82).
Attach the Left Handrail Insert (81) to the left
Handrail (80) with three #8 x 3/4" Screws (1).
Note: Slide the Left Handrail Insert up against
the console assembly before tightening the
Screws.
Attach the Right Handrail Insert (82) in the
same way.
See step 6. Tighten the four 3/8" x 4" Screws
(7) and two 3/8" x 1 1/2" Screw (14).
13
80
82
81
80
1
Console
Assembly
12
12
1
Console
Assembly
To Next Page
