10

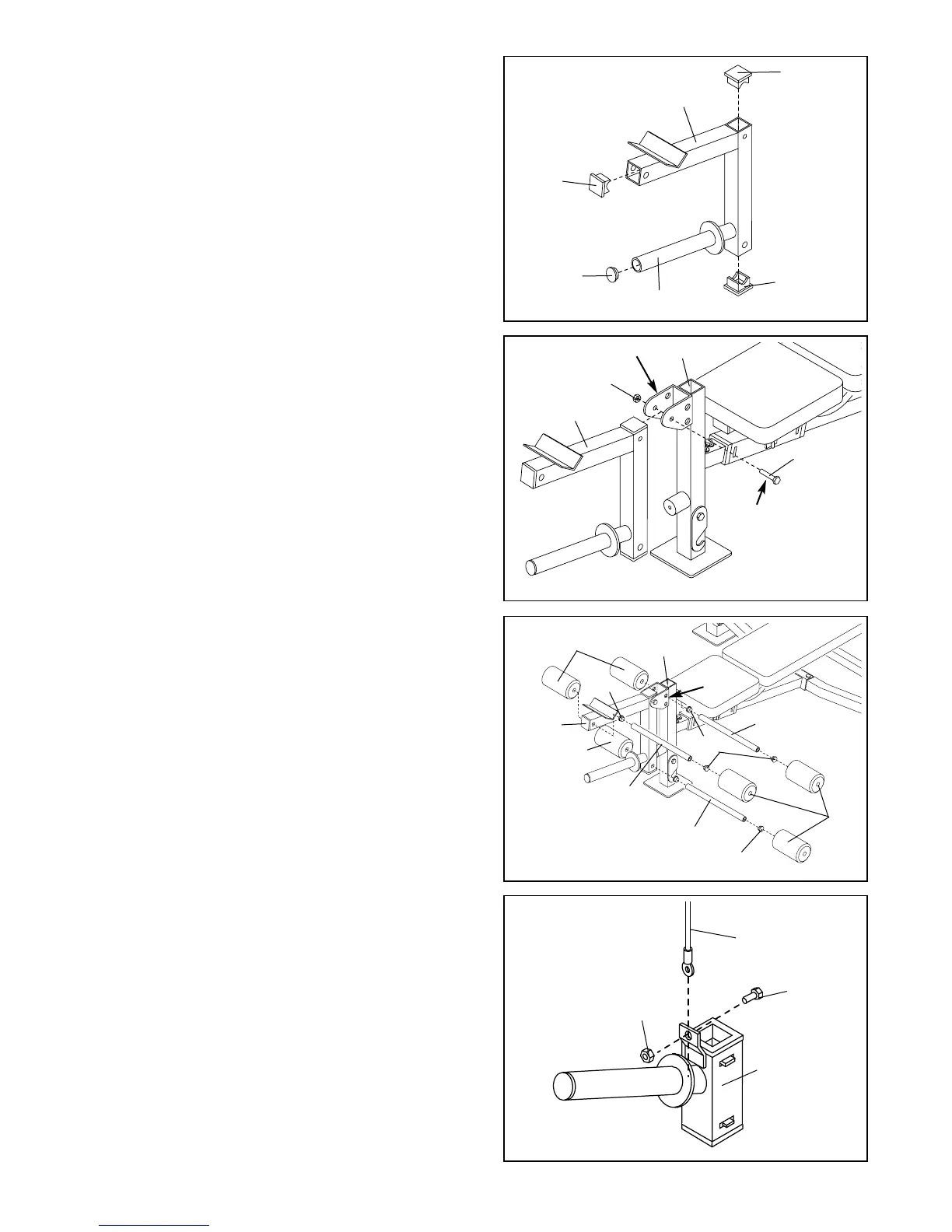

13. Lubricate the M10 x 72mm Bolt (59).
Attach the Leg Lever (18) to the bracket (H) on the
Front Leg (19) with the M10 x 72mm Bolt (59) and an
M10 Nylon Locknut (1).
13
18
1
19
59
H
Lubricate
14. Press a 3/4” Round Inner Cap (54) into each end of
the three Pad Tubes (46 and 48).
Insert a Short Pad Tube (48) through the upper hole
in the Leg Lever (18). Slide two Foam Pads (10) onto
the Pad Tube.
Insert the Long Pad Tube (46) through the lower hole
in the Leg Lever (18). Slide two Foam Pads (10) onto
the Pad Tube.
Insert a Short Pad Tube (48) through one set of holes
in the bracket (H) on the Front Leg (19). Slide two
Foam Pads (10) onto the Pad Tube.
14
18
10
10
10
54
48
H
54
19
46
48
54
12. Press a 2” Square Inner Cap (17) into each end of
the Leg lever (18).
Press a 48mm Round Inner Cap (12) into the end of
the weight tube (G).
Note: The above steps may have been pre-assem-
bled by the factory.
12
12
17
18
17
G
17
15
15. Attach the Cable (45) to the Weight Carriage (37)
with the M10 x 19mm Bolt (8) and an M10 Nylon
Locknut (1).
45
37
1
8
