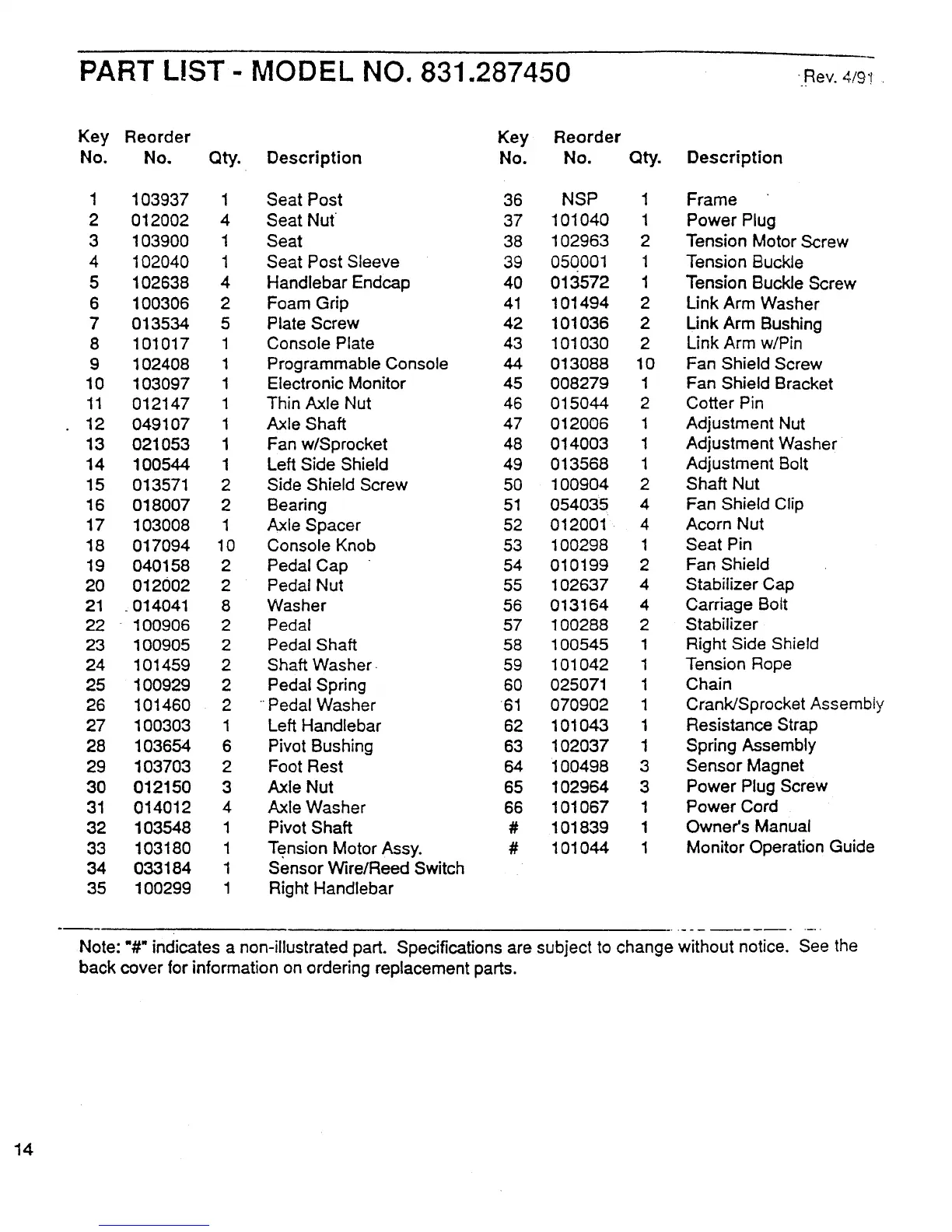

PART LIST- MODEL NO. 831.287450 Rev.4;9
Key Reorder Key Reorder
No. No. Qty. Description No. No. Qty. Description
1 103937 1 Seat Post 36 NSP 1 Frame
2 012002 4 Seat Nut 37 101040 1 Power Plug
3 103900 1 Seat 38 102963 2 Tension Motor Screw
4 102040 1 Seat Post Sleeve 39 050001 1 Tension Buckle
5 102638 4 Handlebar Endcap 40 013572 1 Tension Buckle Screw
6 100306 2 Foam Grip 41 101494 2 Link Arm Washer
7 013534 5 Plate Screw 42 101036 2 Link Arm Bushing
8 101017 1 Console Plate 43 101030 2 Link Arm w/Pin
9 102408 1 Programmable Console 44 013088 10 Fan Shield Screw
10 103097 1 Electronic Monitor 45 008279 1 Fan Shield Bracket
11 012147 1 Thin Axle Nut 46 015044 2 Cotter Pin
12 049107 1 Axle Shaft 47 012006 1 Adjustment Nut
13 021053 1 Fan w/Sprocket 48 014003 1 Adjustment Washer
14 100544 1 Left Side Shield 49 013568 1 Adjustment Bolt
15 013571 2 Side Shield Screw 50 100904 2 Shaft Nut
16 018007 2 Bearing 51 054035 4 Fan Shield Clip
17 103008 1 Axle Spacer 52 012001 4 Acorn Nut
18 017094 10 Console Knob 53 100298 1 Seat Pin
19 040158 2 Pedal Cap 54 010199 2 Fan Shield
20 012002 2 Pedal Nut 55 102637 4 Stabilizer Cap
21 .014041 8 Washer 56 013164 4 Carriage Bolt
22 100906 2 Pedal 57 100288 2 Stabilizer
23 100905 2 Pedal Shaft 58 100545 1 Right Side Shield
24 101459 2 Shaft Washer. 59 101042 1 Tension Rope
25 100929 2 Pedal Spring 60 025071 1 Chain
26 101460 2 ' Pedal Washer 61 070902 1 Crank/Sprocket Assembly
27 100303 1 Left Handlebar 62 101043 1 Resistance Strap
28 103654 6 Pivot Bushing 63 102037 1 Spring Assembly
29 103703 2 Foot Rest 64 100498 3 Sensor Magnet
30 012150 3 Axle Nut 65 102964 3 Power Plug Screw
31 014012 4 Axle Washer 66 101067 1 Power Cord
32 103548 1 Pivot Shaft # 101839 1 Owner's Manual
33 103180 1 Tension Motor Assy. # 101044 1 Monitor Operation Guide
34 033184 1 Sensor Wire/Reed Switch
35 100299 1 Right Handlebar
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
back cover for information on ordering replacement parts.
