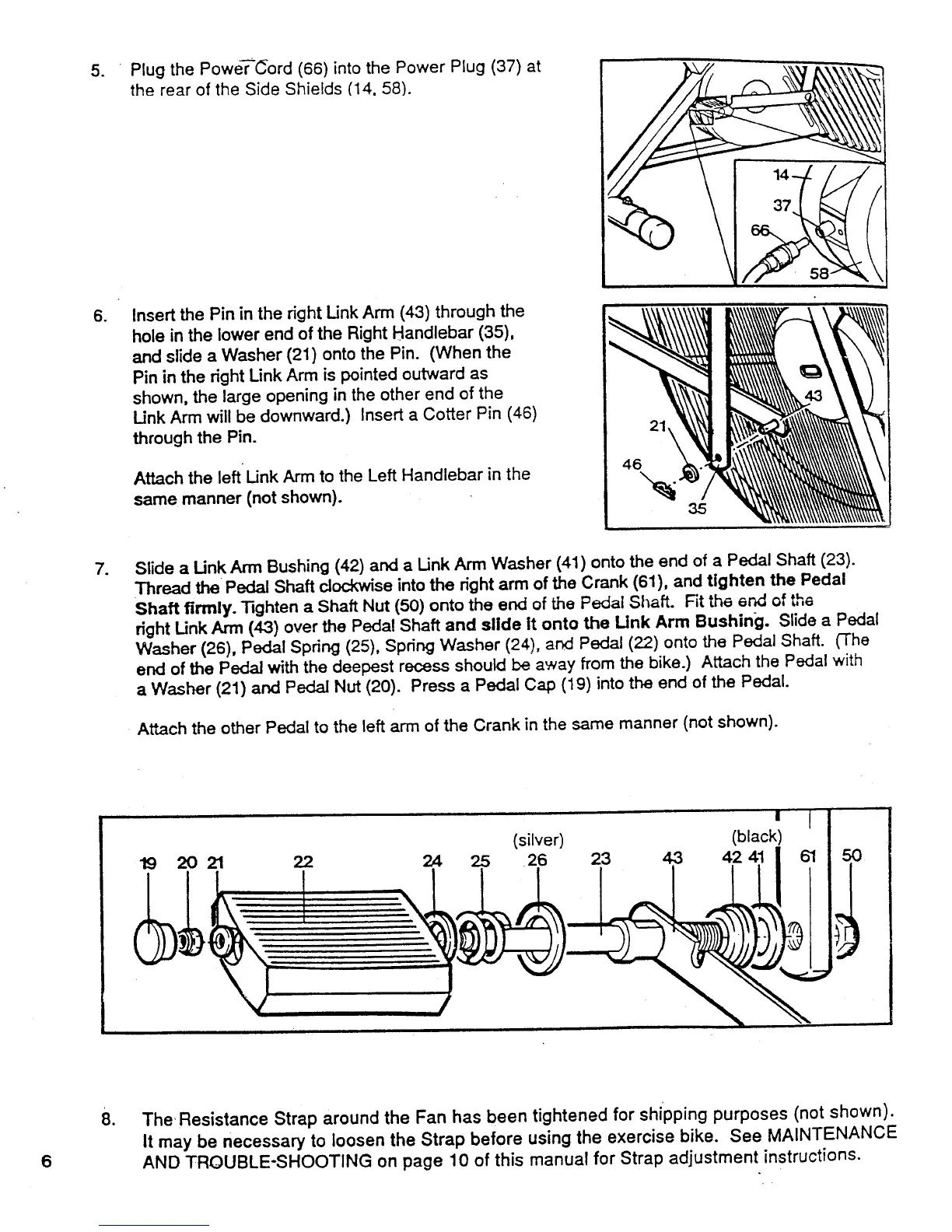

Plug the PoweT_ord (66) into the Power Plug (37) at
the rear of the Side Shields (14, 58).
°
Insert the Pin in the right Link Arm (43) through the
hole in the lower end of the Right Handlebar (35),
and slide a Washer (21) onto the Pin. (When the
Pin in the right Link Arm is pointed outward as
shown, the large opening in the other end of the
Unk Arm will be downward.) Insert a Cotter Pin (46)
through the Pin.
Attach the left Unk Arm to the Left Handlebar in the
same manner (not shown).
46
35
o
Slide a Unk Arm Bushing (42) and a Unk Arm Washer (41) onto the end of a Pedal Shaft (23).
Thread the Pedal Shaft clockwise into the right arm of the Crank (61), and tighten the Pedal
Shaft firmly. _ghten a Shaft Nut (50) onto the end of the Pedal Shaft. Fit the end of th6
right Link Arm (43) over the Pedal Shaft and slide it onto the Unk Arm Bushing. Slide a Pedal
Washer (26), Pedal Spring (25), Spring Washer (24), arid Pedal (22) onto the Pedal Shaft. (The
end of the Pedal with the deepest recess should be away from the bike.) Attach the Pedal with
a Washer (21) and Pedal Nut (20). Press a Pedal Cap (19) into the end of the Pedal.
Attach the other Pedal to the left arm of the Crank in the same manner (not shown).
.... (silver) (black l) I I
19 2021 22 24 25 26 23 43 4241 ! 611 50
6
,
The Resistance Strap around the Fan has been tightened for shipping purposes (not shown).
It may be necessary to loosen the Strap before using the exercise bike. See MAINTENANCE
AND TROUBLE-SHOOTING on page 10 of this manual for Strap adjustment instructions.
