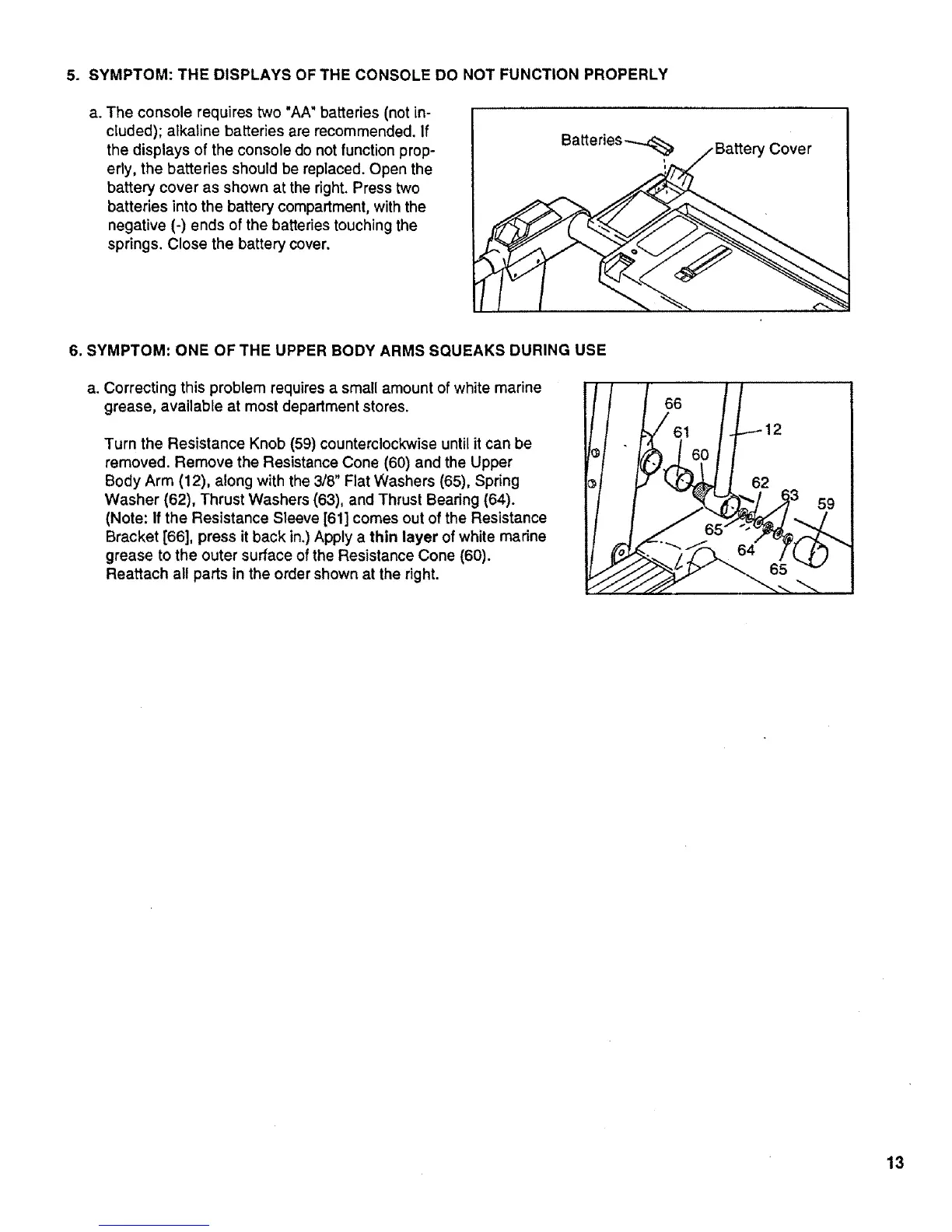

5. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. The console requires two "AA" batteries (not in-
cluded); alkaline batteries are recommended. If
the displays of the console do not function prop-
erty, the batteries should be replaced. Open the
battery cover as shown at the right. Press two
batteries into the battery compartment, with the
negative (-) ends of the batteries touching the
springs. Close the battery cover.
I
Cover
6. SYMPTOM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE
a. Correcting this problem requires a small amount of white marine Ill III
grease, available at most department stores. !_l 66
61 12
Turn the Resistance Knob (59) counterclockwise until it can be
removed. Remove the Resistance Cone (60) and the Upper • " 60
Body Arm (12), along with the 3/8" Flat Washers (65), Spring
Washer (62), Thrust Washers (63), and Thrust Bearing (64). 3 59
(Note: If the Resistance Sleeve [61] comes out of the Resistance 65
Bracket [66], press it back in.)Apply a thin layer of white marine 1/___. _...../.
grease to the outer surface of the Resistance Cone (60).
Reattach all parts in the order shown at the right. _...-jjj_ -,,._
13
To Next Page
