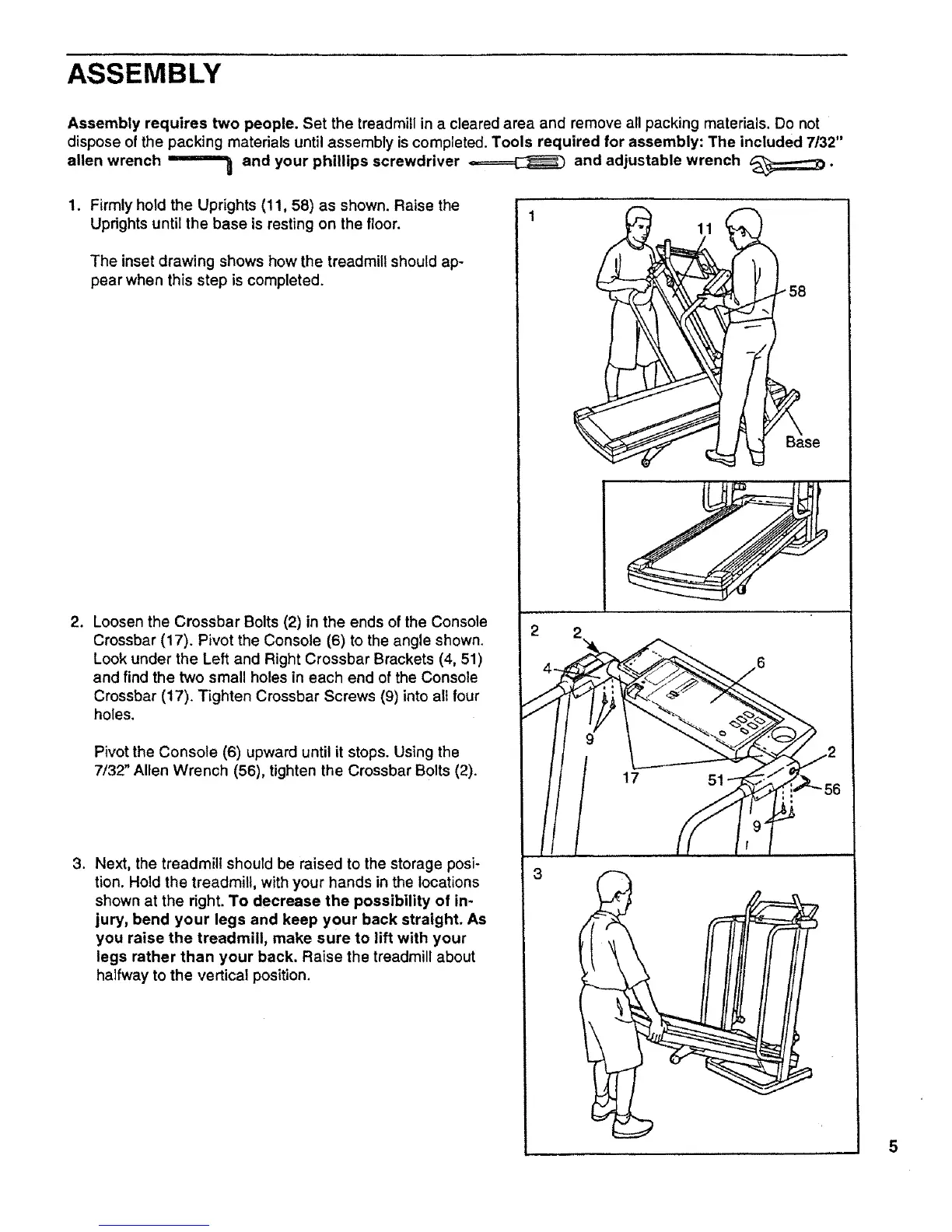

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Tools required for assembly: The included 7/32"
allen wrench ='="==_ and your phillips screwdriver _ and adjustable wrench _;;;;;;;:::_.
1. Firmly hold the Uprights (11, 58) as shown. Raise the
Uprights until the base is resting on the floor.
The inset drawing shows how the treadmill should ap-
pear when this step is completed.
,
Loosen the Crossbar Bolts (2) in the ends of the Console
Crossbar (17). Pivot the Console (6) to the angle shown.
Look under the Left and Right Crossbar Brackets (4, 51)
and find the two small holes in each end of the Console
Crossbar (17). Tighten Crossbar Screws (9) into alt four
holes.
Pivot the Console (6) upward until it stops. Using the
7/32" Allen Wrench (56), tighten the Crossbar Bolts (2).
3. Next, the treadmill should be raised to the storage posi-
tion. Hold the treadmill, with your hands in the locations
shown at the right. To decrease the possibility of in-
jury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your
legs rather than your back. Raise the treadmill about
halfway to the vertical position.
3
5
