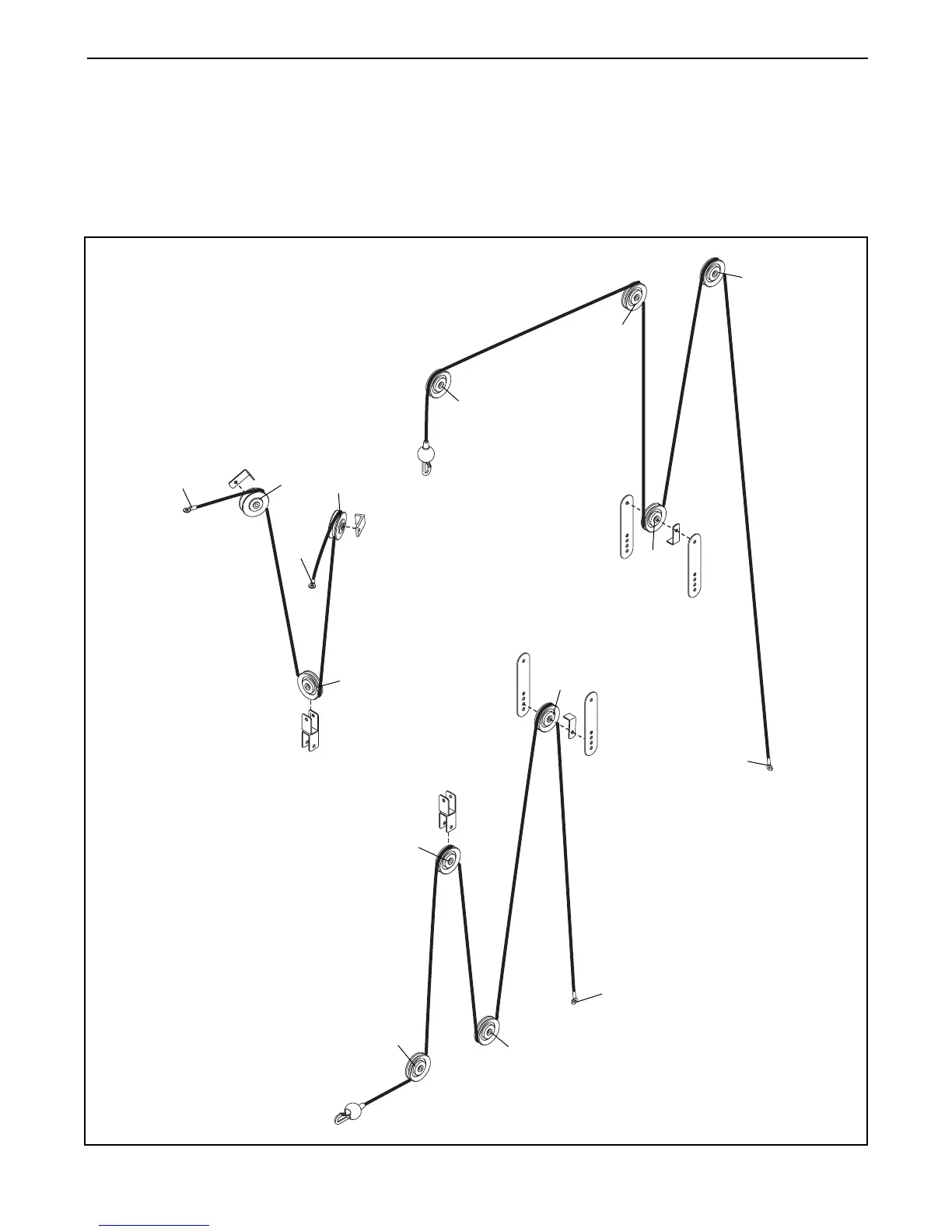

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Lat Cable (81), the Low Cable (82), and the Butterfly
Cable (83). Use the diagram to make sure that the cables and the cable traps have been assembled correctly. If
the cables have not been correctly routed, the weight bench will not function properly and damage may occur.
The numbers show the correct route for each cable. Make sure that the cable traps do not touch or bind the
cables.
1
2
3
4
5
2
3
4
5
1
2
Butterfly Cable (83)
Length: 1.25m
Lat Cable (81)
Length:3.16m
Low Cable (82)
Length: 5.59m
3
1
4
5
22
