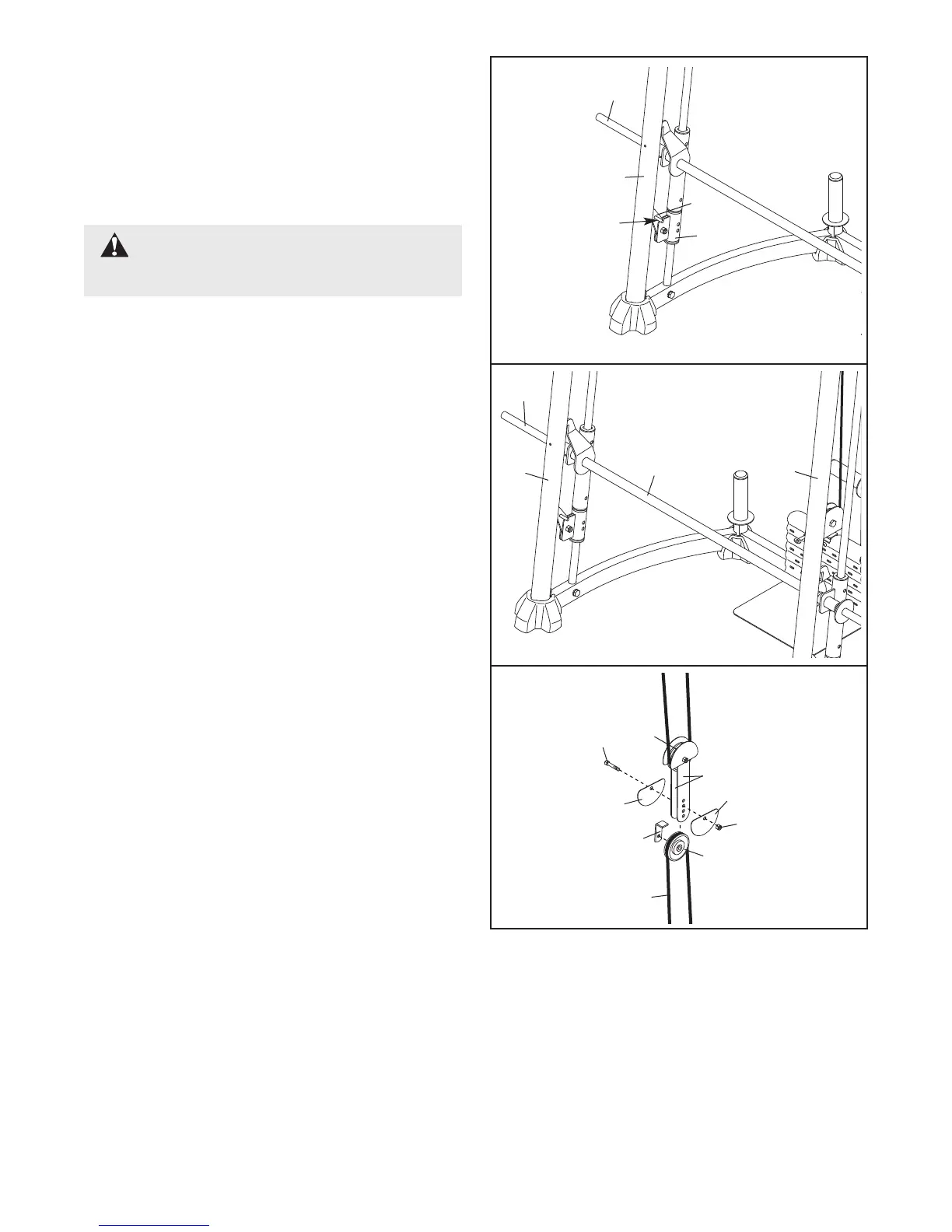

ADJUSTING THE BARBELL STOPS
Hold the handle on a Barbell Stop Hook (48) and dis-
engage the Barbell Stop Hook from the Front Upright
(43). Move the Barbell Stop (47) to the lowest point
you want the Barbell (51) to go to during the exercise.
Reengage the Hook into the Upright. Repeat with the
o
ther Barbell Stop.
43
51
Handle
ADJUSTING THE CABLE
Woven cable, the type of cable used on your weight
rack, can stretch slightly when it is first used. Slack
can be removed from the Cable (61) by moving the
lower Pulley (63) closer to the upper Pulley (63).
Remove the M10 x 50mm Bolt (79) from the Pulley
(63), the two Pulley Plates (35), the two Half Finger
Guards (65), the Cable Trap (66), and the M10 Nylon
Locknut (77). Reattach the Pulley, Cable Trap, and
Finger Guards at a higher set of holes in the Pulley
Plates with the Bolt and Nylon Locknut.
50
43
43
51
USING THE BARBELL
First, attach the desired amount of weight to the
Barbell (51) (see ADDING WEIGHT on the previous
page). Next, adjust the barbell stops (see ADJUST-
ING THE BARBELL STOPS above). Finally, lift the
Locking Bar (50) and disengage it from the Front
Uprights (43). When finished with the exercise, reen-
gage the Locking Bar into the Uprights.
WARNING: Always set both
Barbell Stops (47) at the same height.
