CABLE DIAGRAM

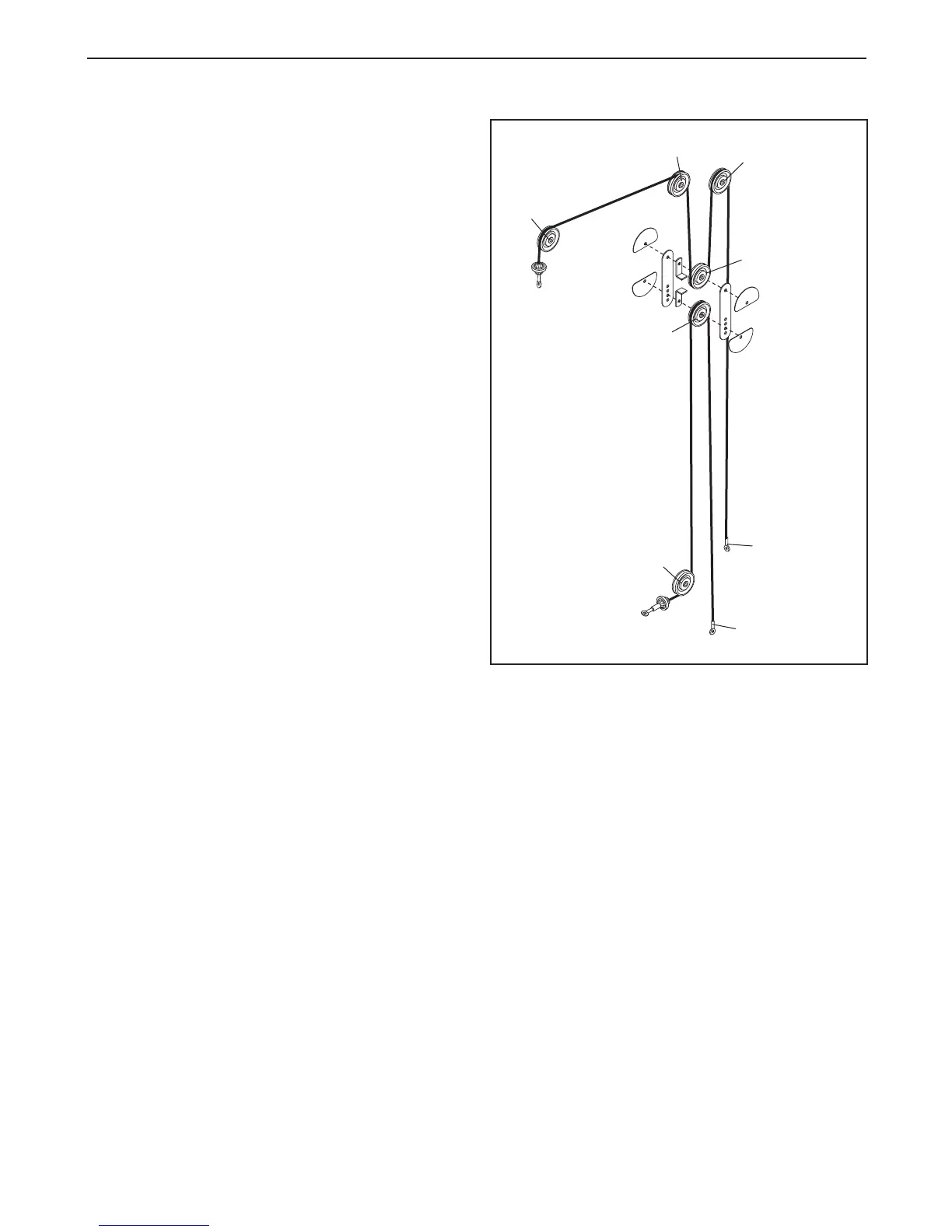

The cable diagram shows the proper routing of the
cables. Use the diagram to make sure that the cables
and the cable traps have been assembled correctly. If
the cables have not been correctly routed, the weight
bench will not function properly and damage may
occur. The numbers show the correct route for each
cable.
Make sure that the cable traps do not touch
or bind the cables.
