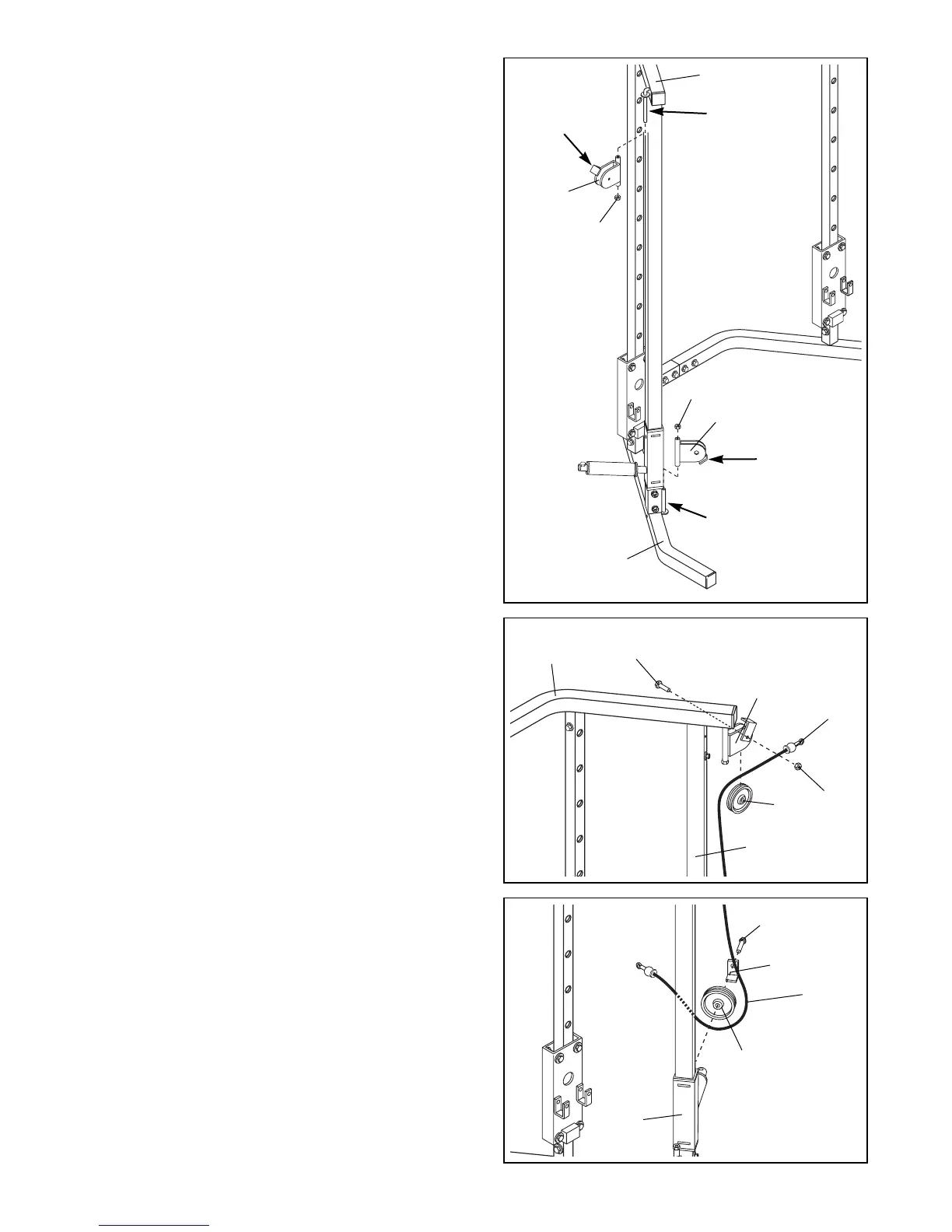

18. Wrap the Cable (45) around a 3 1/2Ó Pulley (35) in
the direction shown. Attach the Pulley to the Pulley
Bracket (28) on the Top Frame (24) with an M10 x
50mm Bolt (73) and an M10 Nylon Locknut (1).
19. Wrap the Cable (45) around a 3 1/2Ó Pulley (35) in
the direction shown. Attach the Pulley and a Cable
Trap (40) to the Weight Carriage (37) with an M10 x
39mm Bolt (39). Make sure the Cable Trap is posi-
tioned as shown, so it will hold the Cable in place.
18
19
12
73
45
37
45
42
40
39
35
28
35
24
1
17. Lubricate the welded bolts on the Top Frame (24) and
the Left Base (26).
Attach a Pulley Bracket (28) to each of the welded
bolts with a 1/2Ó Nylon Locknut (60). Note: Make
sure the Pulley Brackets are oriented correctly.
The Bracket on the Top Frame (24) must have the
welded cable trap pointed upwards. The bracket
on the Left Base (26) must have the welded cable
trap pointed downward.
17
28
60
60
28
24
26
Welded Bolt
(Lubricate)
Welded
Cable
Trap
Welded
Cable
Trap
Welded Bolt
(Lubricate)
