ProForm PFBE66080 User Manual

11
15

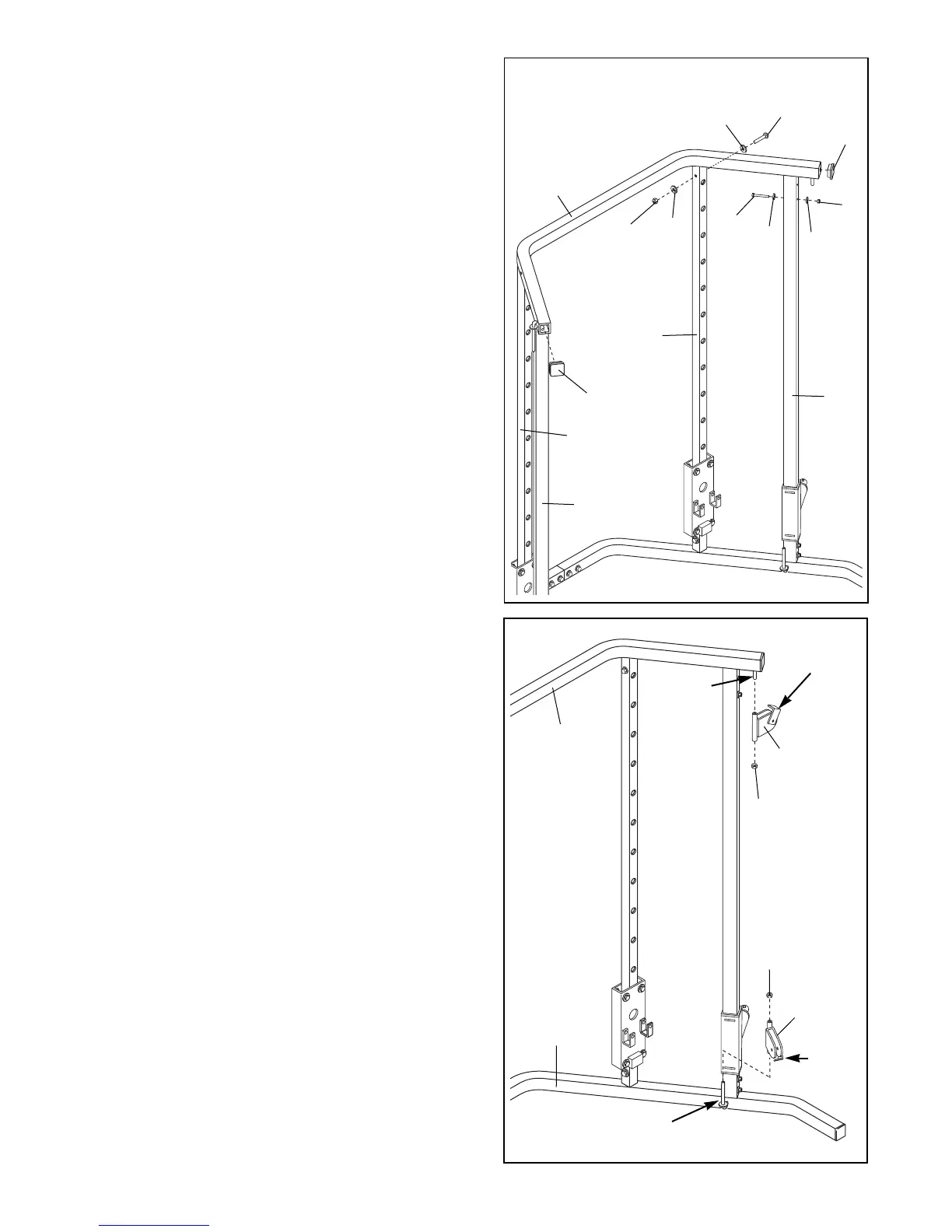

15. Press a 2Ó Square Inner Cap (17) into each end of
the Top Frame (24).
Place the Top Frame (24) on top of the four Uprights
(41, 42). Make sure the mounting brackets on the
Top Frame fit into the Uprights.
Attach the Top Frame (24) to the left Weight Upright
(42) with an M10 x 65mm Bolt (5), two M10 Washers
(6) and an M10 Nylon Locknut (1). Make sure the
Bolt is mounted in the lower of the two holes, as
shown. Do not tighten the Nylon Locknut yet.
Attach the Top Frame (24) to the left Barbell Upright
(41) with an M10 x 65mm Bolt (5), two M10 Washers
(6) and an M10 Nylon Locknut (1). Do not tighten
the Nylon Locknut yet.
Attach the Top Frame (24) to the right Weight Upright
(42) and the right Barbell Upright (41) in the same
manner. When this is completed, tighten all Nylon
Locknuts used in the Base, the Uprights and the Top
Frame (see steps 12, 15 and 17).
24
42
42
41
41
17
6
6
6
1
17
5
6
5
1
16. Lubricate the welded bolts on the Top Frame (24) and
the Right Base (25).
Attach a Pulley Bracket (28) to each of the welded
bolts with a 1/2Ó Nylon Locknut (60). Note: Make
sure the Pulley Brackets are oriented correctly.
The Bracket on the Top Frame (24) must have the
welded cable trap pointed upwards. The bracket
on the Right Base (25) must have the welded
cable trap pointed downward.
Make sure the Pulley Brackets (28) can be pivoted
freely. If not, loosen the Nylon Locknuts (60).
16
28
60
60
28
24
25
Welded
Bolt
(Lubricate)
Welded
Cable
Trap
Welded
Cable
Trap
Welded Bolt
(Lubricate)
