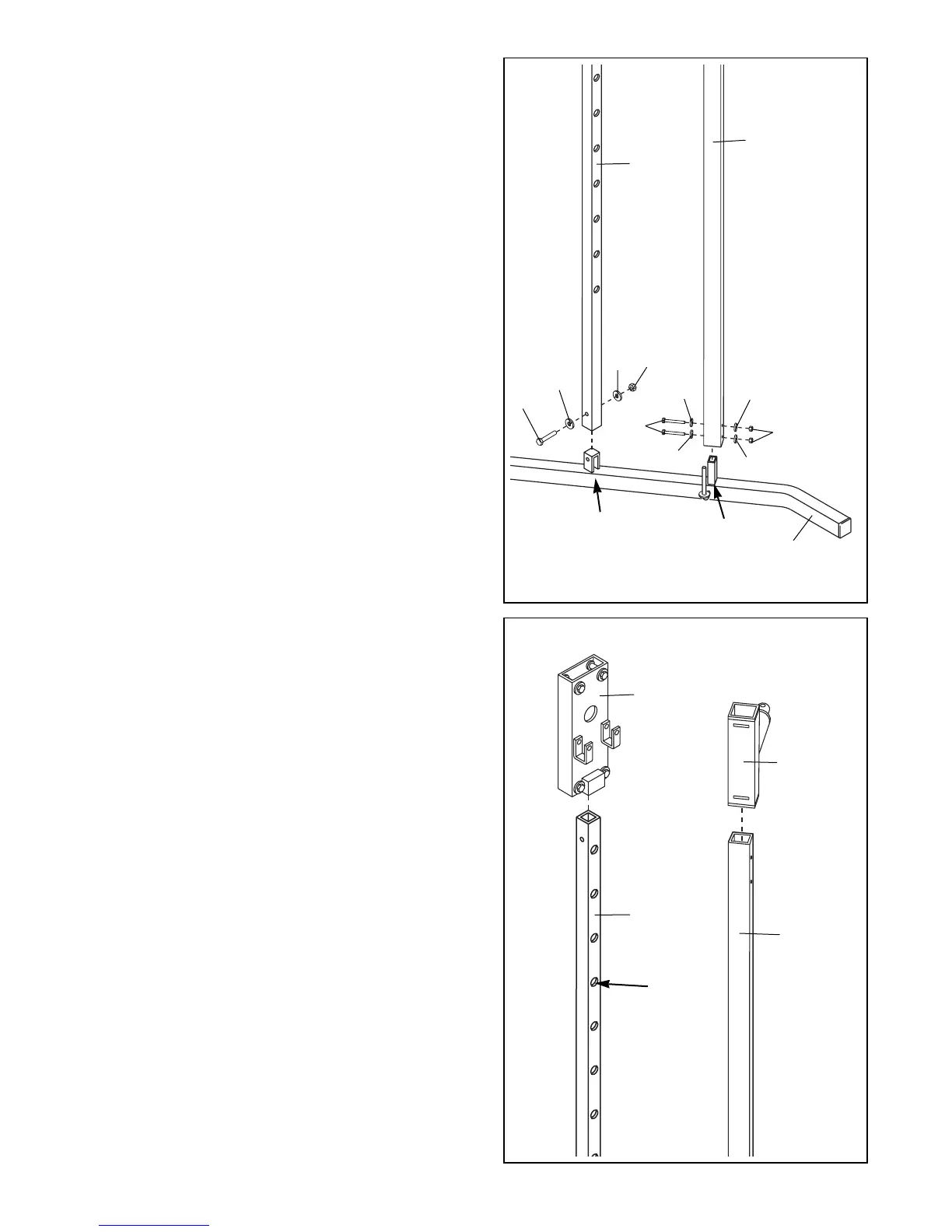

13. Attach a Weight Upright (42) to the bracket (F) on the
Right Base (25) with two M10 x 65mm Bolts (5), four
M10 Washers (6) and two M10 Nylon Locknuts (1).
Do not tighten the Nylon Locknuts yet.
Attach a Barbell Upright (41) to the bracket (G) on the
Right Base (25) with an M10 x 65mm Bolt (5), two
M10 Washers (6) and an M10 Nylon Locknut (1). Do
not tighten the Nylon Locknut yet.
Repeat the above steps for the Left Base (26, not
shown).
Make sure the Weight Uprights (41, 42) are orient-
ed exactly as shown.
14. Slide a pre-assembled Weight Carriage (37) onto
both Weight Uprights (42).
Slide a pre-assembled Barbell Rack (31) onto both
Barbell Uprights (41).
Make sure the Weight Uprights (41, 42) are orient-
ed with the large holes facing inward exactly as
shown.
42
37
42
41
Large
Holes
31
41
25
1
6
6
F
G
6
5
6
6
6
5
1
13
14
