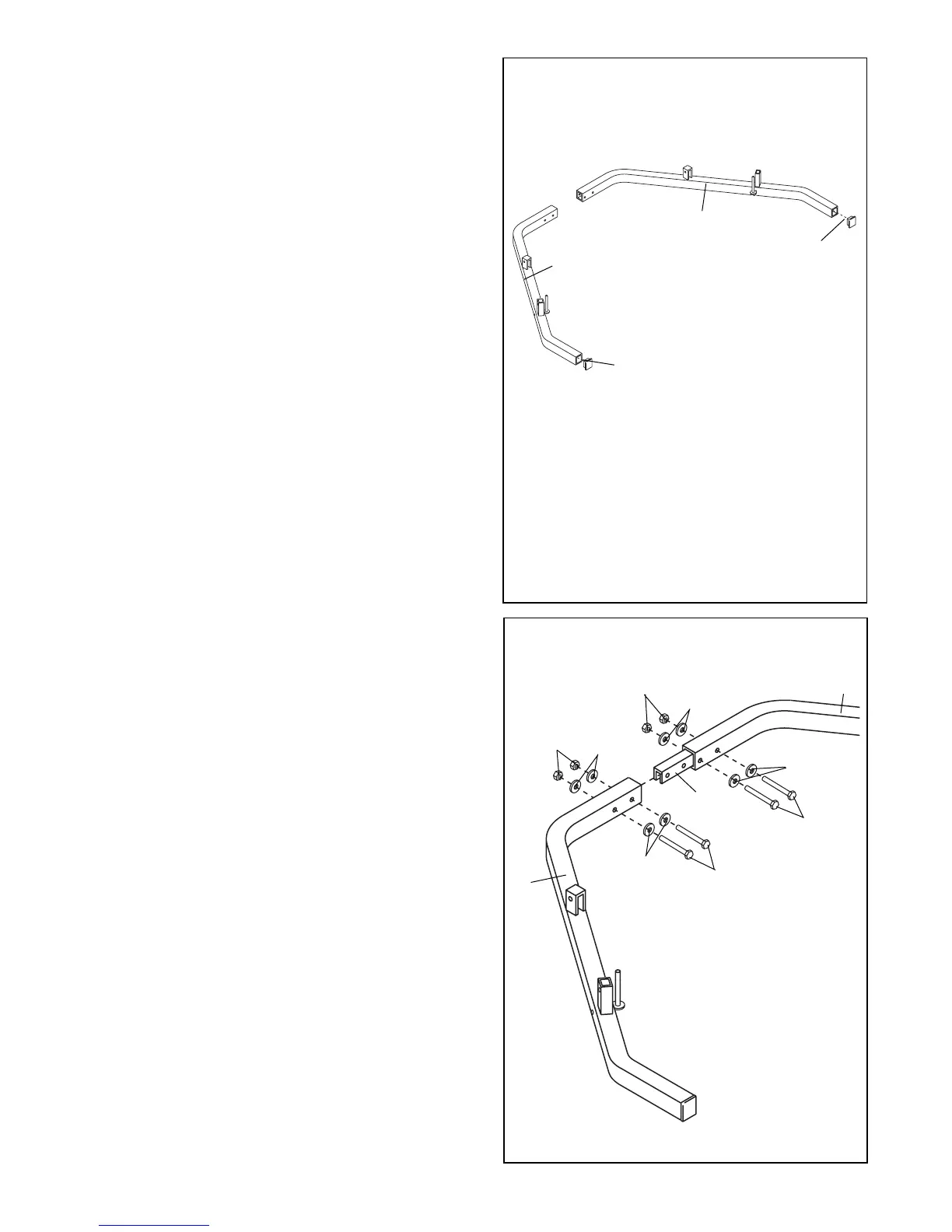

12. Attach the Joiner Bracket (27) to the Right Base (25)
with two M10 x 65mm Bolts (5), four M10 Washers
(6) and two M10 Nylon Locknuts (1). Do not tighten
the Nylon Locknuts yet.
Attach the Left Base (26) to the Joiner Bracket (27)
with two M10 x 65mm Bolts (5), four M10 Washers
(6) and two M10 Nylon Locknuts (1). Do not tighten
the Nylon Locknuts yet.
12
11. Press a 2Ó Square Inner Cap (17) into the indicated
ends of the Right and Left Base (25, 26).
11
6
5
5
6
26
17
25
27
6
6
1
1
25
17
26
