Cable Diagrams

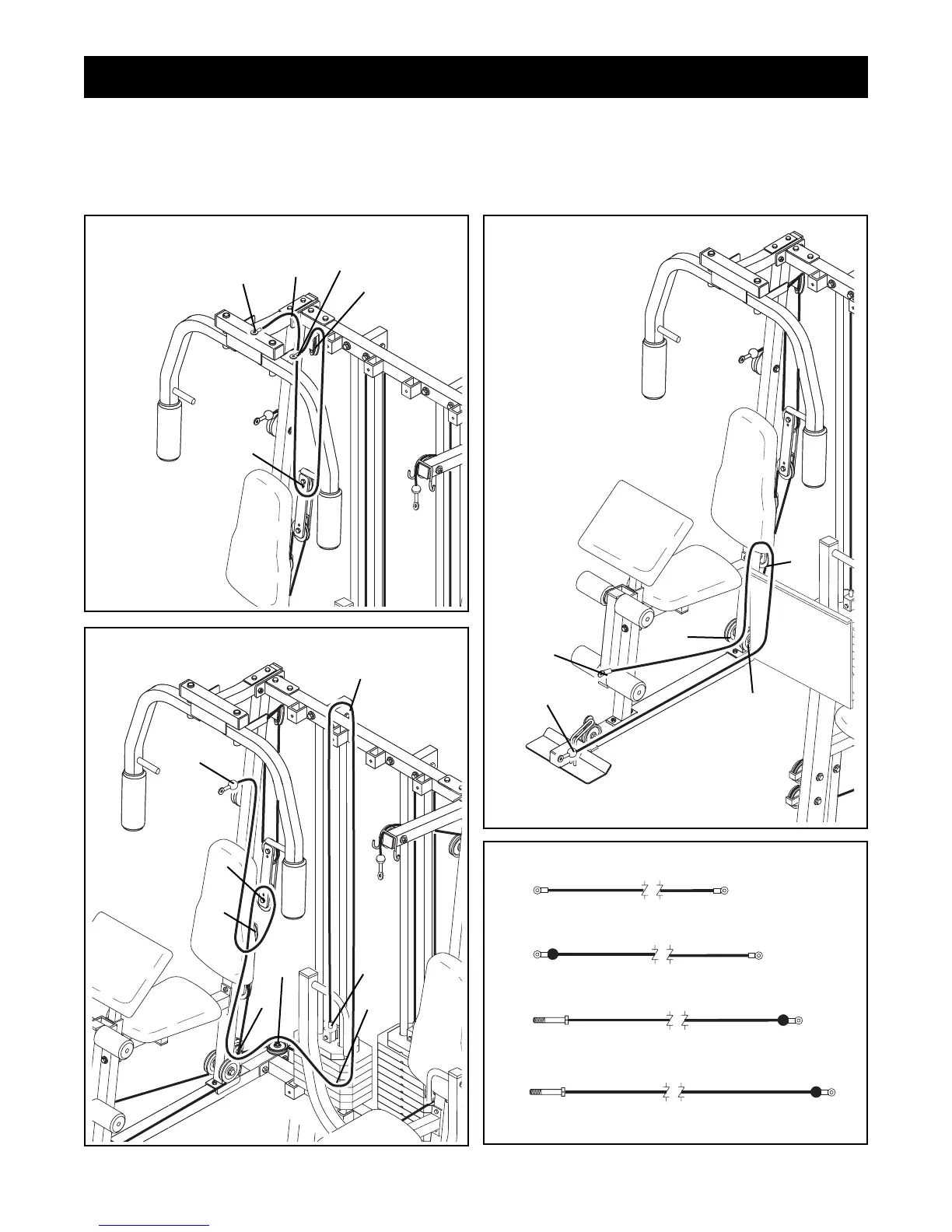

The cable diagrams below and on the next page show the proper routing of the Butterfly Cable (73), the Ab
Cable (74), the Low Cable (75), and the High Cable (72). The numbers show the correct route for each Cable.
Make sure that the Cables are routed correctly, that the pulleys move smoothly, and that the cable traps
do not touch or bind the Cables. Incorrect cable routing can damage the weight system.
Ab Cable (74)
5
6
7
8
4
3
1
2
Low Cable (75)
3
2
5
1
4
1
3
5
2
Butterfly Cable (73)
Cable ID Chart
(73)—72”
(74)—234 3/4”
(72)—369”
(75)—123 1/4”
4
