26
Bolt
68
17
71
64
74
72
97
60

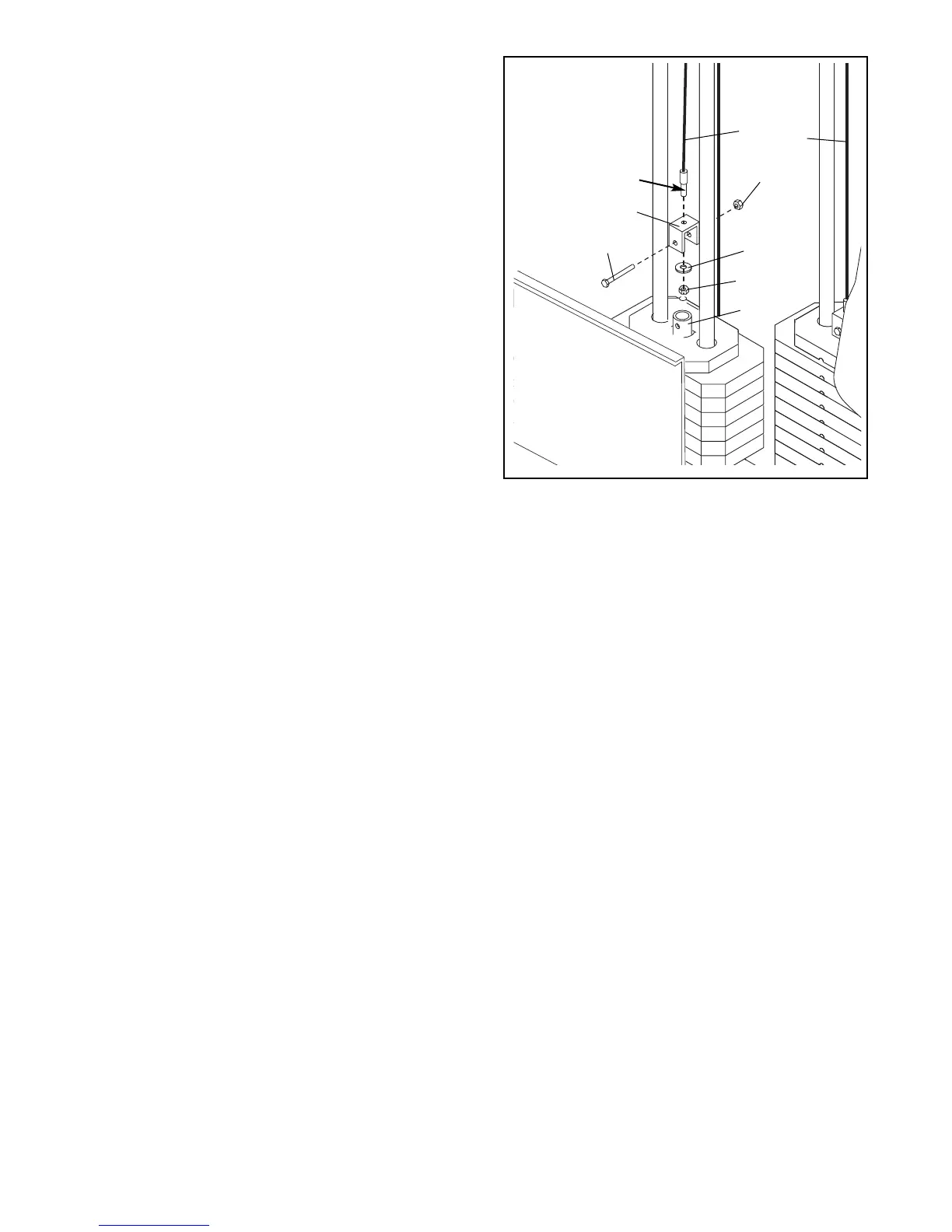

C. The bolt on the Ab Cable (74) and the High Cable
(72) that are attached to the weight stacks can also
be used to tighten the cables.
Remove the “U”-Bracket (97) from the Short Weight
Tube (17). Tighten the 1/4” Nylon Locknut (68) onto
the bolt on the end of the Ab Cable (74) two turns.
Re-attach the “U”-Bracket (97) with the 5/16” x 1 3/4”
Bolt (60) and the 5/16” Nylon Locknut (64).
The High Cable (72) can be tightened in the same
manner.
Note: The shrouds are shown removed for clarity.
The shrouds do not need to be removed to tight-
en the cables.
Note: If a cable tends to slip off the pulleys often,
the cable may have become twisted. Remove the
cable and re-install it.
If the cables need to be replaced, see Ordering
Replacement Parts on the back cover of this manual.
C
