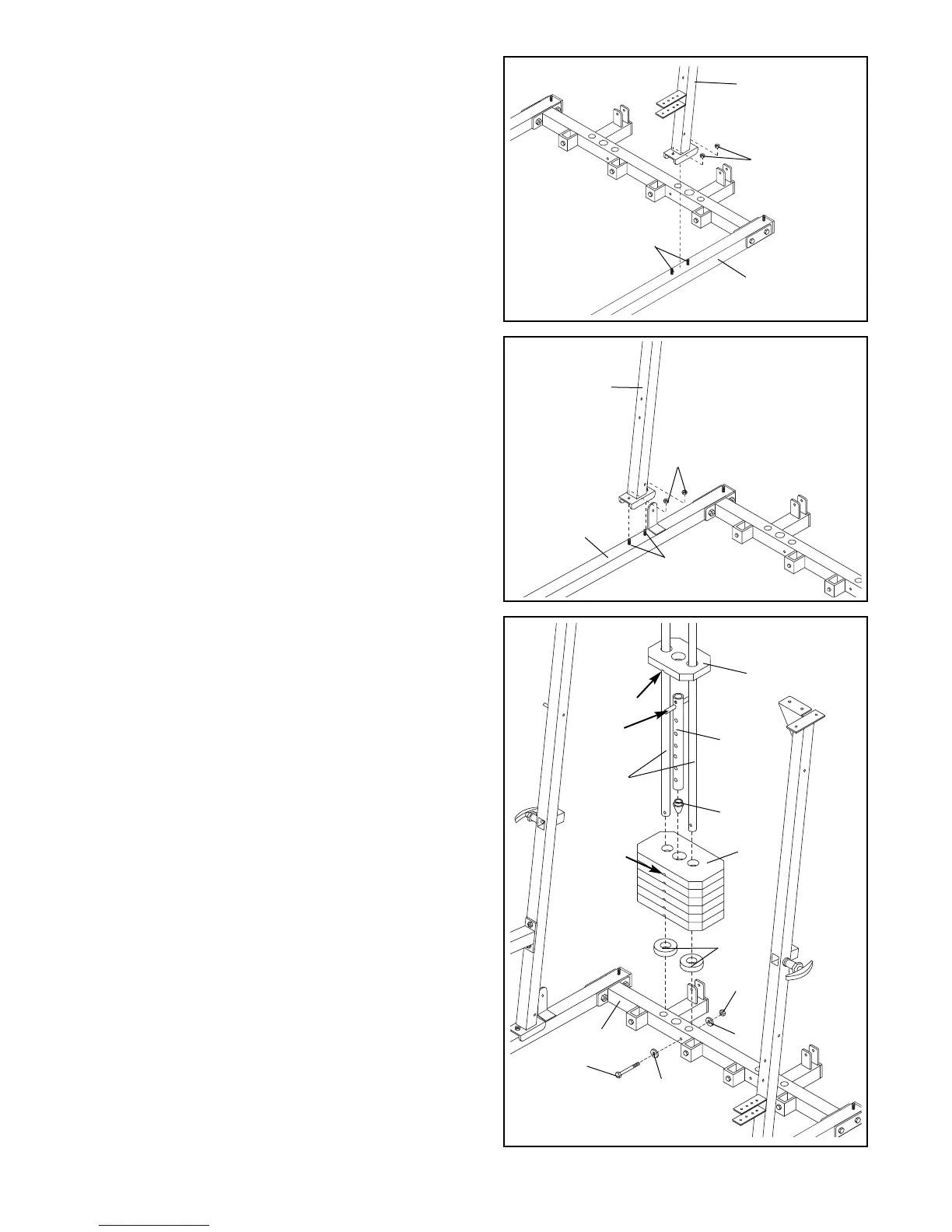

6. Place the bracket on the lower end of the Butterfly
Upright (1) over the indicated 5/16” x 2 1/2” Carriage
Bolts (92) in the Butterfly Base (4). Hand tighten two
5/16” Nylon Locknuts (64) onto the Bolts. Do not
tighten the Nylon Locknuts yet.
6
6
64
1
4
92
5. Place the bracket on the lower end of the Press
Upright (2) over the indicated 5/16” x 2 1/2” Carriage
Bolts (92) in the Press Base (6). Hand tighten two
5/16” Nylon Locknuts (64) onto the Bolts. Do not
tighten the Nylon Locknuts yet.
5
92
6
2
64
7. Place two Weight Bumpers (51) over the indicated
holes in the Weight Base (5). Slide a Weight Guide
(15) into each of the holes.
Attach the indicated Weight Guide (15) to the Weight
Base (5) with a 3/8” x 2 3/4” Bolt (46), two 3/8” Flat
Washers (48), and a 3/8” Nylon Locknut (50).
Slide six Weights (21) onto the Weight Guides (15).
Make sure the Weights are turned so the pin
grooves are on the bottom.
Identify the Short Weight Tube (17), which has six
holes in it. Press a Weight Tube Bumper (18) into the
lower end of the Short Weight Tube. Slide the Weight
Tube into the Weights (21).
Slide a Top Weight (16) onto the Weight Guides (15).
Make sure the Top Weight is turned so the groove
fits over the pin on the Short Weight Tube (17).
51
Pin
Grooves
46
48
48
50
18
21
17
16
15
5
7
Groove
Pin
