ProForm PFSY74490 User Manual

8

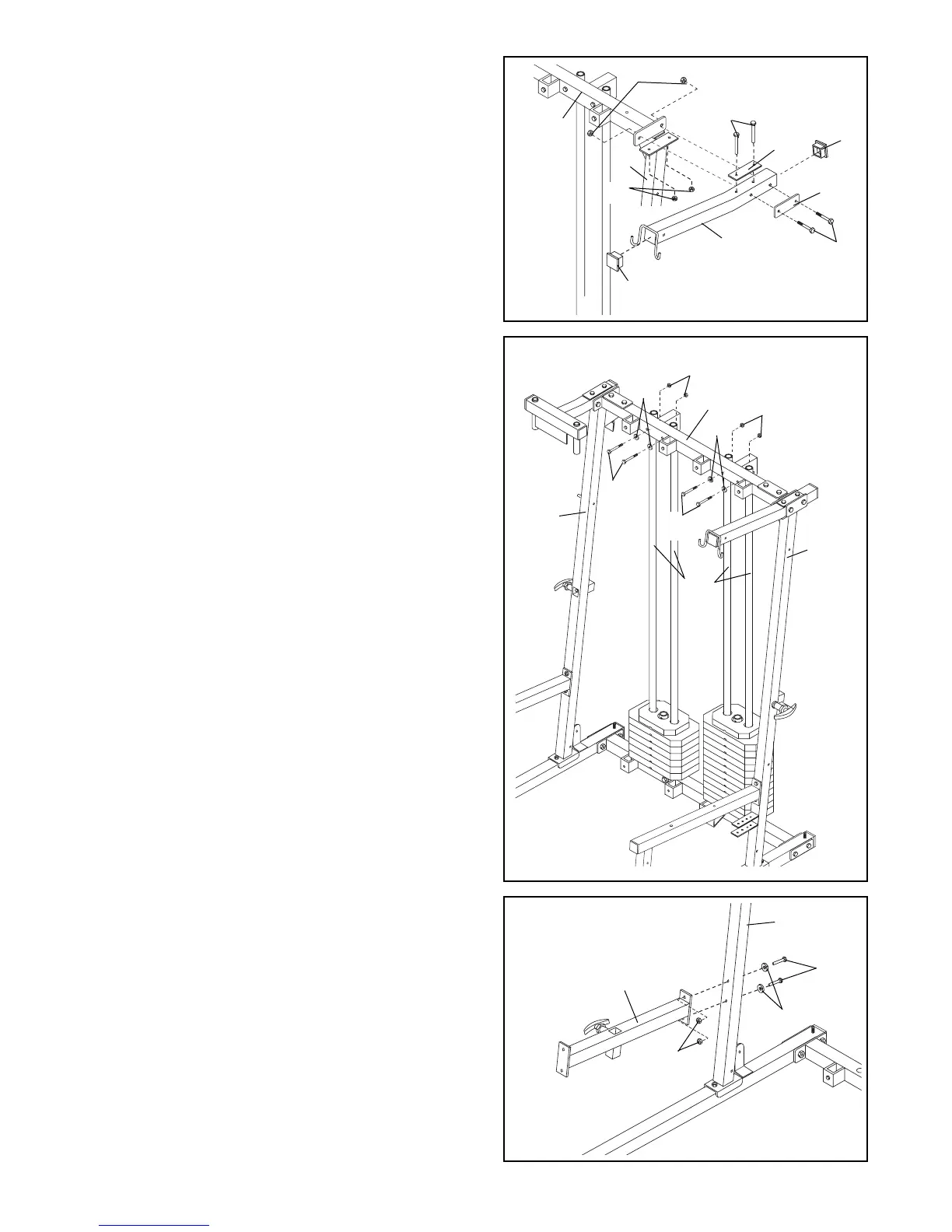

13. Attach the Butterfly Seat Frame (14) to the Butterfly
Upright (1) with two 5/16” x 2 3/4” Bolts (89), two
5/16” Washers (36), and two 5/16” Nylon Locknuts
(64). Do not tighten the Nylon Locknuts yet.
13
89
36
1
14
64
12. Attach the Weight Guides (15) to the Weight Top
Frame (66) with four 3/8” x 3 3/4” Bolts (59), four 3/8”
Flat Washers (48), and four 3/8” Nylon Locknuts (50).
Do not overtighten the Nylon Locknuts.
50
48
66
48
50
2
15
59
1
12
59
11. Press a 2” Square Inner Cap (28) into each end of
the Press Top Frame (9).
Attach the Press Top Frame (9) to the bracket on the
Press Upright (2) and the Weight Top Frame (66) with
four 5/16” x 2 3/4” Bolts (89), two Support Plates (94),
and four 5/16” Nylon Locknuts (64).
11
94
89
94
9
89
28
64
2
66
64
28
