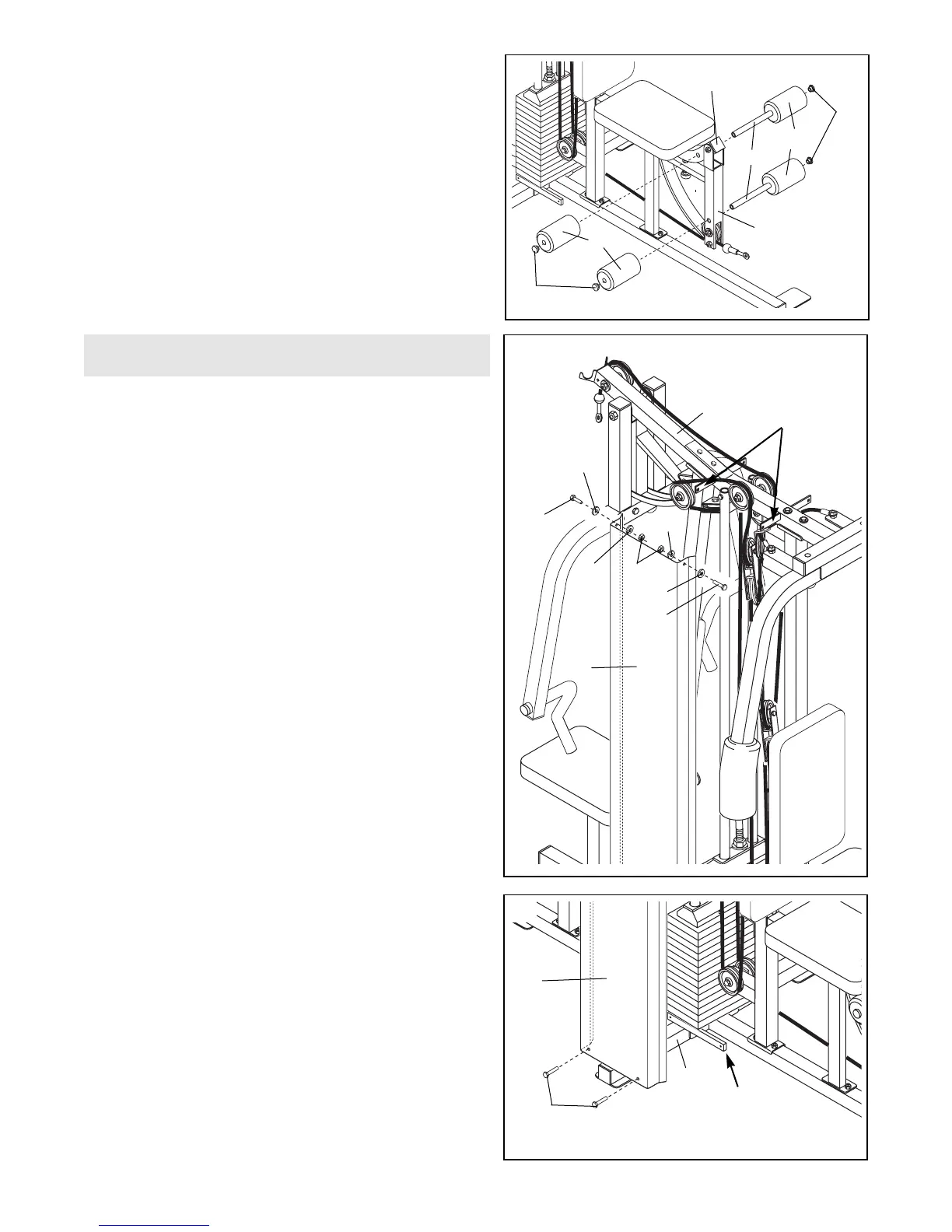

41. Press two 3/4Ó Round Inner Caps (34) into each Pad
Tube (28).
Insert one Pad Tube (28) into the Butterfly Seat
Frame (11). Slide a Foam Roller (30) onto each end
of the Pad Tube.
Insert the other Pad Tube (28) into the Leg Lever
(29). Slide a Foam Roller (30) onto each end of the
Pad Tube.
41
34
30
28
30
34
11
29
Miscellaneous Assembly
42. Identify the Left Shroud (96) which is the one with a
large chart showing a number of exercises.
Attach the Left Shroud (96) to the indicated brackets
on the Top Frame (1) with two #10 x 3/4Ó Black
Screws (91), two #10 Flat Washers (92), two #10
Lock Washers (94) and two #10 Plain Nuts (93).
Do not tighten the Plain Nuts yet.
42
94
92
91
93
96
1
91
Bracket
92
94
43. Attach the Left Shroud (96) to the indicated bracket
on the Stabilizer (5) with two #8 x 3/4Ó Tek Screws
(95).
Go back and tighten the Plain Nuts used in the previ-
ous step.
Fasten the Right Shroud (56, not shown) on the other
side of the unit in the same manner.
43
95
96
5
Bracket
To Next Page
