Cable Diagram

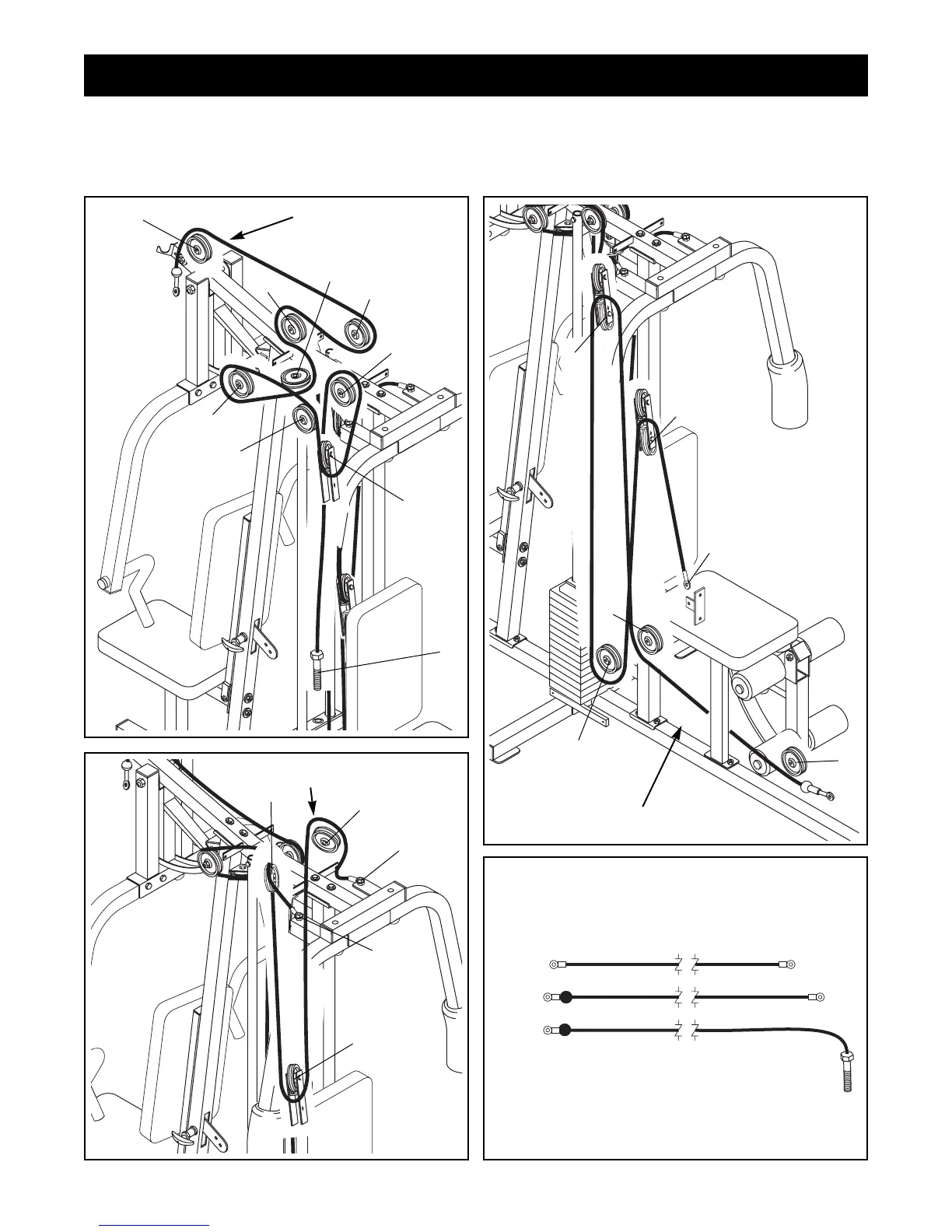

The Cable Diagrams below show the proper routing of the Butterfly Cable (97), the High Cable (73) and the Low
Cable (72). The numbers show the correct route for each cable. Make sure the Cables are routed correctly,
that the Pulleys move smoothly and that the Cable Traps do not touch or bind the Cables. Incorrect
cable routing can damage the weight system.
High Cable (73)
1
3
2
7
6
5
8
4
9
Low Cable (72)
1
3
2
6
5
4
1
2
3
4
5
Butterfly Cable (97)
Cable ID Chart
97
72
73
