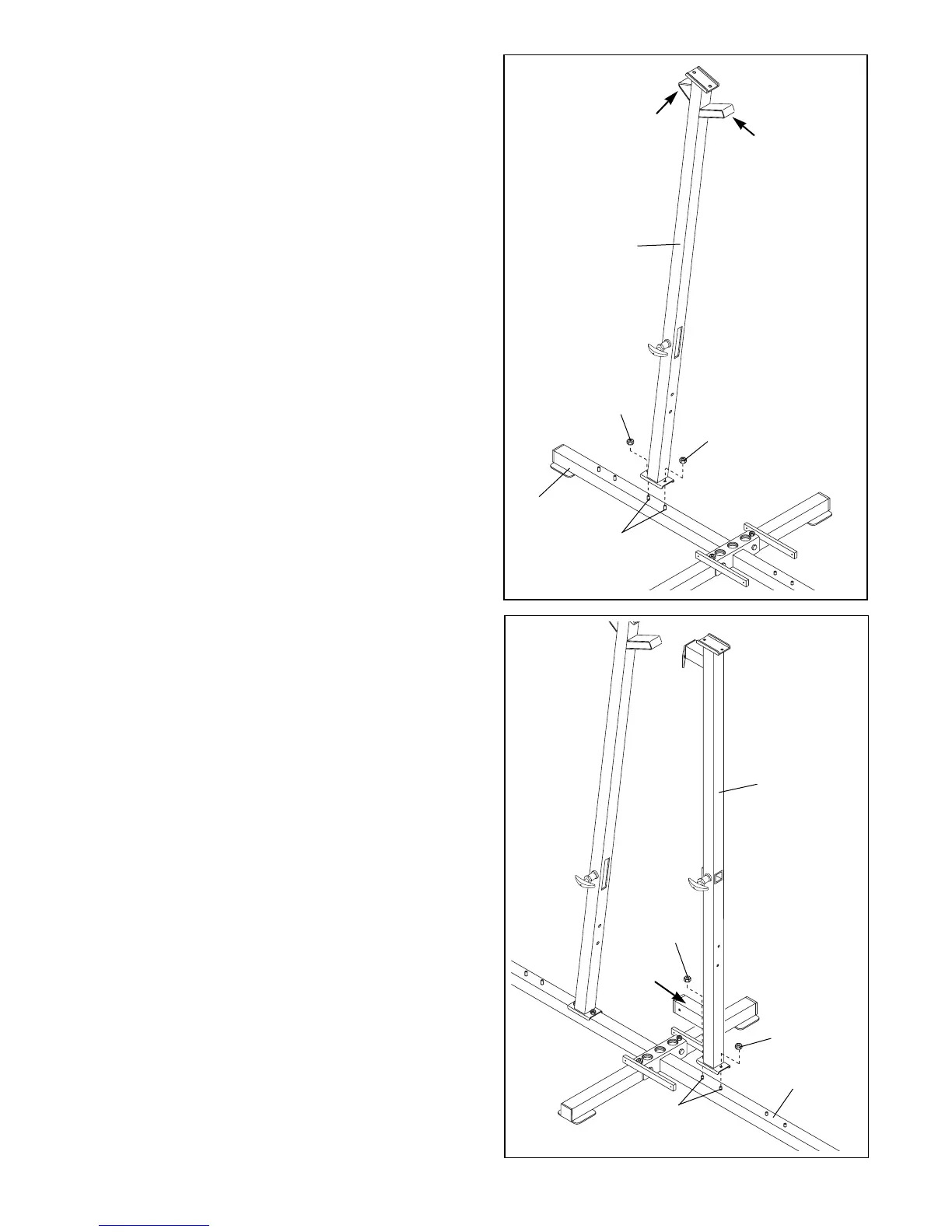

5. Slide the Press Upright (3) onto the indicated 5/16Ó x
2 1/2Ó Carriage Bolts (22) in the Press Base (4).
Tighten a 5/16Ó Nylon Locknut (68) onto each
Carriage Bolt.
Note: The Press Upright (3) must be leaning towards
the center of the unit with the two brackets oriented
as shown.
5
6
6. Slide the Butterfly Upright (2) onto the indicated 5/16Ó
x 2 1/2Ó Carriage Bolts (22) in the Butterfly Base (8).
Hand tighten a 5/16Ó Nylon Locknut (68) onto each
Carriage Bolt.
Do not tighten the Nylon Locknuts yet.
Note: The Butterfly Upright (2) must be oriented as
shown with the bracket pointed towards the center of
the unit.
6
68
68
3
Bracket
Bracket
Bracket
4
22
2
8
22
68
68
To Next Page
