6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.

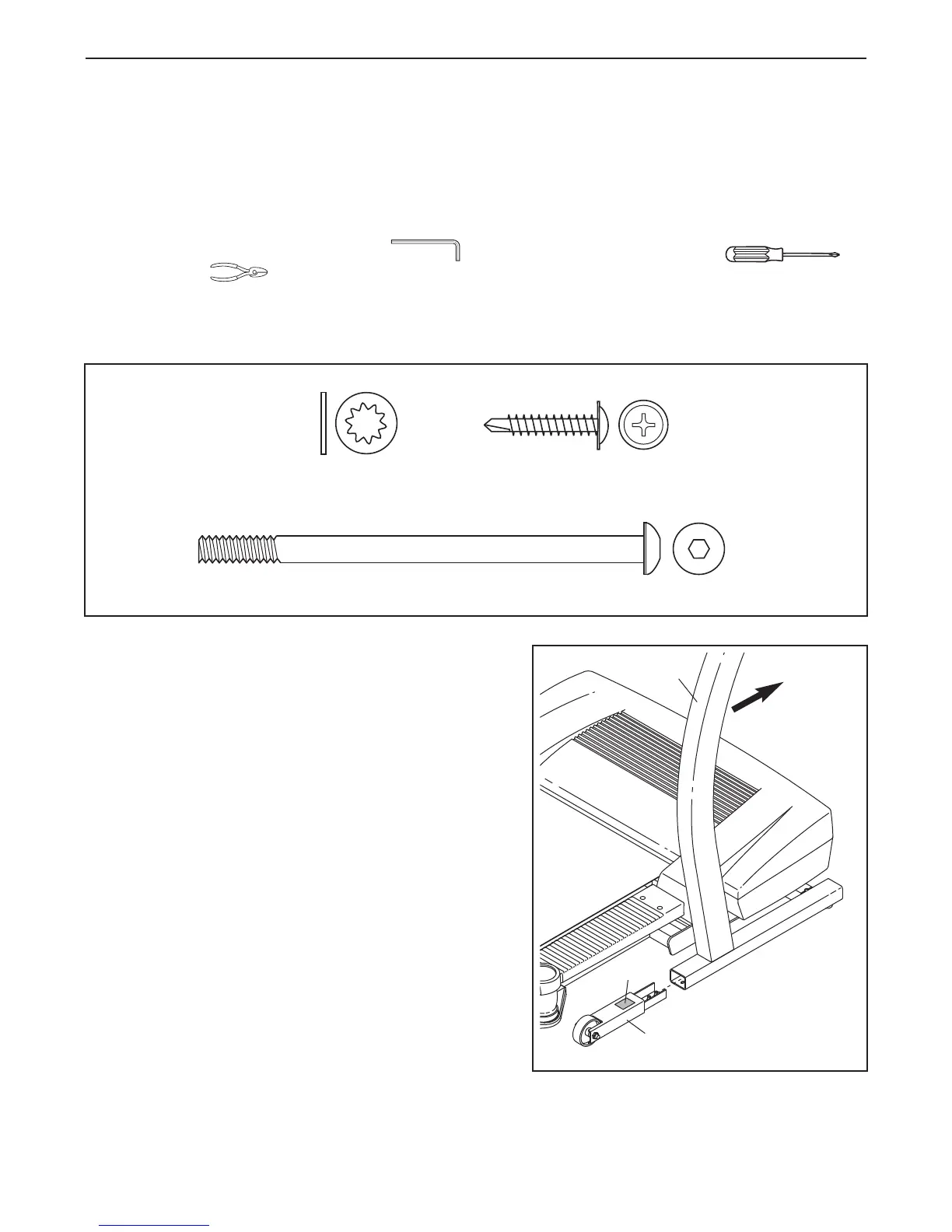

Assembly requires the included allen wrenches and your own phillips screwdriver
and wire cutters .
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the
Uprights (97) to the position shown. Insert one of the
Extension Legs (92) into the base of the Uprights. (Note:
It may be helpful to tip the Uprights forward as you insert
the Extension Leg.) Make sure that the Caution Decal
(91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same
way.
92
97
91
1
Internal Star
Washer (77)–4
1” Tek Screw (80)–6
Upright Bolt (76)–4
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.
