11
4
63
62
13
94
13
90
7
13
81

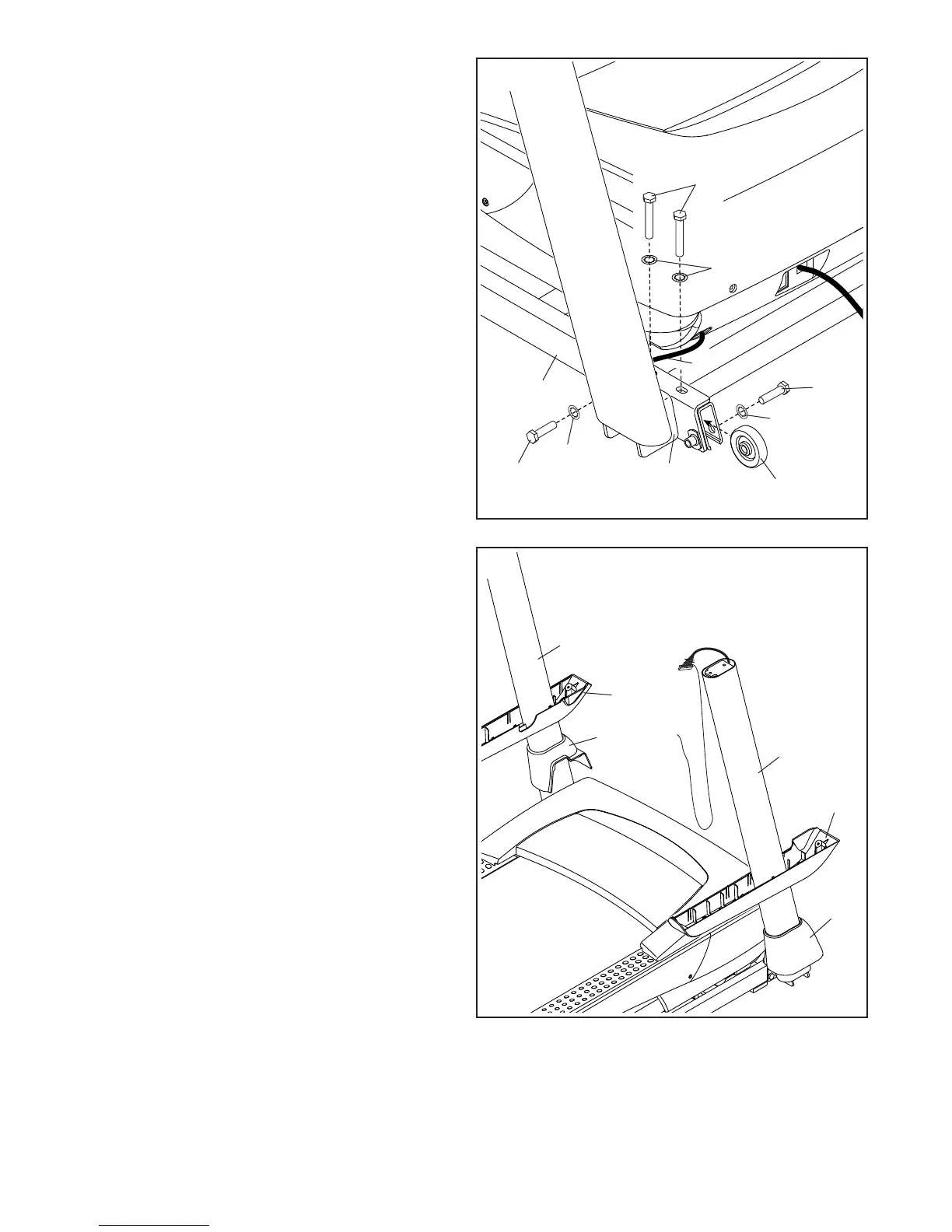

5. Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
Next, identify the Right and Left Bottom Handrail
Covers (84, 85). Slide the Left Bottom Handrail
Cover onto the Left Upright (89), and slide the
Right Bottom Handrail Cover onto the Right
Upright (90).
82
85
90
83
84
89
5
4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright Wire
(81).
Next, hold a Wheel (97) inside the Base (94),
and insert a 3/8" x 1 3/4" Screw (62) with a
3/8" Star Washer (13) through the Base and
the Wheel as shown; do not fully tighten the
Screw yet.
Insert two 3/8" x 2 1/4" Screws (7) with two
3/8" Star Washers (13) and a 3/8" x 1 1/4"
Screw (63) with a 3/8" Star Washer (13) into the
bracket at the bottom of the Right Upright (90),
and partially tighten the three Screws into the
Base (94); do not fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
97
