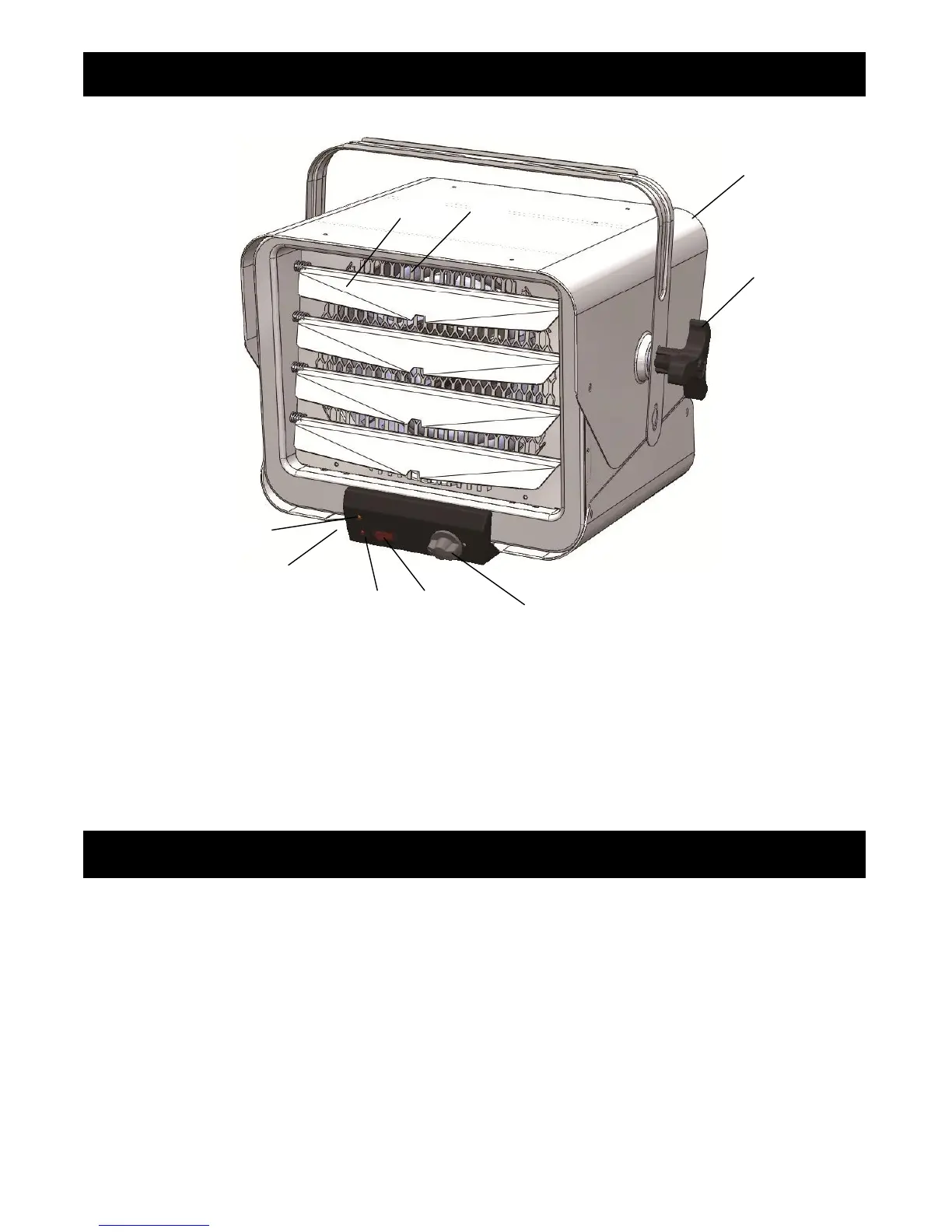

A. Upper Enclosure
B. Tilt adjustable knob
C. Front Exhaust Grill
D. Louver for air direction
E. Control panel
F. Power Indicator
G. Alarm LED
H. Rocker Switch (High/Low select)
I. Temperature Setting Knob
WARNING: All wiring must be installed by a certified electrician according to the electrical safety.
The ceiling heater must be grounded in accordance with all national and local building codes.
All Wiring procedures and connections shall be in accordance with the national and local
codes having jurisdiction.
Before installation:
Disconnect the main supply connection.
Supply cables shall be 10 AWG (5.3 mm
2
) copper wires
The heater must be connected to individual branch circuit protected by 35 Amp circuit breaker only.
Supply cables must be equipped with a dual pole circuit breaker rating at least 240V 35A/pole as
main cutoff switch of power connection to the heater.
