ProGear 225 - Adjustments; Pedal Strap Adjustment

17

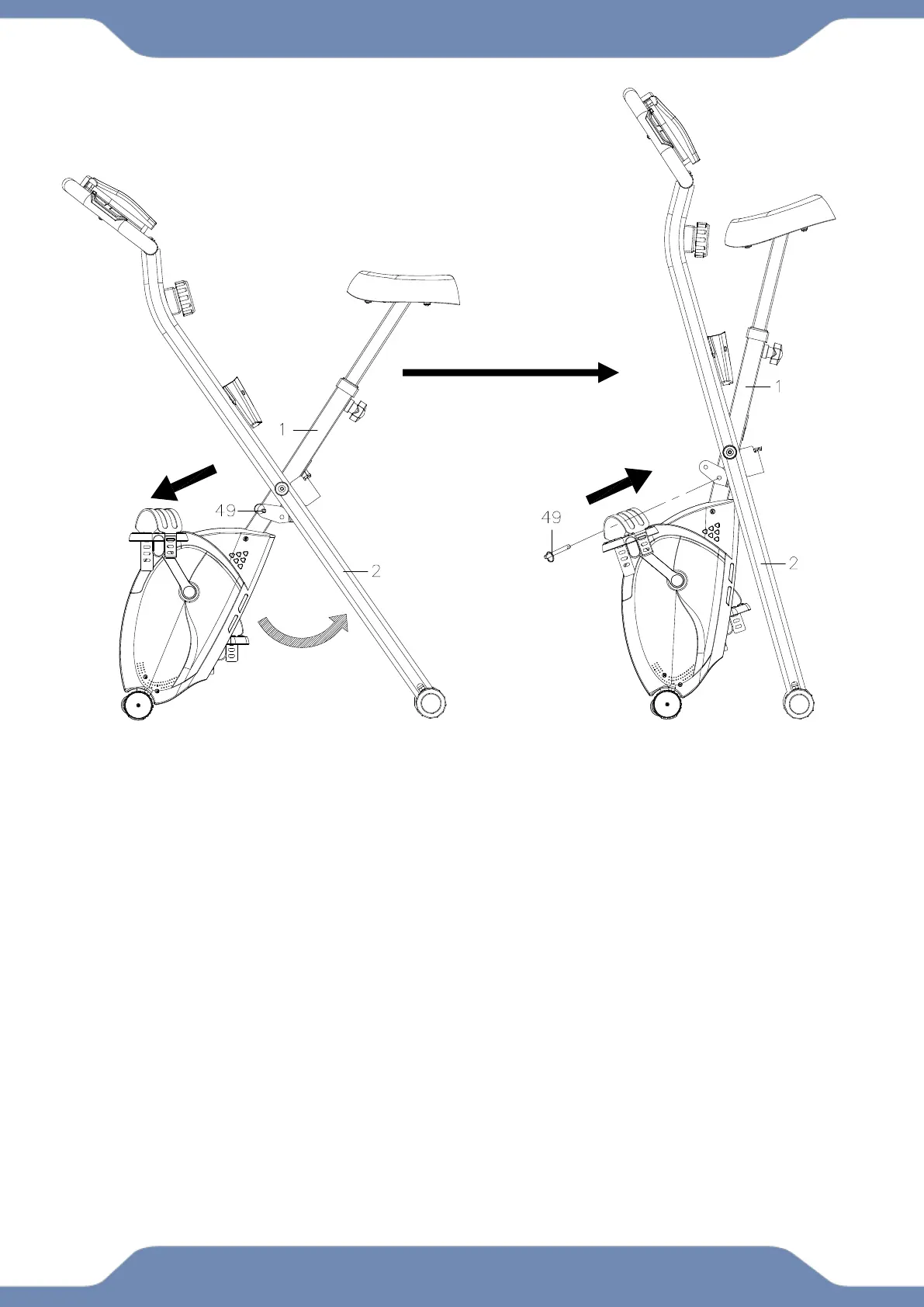

For your convenience, the bike can be folded up for storage.
1. Remove the Safety Pin (49) from the upper pin hole of the bike.
2. Fold the Rear Frame (2) and the Front Frame (1) together until the lower pin
holes are aligned.
3. Re-insert the Safety Pin (49) into the lower pin hole to secure the frames.
STORAGE
