10
Step 1

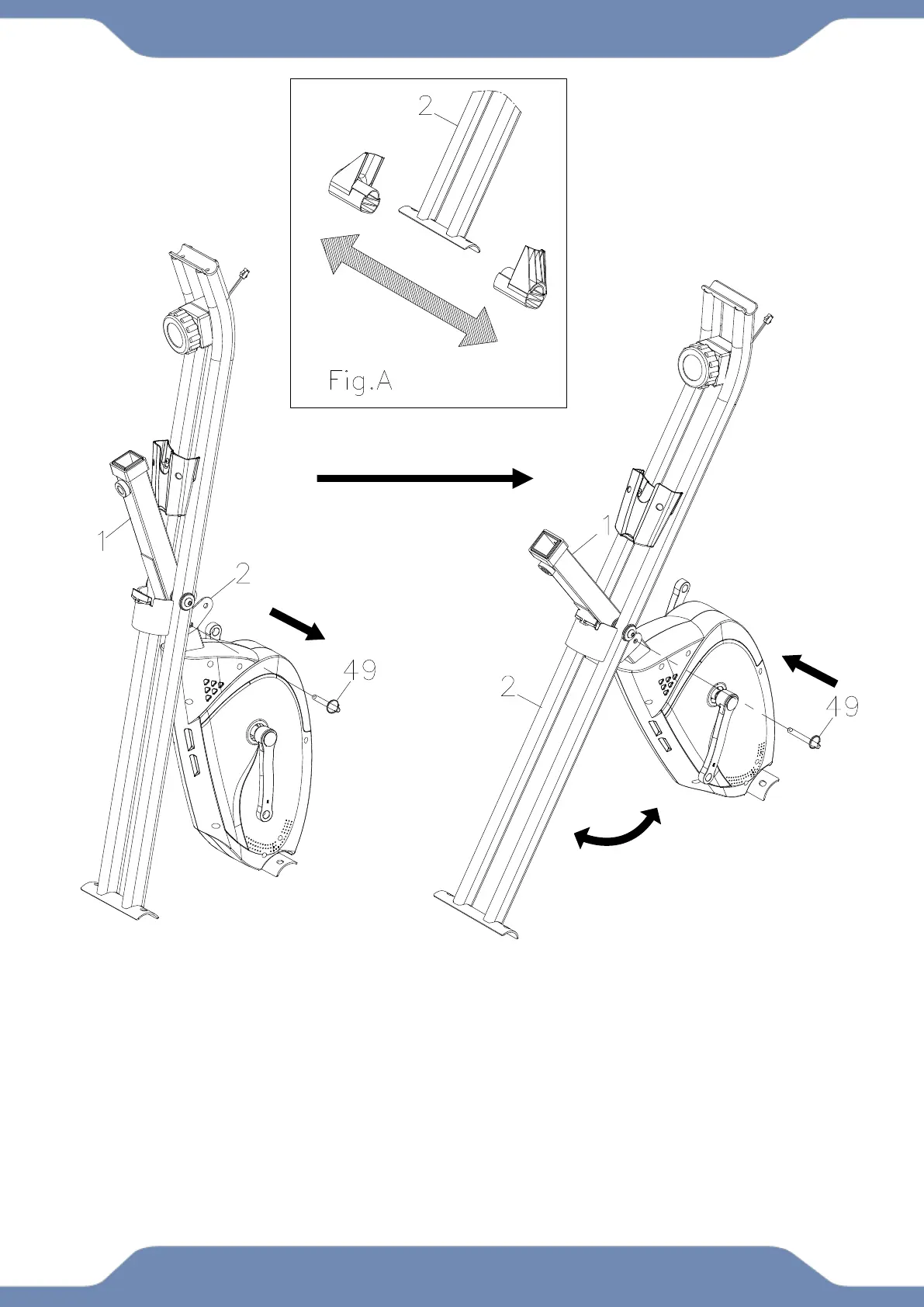

1A. Remove the Safety Pin (49) from the Rear Frame (2). Stand up the base of the Rear & Front
Frames (2, 1) by pulling them apart from each other. Align the upper pin holes on both frames and
then insert the Safety Pin (49) into the uppers holes of the frames to lock the frames in place.
1B. Remove the plastic protective caps from the Rear Frame (2). See Fig.A.
NOTE: Discard these part after removing, they are ONLY need to protect the frame during
shipping.
