11

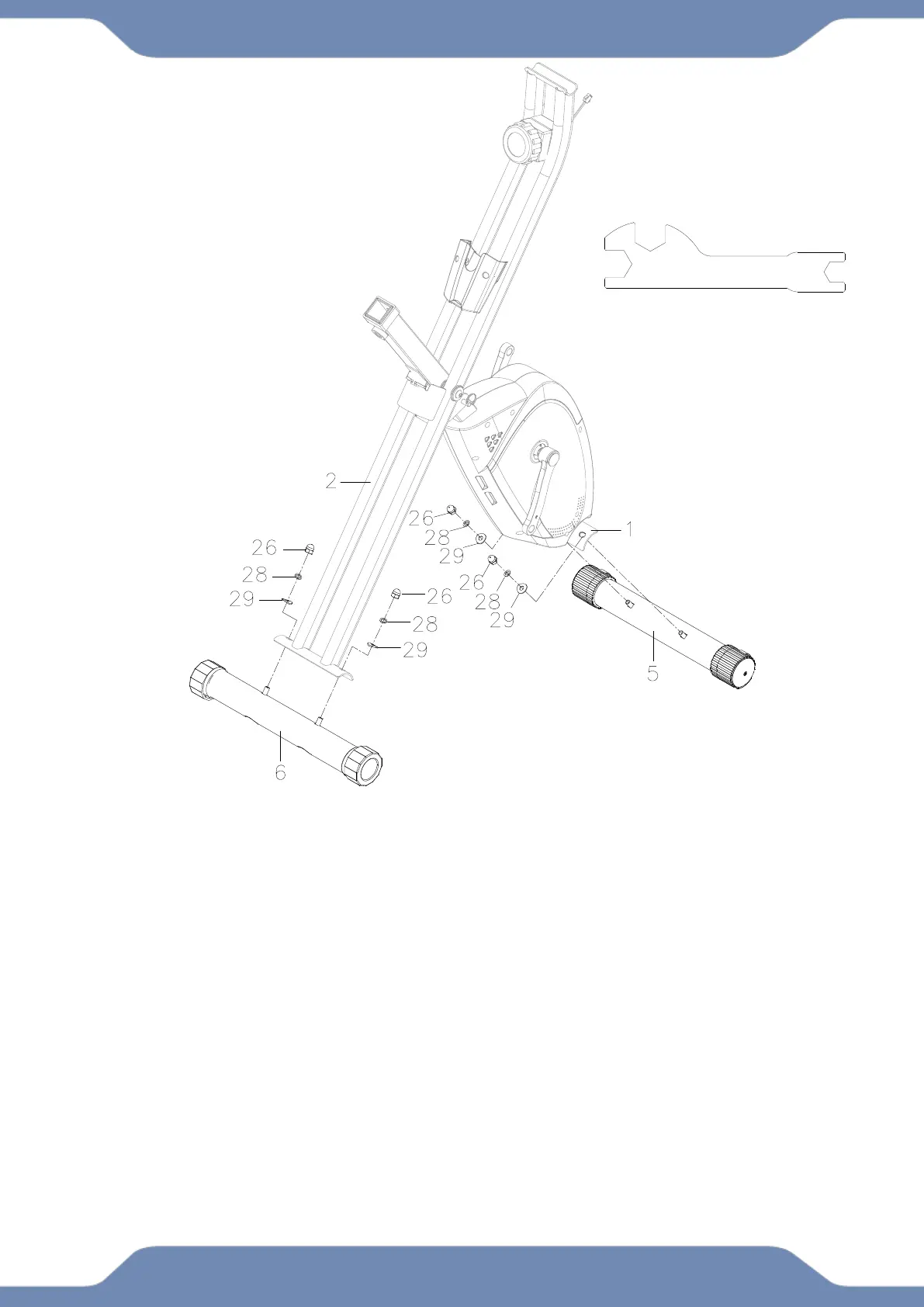

Step 2
2A. Remove four Cap Nuts (26), four Spring Washers (28), four Curved Washers (29) from the
Front Stabilizer (5) and the Rear Stabilizer (6).
2B. Attach the Front Stabilizer (5) with the transport wheels onto the Front Frame (1) with two
Cap Nuts (26), two Spring Washers (28), and two Curved Washers (29). Tighten the Cap Nut
(26) with the 13- 19mm Wrench provided.
2C. Attach the Rear Stabilizer (6) onto the Rear Frame (2) with two Cap Nuts (26), two Spring
Washers (28), two Curve Washers (29). Tighten the nuts with the 13- 19mm Wrench provided.
