same units where it stopped. There is a program-
mable delay for this detection.
• PS Program start
. A program will be activated by
external order when this input is joined to the
common, the programmed delay has gone by and
the clock has changed minute. The input can not
start again until the program or its sequence of
programs has finished.
4.2.4. Connecting outlets

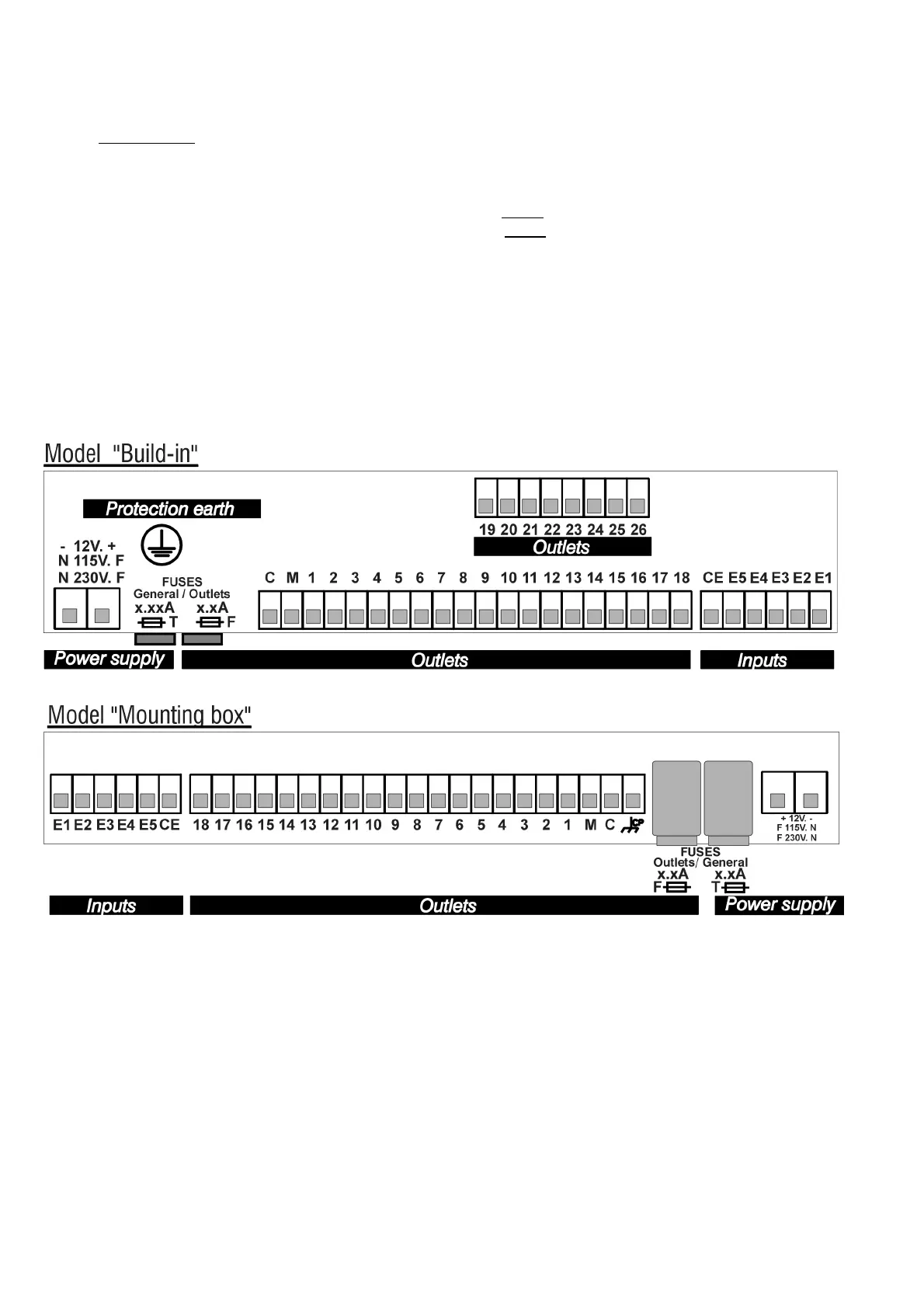

Connect the solenoids, relays, etc. between the
common of outlets “C” and the corresponding outlet.
Do not surpass the charge per outlet and com-
mon. In case of more intensity, insert external re-lays.
The “outlet fuse” protects from overloads and
short-circuits. To change it, just half turn the cover of
the fuse holder, take it out and replace it with a similar
one.
The outlets are isolated from the interior circuitry
by relays and protected by a varistor in each one.
• C Outlet
. Outlet common.
• M Outlet
. It belongs to the pump or general valve,
and it is activated whenever an irrigation program
is being carried out.
• Outlets 1 to 6, 12, 18, 26, according to model.
Everyone of them corresponds to an irrigation
sector or a general outlet such as fertilizers, mix-
ers, fertilizer pump and filters, which are automati-
cally assigned to an outlet number in the ”FUNC-
TION” - “PARAMETERS” - “VARIOUS” section.
