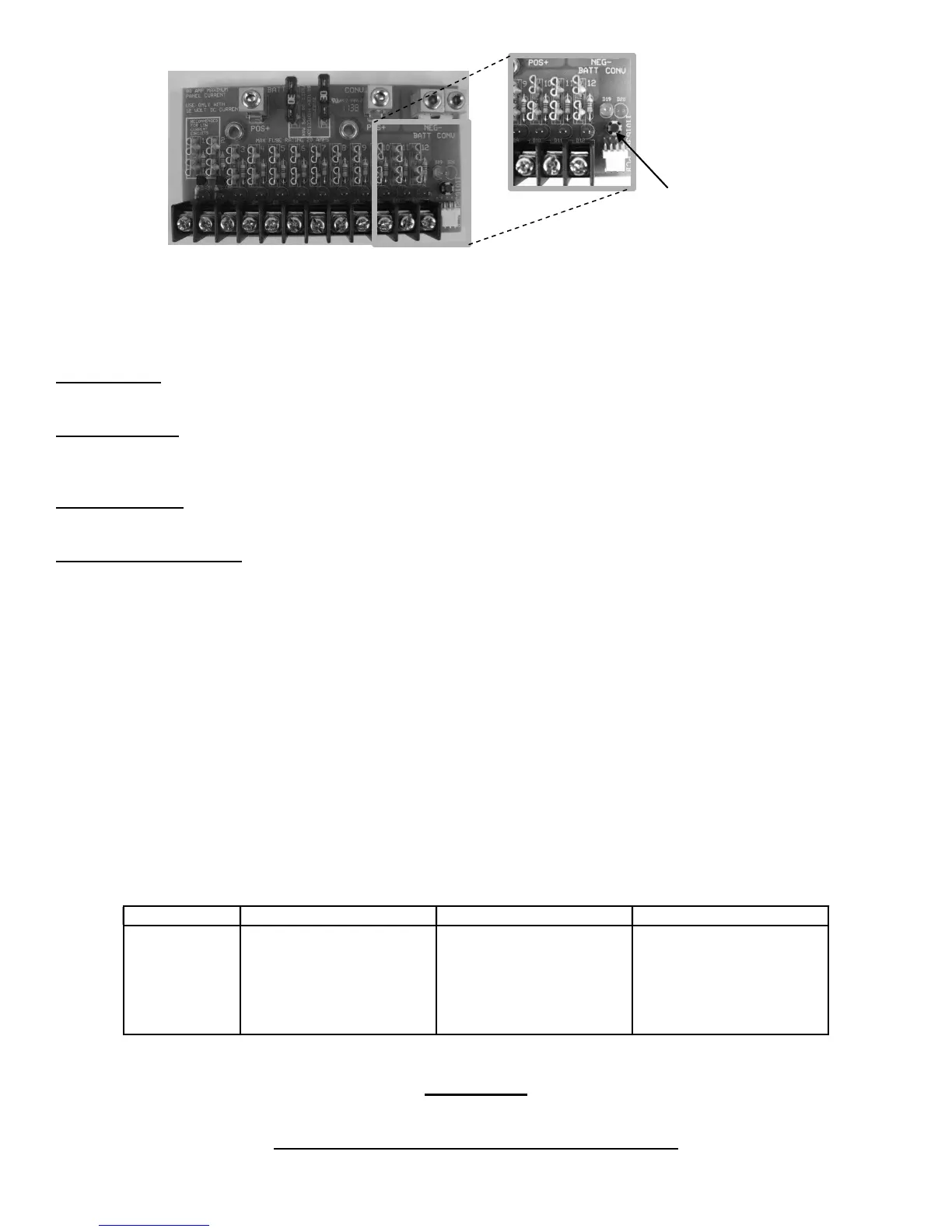

Wizard Mode Button
The Charge Wizard Operation:
While the built-in Charge Wizard
automatically determines which operating mode is best suited to recharge or maintain optimum
battery condition, the Wizard Mode Button allows for manual override and has an indicator light to indicate the mode of
operation.
(Located on DC board, included)
BOOST MODE – Indicated by green LED remaining on. The output voltage is 14.4VDC to rapidly recharge the battery up to
90% of
full charge.
NORMAL MODE – When the battery is between 50% and 90% charged, the green LED will flash once per second. When
the battery
has reached 90% of full charge, the green LED will flash 2 - 3 times per second. In this mode the output voltage is
13.6VDC and the
converter is safely completing the charge of the battery.
STORAGE MODE – Indicated by green LED flashing every 6 - 8 seconds. In this mode the output voltage has been lowered
to
13.2VDC, the RV battery is fully charged and the converter is maintaining the charge.
WIZARD MODE BUTTON - The manual button has been provided to allow the operator to temporarily override the converter (not
recommended) or to verify the converter is operating properly. For manual operation, Press and Hold the button.
The indicator light
will soon remain “ON” indicating Boost Mode. Continue to hold the button and the light will blink rapidly
indicating the converter is in
the Normal Mode. Continue to hold the button until the light blinks slowly indicating the converter is now in the Storage Mode. After
the manual button is released the converter will stay in the selected mode. When the battery charge status changes, the converter will
return to the automatic mode of operation to prevent damage to the battery.
- All times and voltages provided above are approximate. -
- LI models DO NOT have Charge Wizard functionality -
REVERSE BATTERY PROTECTION CIRCUIT
If a battery is accidentally hooked up backwards, the converter will be protected. Easily accessible ATC type fuses will blow
when a
battery is connected in reverse. All PD4600 Series Converter Replacement units require (2) 30AMP fuses, included, to
distribute DC
power. Replace with same type and rating.
THE DC SECTION:
The DC panel features 12 positions, rated for up to 20A, for accessories including ten low-to-full current rated branches. These can be
used for lower current devices such as smoke and CO detectors. Each branch has a red LED light that indicates which
fuse has blown.
Model
PD4635 (LI) PD4645 (LI) PD4655 (LI)
Specifications
Input: 105-130 VAC
50/60 Hz
550 Watts
Output: 13.6 VDC (14.6 VDC)
35 Amps
Weight: 9 lbs
Input: 105-130 VAC
50/60 Hz
725 Watts
Output: 13.6 VDC (14.6 VDC)
45 Amps
Weight: 9 lbs
Input: 105-130 VAC
50/60 Hz
950 Watts
Output: 13.6 VDC (14.6 VDC)
55 Amps
Weight: 10 lbs
(Specifications subject to change without notice)
CAUTION
The 4600LI series converter/chargers are designed to recharge lithium iron
phosphate (LiFePO4) batteries only.
DO NOT USE TO RECHARGE LEAD/ACID BATTERIES!
