Progressive Dynamics PD9100 SERIES User Manual

INPUT/OUTPUT SPECIFICATIONS
PD9130
Input: 105-130 VAC 60 Hz
500 Watts
Output: 13.6 VDC, 30 Amps
Dimensions: 4.5H x 7L x 7.25W
Weight: 4lbs
PD9140A
Input: 105-130 VAC 60 Hz
600 Watts
Output: 13.6 VDC, 40 Amps
Dimensions: 4.5H x 8.625L x 7.25W
Weight: 4.5lbs
PD9145A
Input: 105-130 VAC 60 Hz
725 Watts
Output: 13.6 VDC, 45 Amps
Dimensions: 4.5H x 8.625L x 7.25W
Weight: 4.5lbs
PD9155
Input: 105-130 VAC 60 Hz
900 Watts
Output: 13.6 VDC, 55 Amps
Dimensions: 4.5H x 10L x 7.25W
Weight: 5.4lbs
PD9160A/PD9170A
Input: 105-130 VAC 60 Hz
1000 Watts/1250 Watts
Output: 13.6 VDC, 60/70 Amps
Dimensions: 3.6H x 9.15L x 9W
Weight: 5.8lbs
PD9180
Input: 105-130 VAC 60 Hz
1300 Watts
Output: 13.6 VDC, 80 Amps
Dimensions: 3.6H x 11.65L x 9W
Weight: 7.5lbs

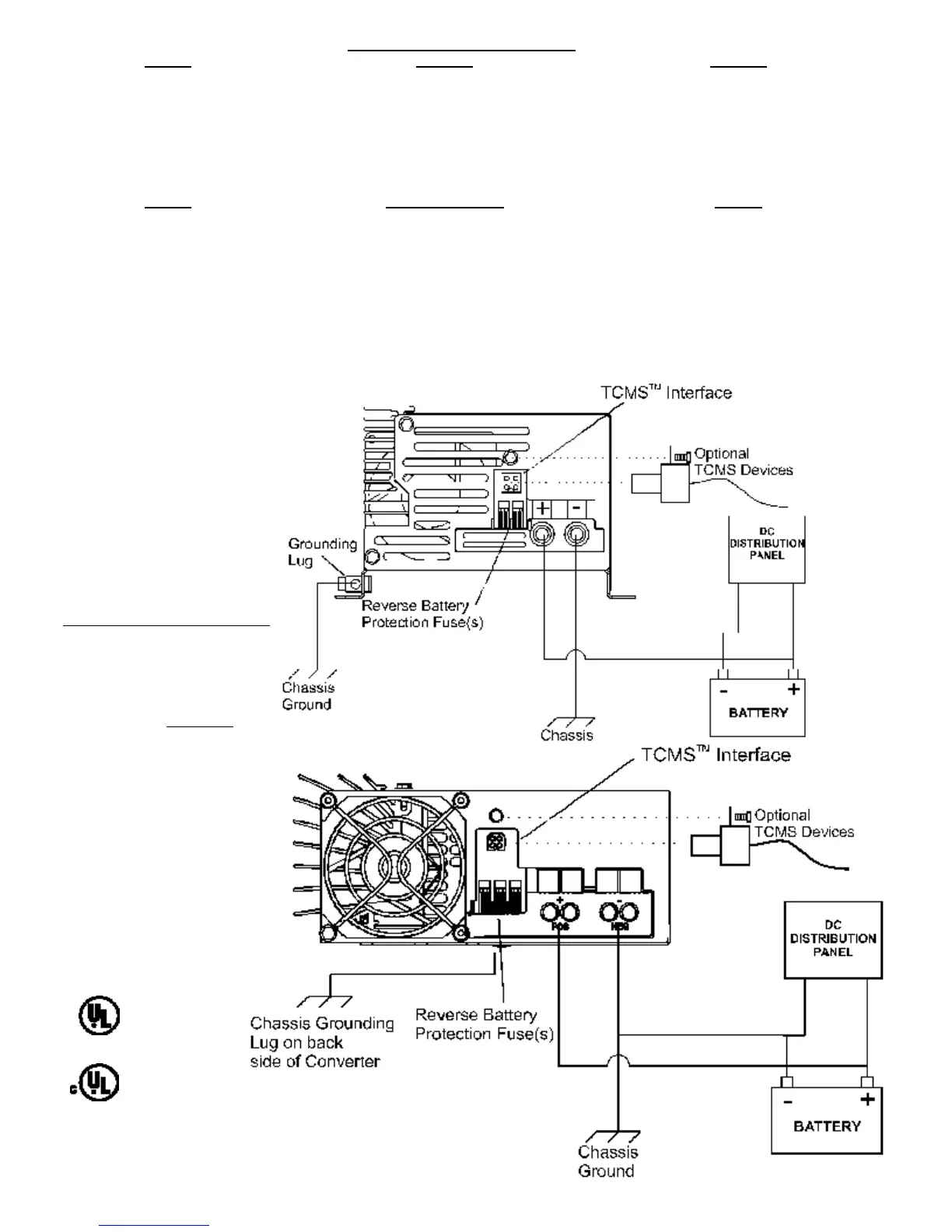

CAUTION RISK OF FIRE:
Chassis bonding wire must be
a separate wire ran directly to
chassis from the Grounding
Lug provided on the side of
the converter. DO NOT
connect Output negative
to chassis using the same
wire.
