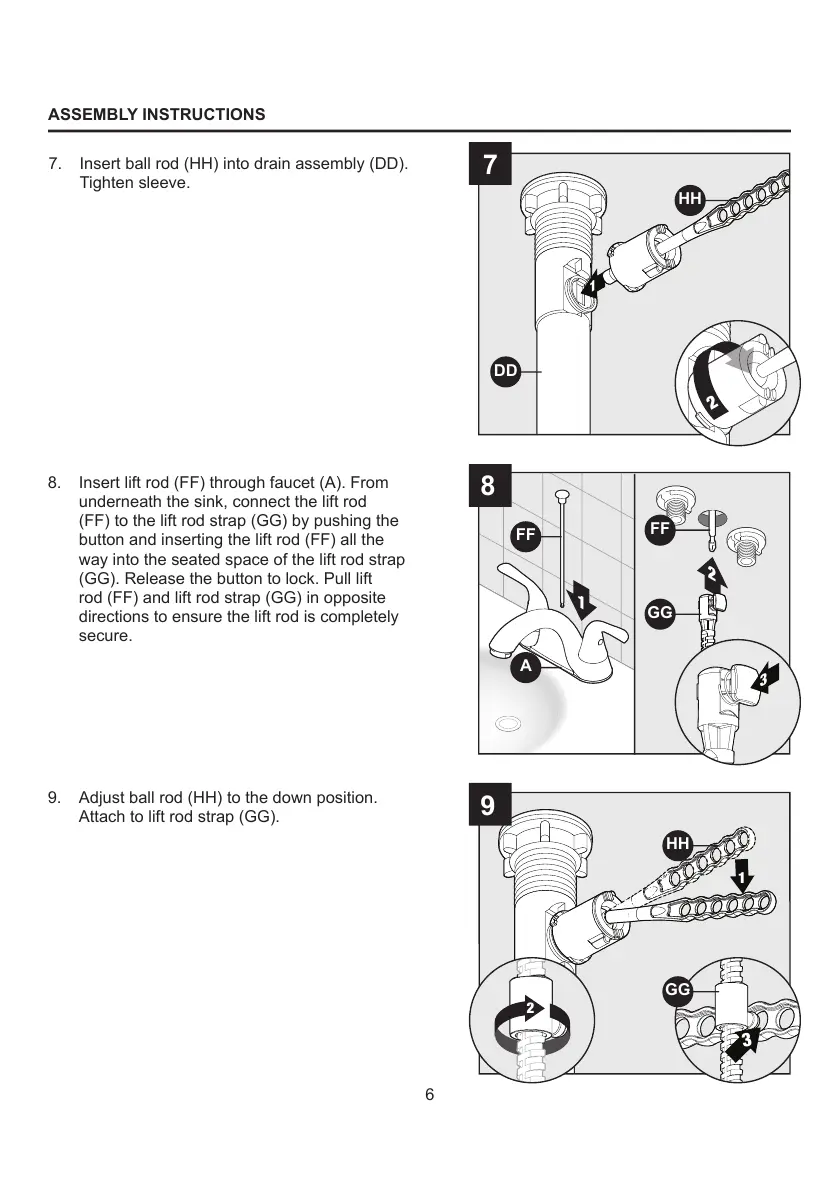

8. Insert lift rod (FF) through faucet (A). From
underneath the sink, connect the lift rod
(FF) to the lift rod strap (GG) by pushing the
button and inserting the lift rod (FF) all the
way into the seated space of the lift rod strap
(GG). Release the button to lock. Pull lift
rod (FF) and lift rod strap (GG) in opposite
directions to ensure the lift rod is completely
secure.
ASSEMBLY INSTRUCTIONS
1
7
9
2
3
3
2
HH
DD
FF
FF
GG
GG
HH
A
7. Insert ball rod (HH) into drain assembly (DD).
Tighten sleeve.
9. Adjust ball rod (HH) to the down position.
Attach to lift rod strap (GG).
