ASSEMBLY INSTRUCTIONS
14
13
DD
HH

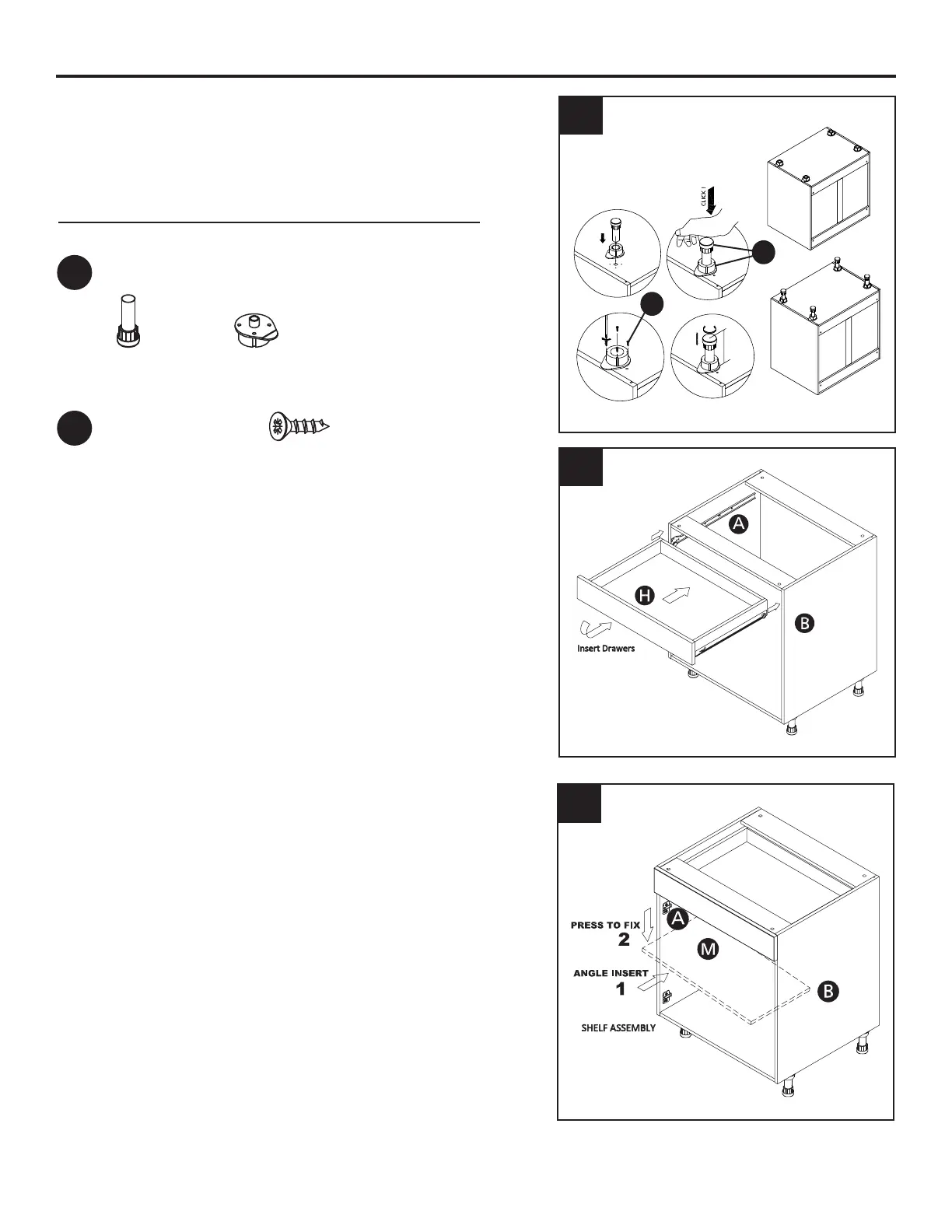

15. Insert the shelf onto the cabinet at some angle as
per the drawing and press the shelf from the top
until it gets held with the shelf support hardware.
15
14. Insert the assembled drawer box into the
assembled cabinet box as per the illustration.
If adjustments to the drawer are needed, instructions
are available on page 12 of this manual.
13. Position the mounting bracket for the legs on the
underside of the cabinet box and using a phillips
head screwdriver, secure into place with csk screws
5/8" as per the illustration.
Hardware Used
PVC adjustable leg
x 4
DD
Leg Mounting bracket
CSK screw 5/8"
x 16
HH
To Next Page
