Project Source 67129W-100802 - Assembly Instructions; Step 1: Shut off water supply; Step 2: Install plug and connect; Step 3: Mount hose guide

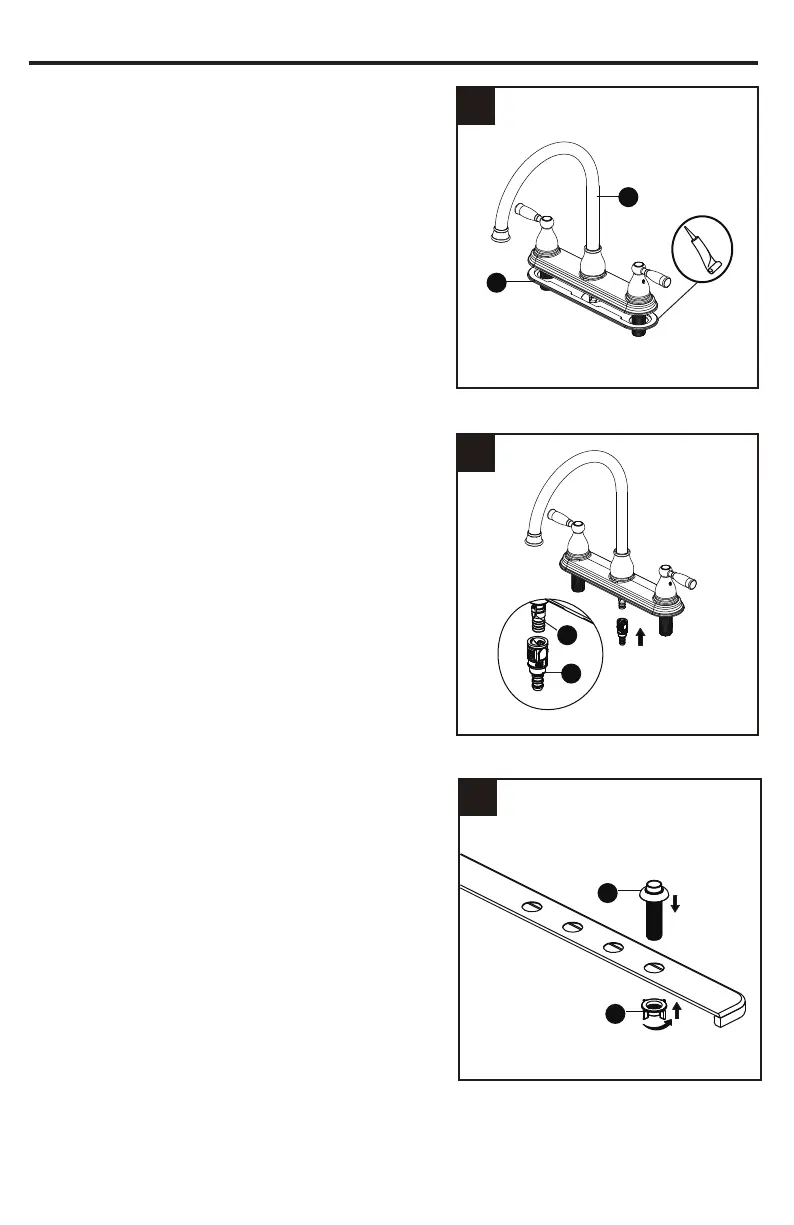

1. Shut off the water supply. Remove the old faucet.
Ensure the base plate (B) is on the bottom of the
new faucet (A).
NOTE: Silicone sealant is required under the base
plate (B).
4
Remove the lock nut (H) from hose guide (G).
Mount the hose guide (G) into the far-right hole in
the sink. Secure the hose guide (G) underneath
the sink using the lock nut (H) and hand tighten.
NOTE: Skip step 3 and step 4 if install without
side spray.
ASSEMBLY INSTRUCTIONS
1
3
2.
Skip this step if install with side spray.
2
D
E
A
B
a. Push the plug (E) firmly upward and snap onto
the block (D).
b. Pull down moderately to ensure the connection
has been made.
G
H
3.
SILICONE
