Project Source F201E514CP - Page 5

5
1
2
49 3/16 in.
Tub & Shower
30 in.
Shower Only
30 in.
Tub & Shower
48 in.
Shower Only
8 in. Min.
A
E
G

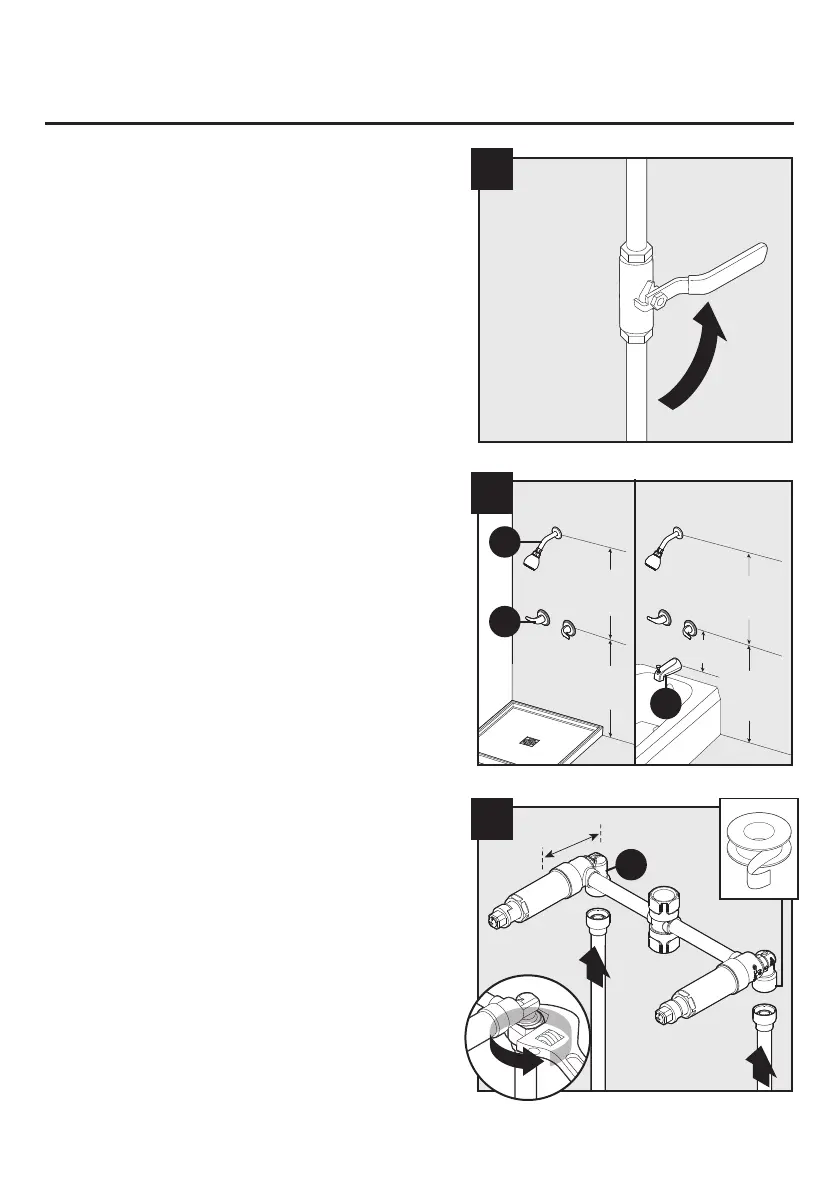

ASSEMBLY INSTRUCTIONS
2. Note the suggested installation distance between
shower arm (A), handle (E), and spout (G).
3. Attach hot and cold supplies to handle valves of
valve body (D). For threaded connections, wrap
thread seal tape around threaded ends before
connecting. Recommended distance from center of
pipe to finished wall is 1-3/4 to 3 inches.
Note: Numbered arrows within steps indicate
sequence of actions.
1. Shut off main water supply before installation.
1
3
1
1
2
3
2
3-1
1-3/4 in.
to 3 in.
D
