8
Positively earthed
Connect the BLACK lead (battery clip) from the charger to the Negative (-) battery
terminal.
Connect the RED lead (battery clip) from the charger to the vehicle’s chassis away from
the fuel line or moving parts.

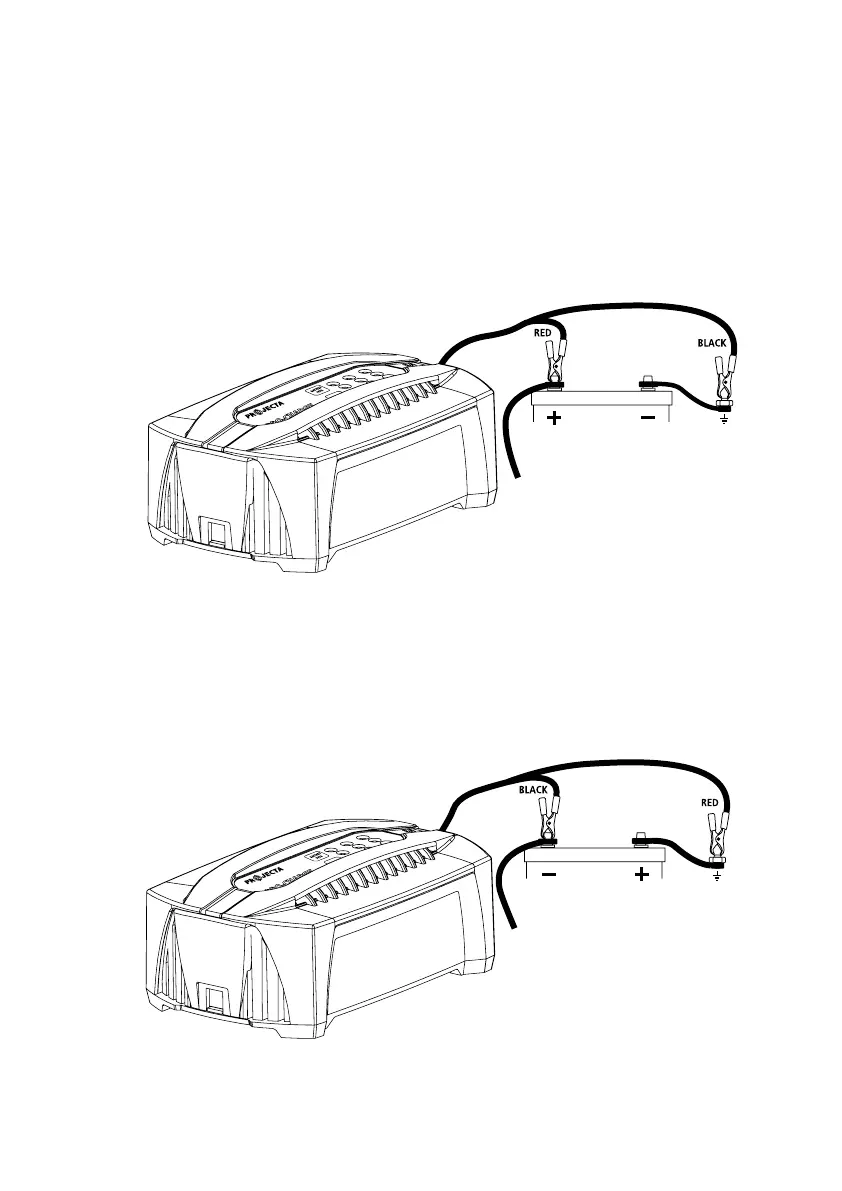

Connection in vehicle
(positively earthed)
STEP 2B – BATTERY IN VEHICLE
Determine if the vehicle is Positively (+) or Negatively (-) earthed. Negatively earthed
vehicles have a cable (usually black) from the Negative battery terminal to the vehicle’s
chassis.
Negatively earthed (most vehicles)
Connect the RED lead (battery clip) from the charger to the Positive (+) battery terminal.
Connect the BLACK lead (battery clip) from the charger to the vehicle’s chassis away
from the fuel line or moving parts.
Connection in vehicle
(negatively earthed)
