AQ1570 Quick Reference Guide
INSTALLATION
The airline tubing allows the CCU to be wall-mounted near an electrical source and the cartridge
heads up to 100ft (30m) away. AQ1570BASE includes two cartridge heads, but the CCU can be
expanded to three or four cartridge heads with AQ1570ADD packages.

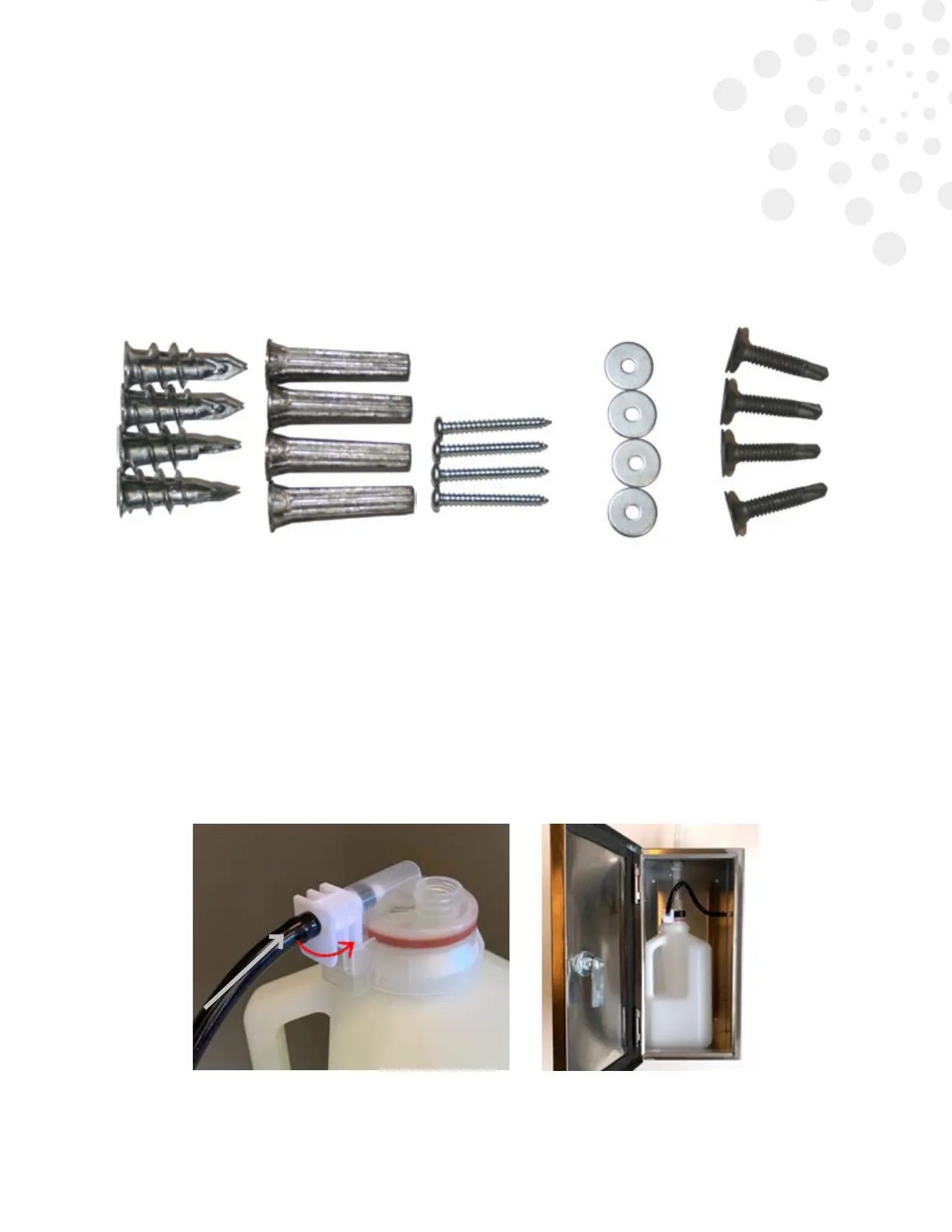

Each mount kit contains the following
Drywall Anchors Concrete Anchors Screws for Drywall Washers for Screws for
or Concrete Drywall or Concrete Sheet Metal
1. Wall mount the CCU and cartridge enclosures.
2. Connect the CCU to power.
3. Install a plume kit and plume director on each cartridge head.
4. Connect the airstem and insert the cartridge as shown. Then, screw the plume kit cap onto the
cartridge plume port.
