Performance in aluminium
Manual-MPT Tower

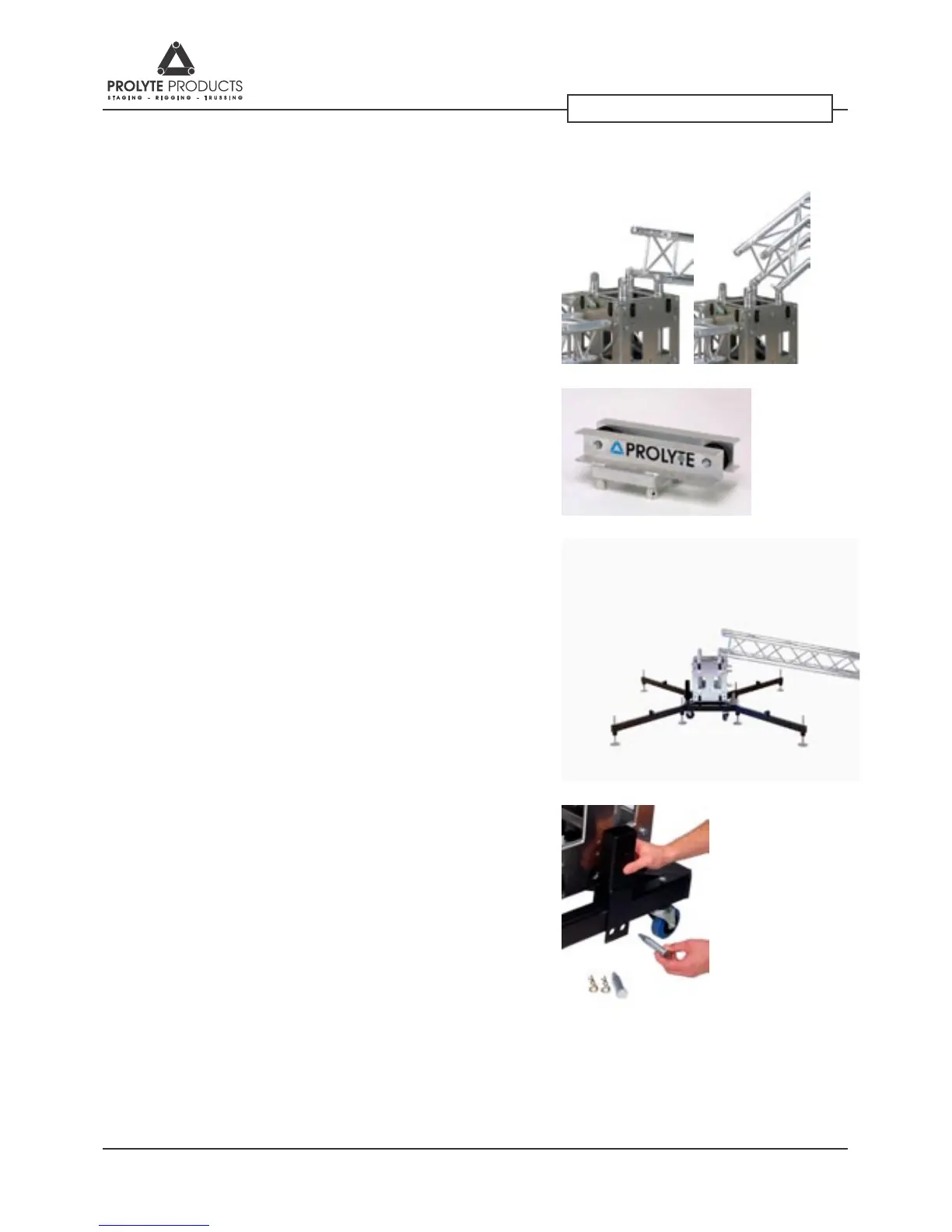

A complete mounted hinge set. First locate the
truss pins to one side, the truss now works as a
hinge and can be erected easily. Then locate the
remaining truss pins in the other side to x the
mast into position.
Connect the chosen truss type and spans to the
sleeve blocks.
Built the mast to the desired length, however never
exceeding 7,5m in height.
Put the top section with the pulleys to the end of
the tower, and place the mast against the hinges.
Make sure that the top section is correctly aligned
with winch and sleeve block.
Unscrew the screw jacks in the outriggers, make
sure that the castors of the base are free of any
load. The complete load of the base should be
supported by the screw jacks. Level the base
by adjusting the screw jacks. The base must be
perfectly levelled before the mast is erected.
Hand winches
Attach the winch to the base section, using the
adapter. Undo the release of the hand winches
and slowly pull out the length of steel wire rope
needed and place this over the top section into the
pulleys. Inspect the wire rope for visual damage
or deformation and check criteria or standards
for discard. If in doubt do not use the cable and
consult your dealer or Prolyte.
