Task 6: Setting up the SmartStor
13

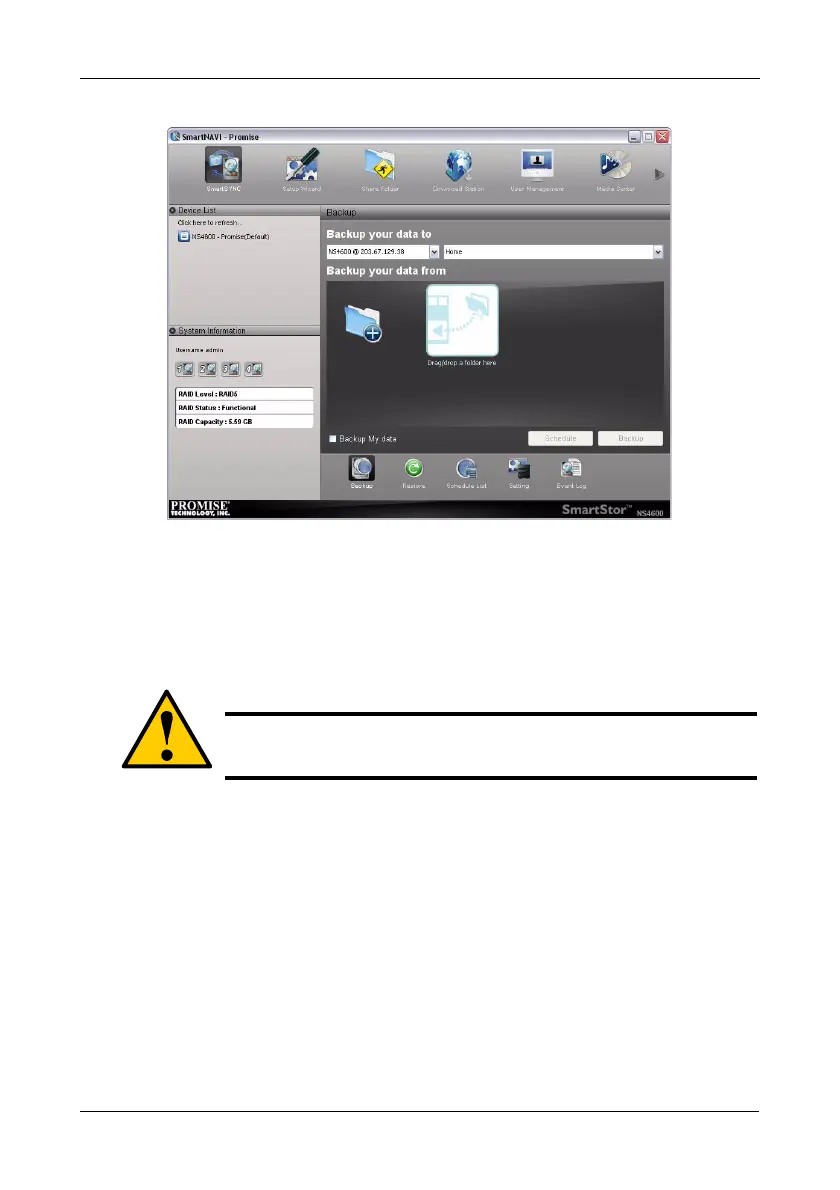

Figure 7. Main Window
The Setup Wizard has two modes:
• One Click Setup – Loads a collection of default settings. Recommended for
most users.
• Advanced Setup – Enables you to make your own settings. Recommended
for advanced users.
One Click Setup
To configure your NAS system using One Click Setup:
1. Go to the Main Window.
See “Opening SmartNAVI” on page 12.
2. Click the Setup Wizard icon.
3. Click the One Click Setup button.
Caution
Do NOT run the Setup Wizard on a NAS system that is already
configured! That action will delete your data and network drives!

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
