Promise Technology Smartstor NS4600 Quick Start Guide

Task 8: Setting up a Network Drives on other PCs
31

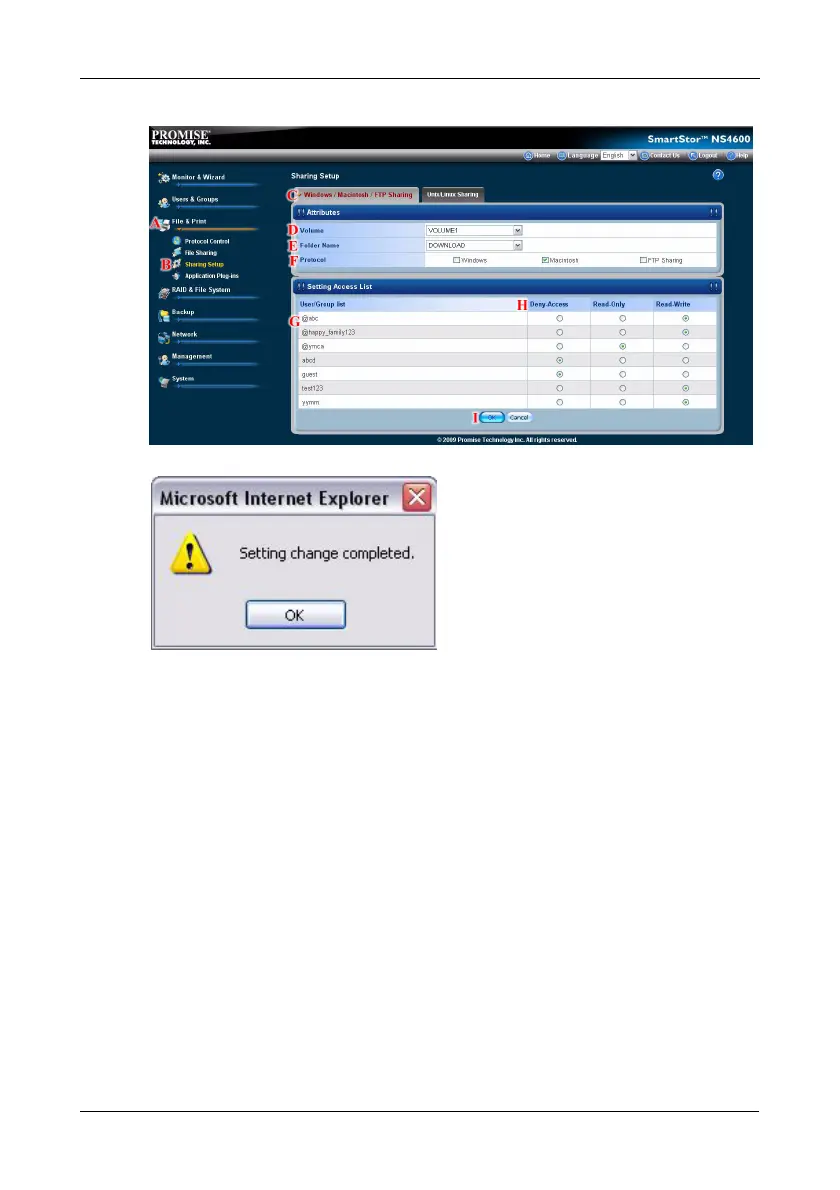

8. Click the OK button to save your settings. (I)
9. In the confirmation box, click the OK button.
You can now access the specified folder from a Mac.
The Mac file sharing enables Macs to access folders on the SmartStor. In
this case, access is given for the PUBLIC folder.
FOR CLIENT USER
On the Mac Desktop
1. From the Go menu, choose Connect to Server.
2. In the Connect to Server dialog box, type afp:// SmartStor NAS IP and click
the Connect button.
Note that the IP address shown below is only an example.
Click the + button to add this IP address to the Favorite Servers list.
3. Type the user name and password in the respective fields, then click the OK
button.
The default user name is admin. The default password is admin.
The user name and password are case sensitive.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
