14

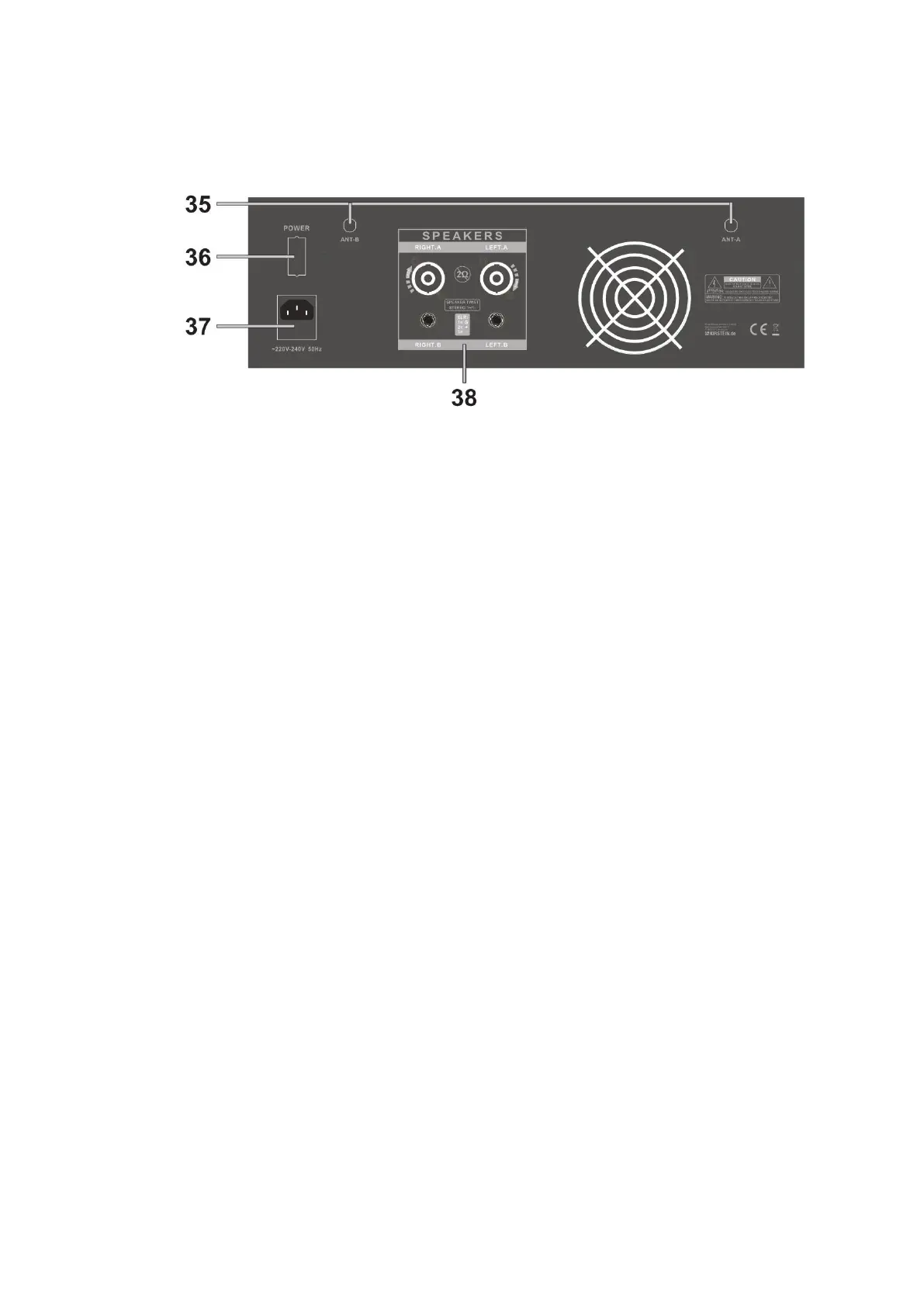

Rear connectors and controls
35 - Antenna sockets
Attach the two antennas for UHF reception of the cordless microphones here.
36 - Mains switch
For setting the mixer to operation.
37 - Connection socket for mains cable
Connect the supplied power cord here.
38 - Output sockets of the integrated power amplifier
Attention, the amplified output signal is present at these terminals. Only connect
passive speakers here. For this purpose, use either the SPEAKON® -compatible
"Speaker Twist" jacks, or optionally the 6.3mm jack sockets.
