UHF receiver module
The mixer has an integrated UHF DUAL radio receiver.
After switching on the microphone, it is automatically detected and registered to one
of the channels.
As soon as a connection to the microphone has been established, the red LED
signal indicator of the respective radio channel (A/B) lights up permanently.
The two channels A and B of the receiver module are already preset to the
reception frequencies 823,0 MHz and 827,0 MHz.

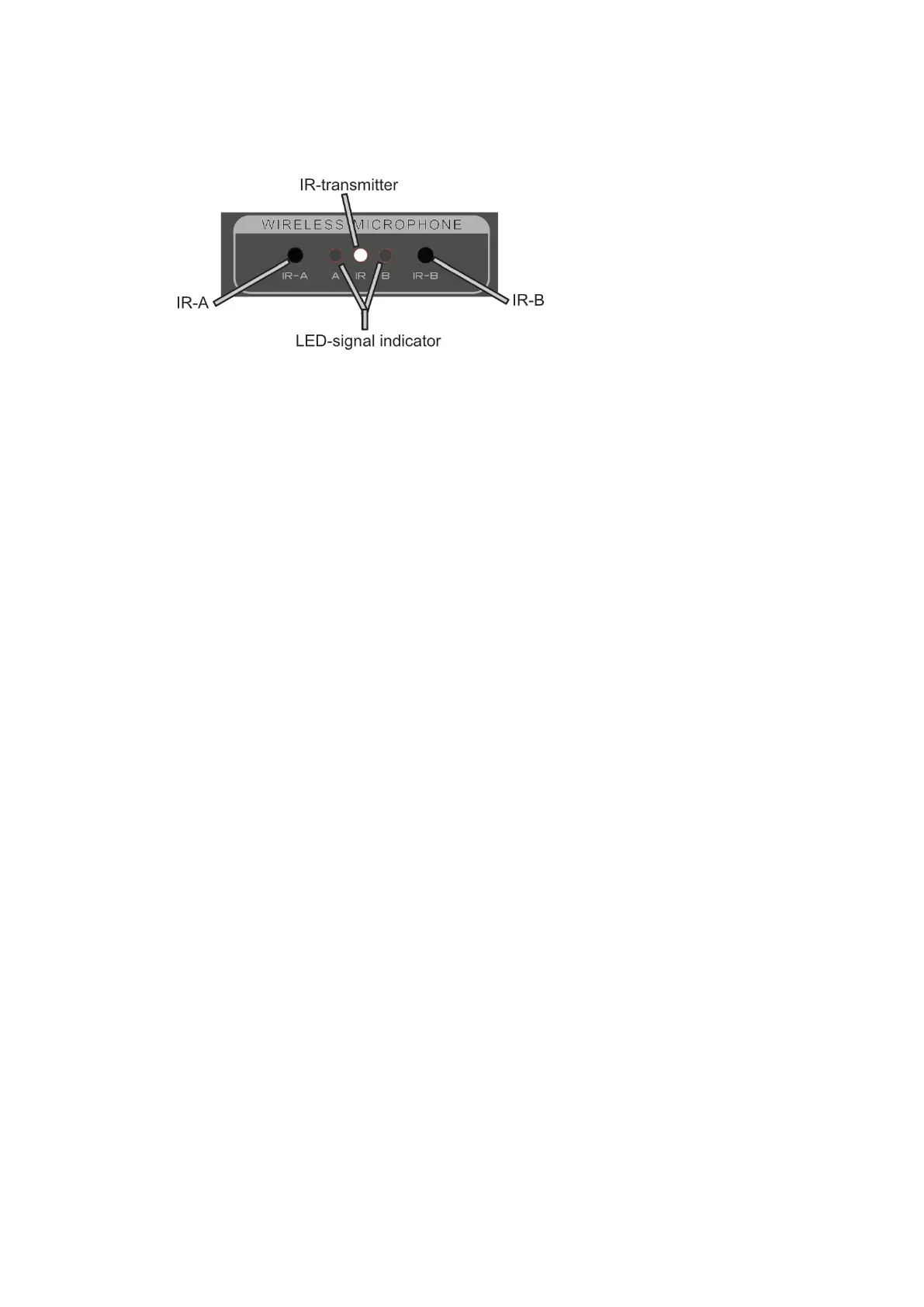

To assign a microphone to a specific channel, press the IR-A or IR-B button and
then hold the display of the wireless microphone over the IR transmitter of the
receiver unit. The microphone is automatically switched to the preset frequency
range and connected to the respective receiver module (A/B).
Please observe the respective terms of use of your country in connection with the
frequency selection.
