V1.0 1,500 LB 120V AC ELECTRIC WINCH 8880429
Visit www.princessauto.com for more information 9
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace
the missing part before operating. Failure to do so could result in a
malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for
damage. Make sure that all items in the contents are included.
Contents: • Winch • Tethered Remote
• Mounting Channel • Fairlead

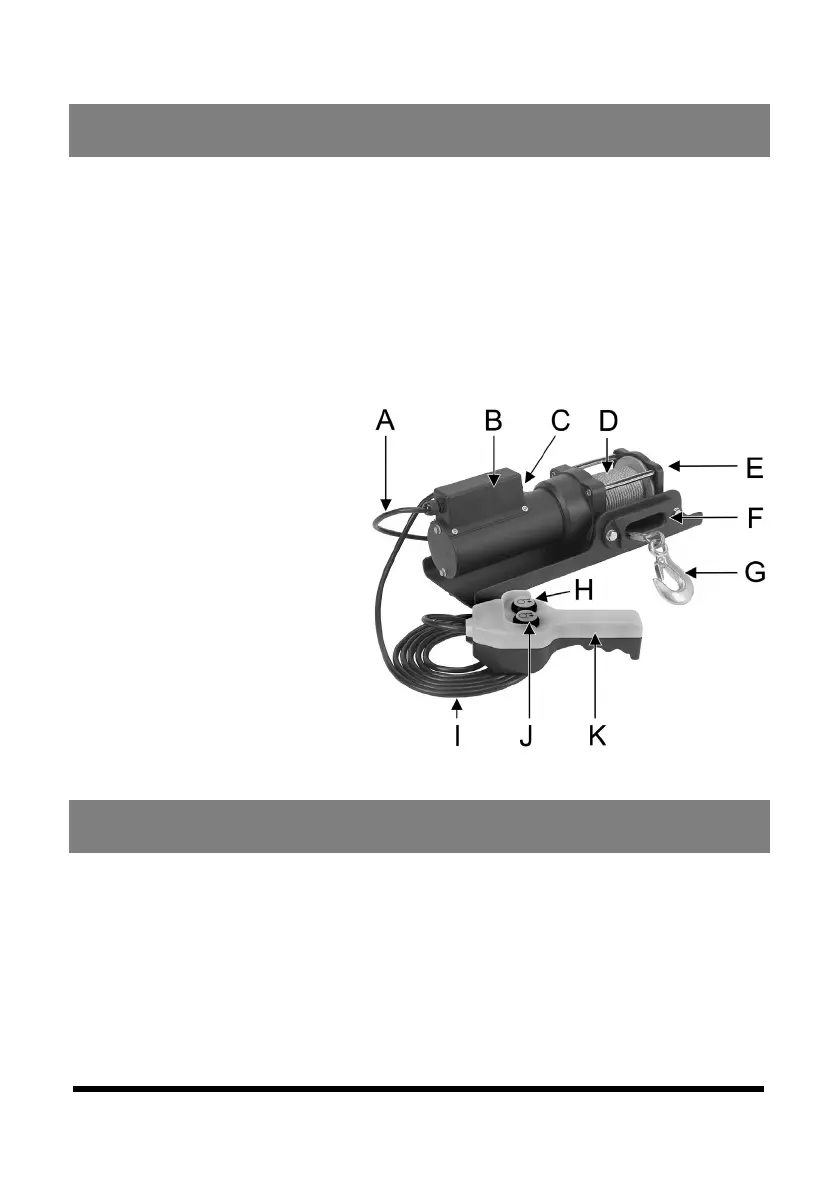

IDENTIFICATION KEY
A Power Supply Cord
B Control Box
C Overload Reset Button
D Steel Cable
E Clutch (not visible)
F Fairlead
G Sling Hook
H Retract Button
I Remote Cable
J Release Button
K Tethered Remote
ASSEMBLY & INSTALLATION
Numbered references in parenthesis (#1) refer to the included Parts List.
Letter references in parenthesis (A) refer to the included Identification Key.
All bolts, washers and nuts must be SAE grade 5 or higher.
1. Place the mounting channel (#36) against the mount structure as
a template. Mark the bolt holes you will use to connect the winch
to the structure.
1.1 Secure with concrete anchors when installing on a concrete
structure.
