Preparation for using your new TV
To enjoy the televison program transmitted by your local TV station, you need an indoor or outdoor antenna
(not supplied). Perfect picture quality requires a good signal so the outdoor antenna is necessary. If you are a
subscriber of your local CATV net, the outdoor or indoor antenna is not needed. Connect the equipments as the
following.

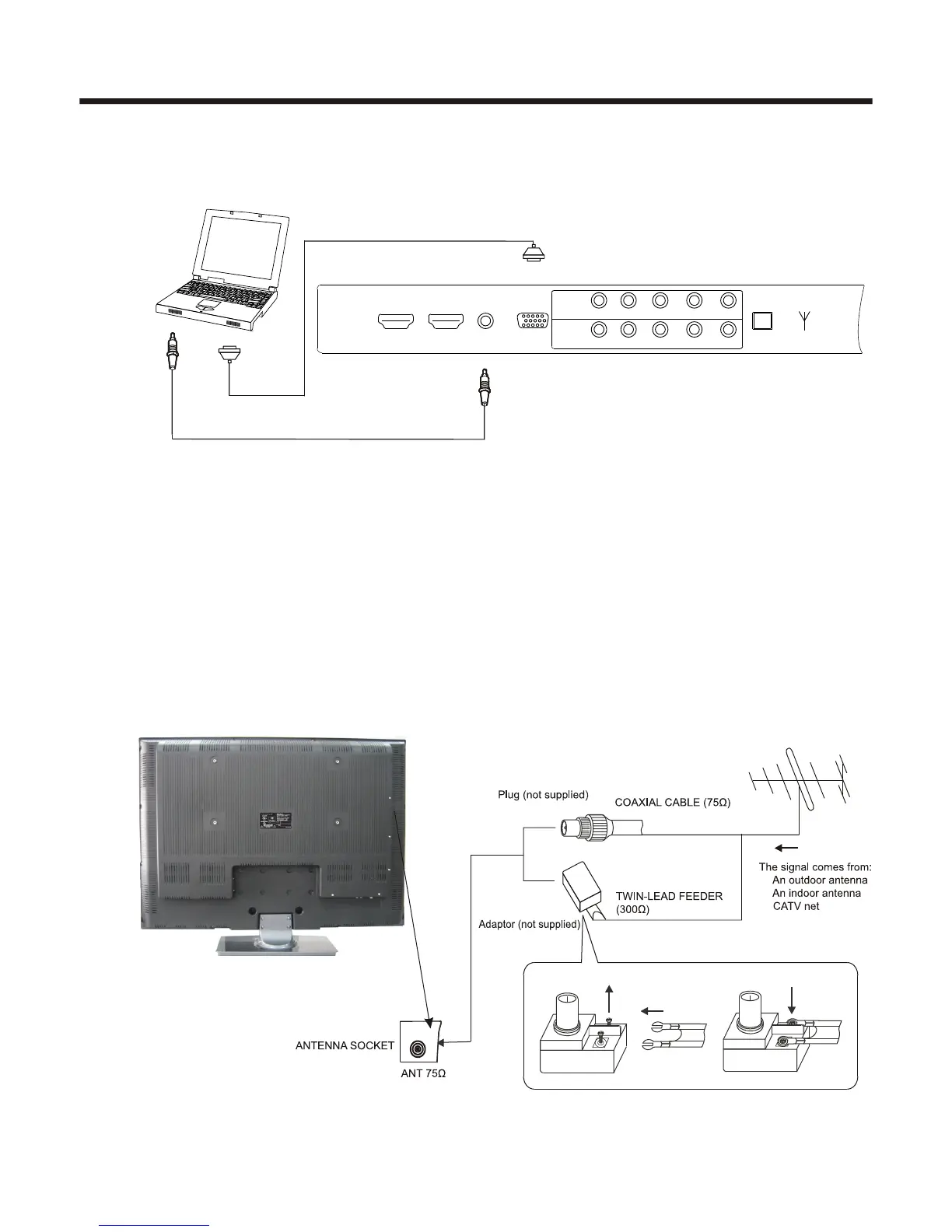

Connecting to an antenna
- 7-
You can use your TV as a monitor/speakers for your computer by connecting through its 15pin standard RGB
interface and PC audio interface(AUDIO INPUT4). Connect the devices as shown below.
Connecting to a computer
PC/NB
To VGA
To speaker
RGB line
Audio line
NOTE: PC mode support resolution: VGA, SVGA, XGA.
H D M I 2
H D M I 1
V G A
A U D I O I N
V G A
PB
PR
Y
R
C OMPON E N T 1
C OMPON E N T 2
O P T I C A L A N T 7 5
PB
PR
Y
L / M O N O
R
L / M O N O
1.Loosen the screw
2.Insert the feeder in
3.Tighten the screw
