- 9 -

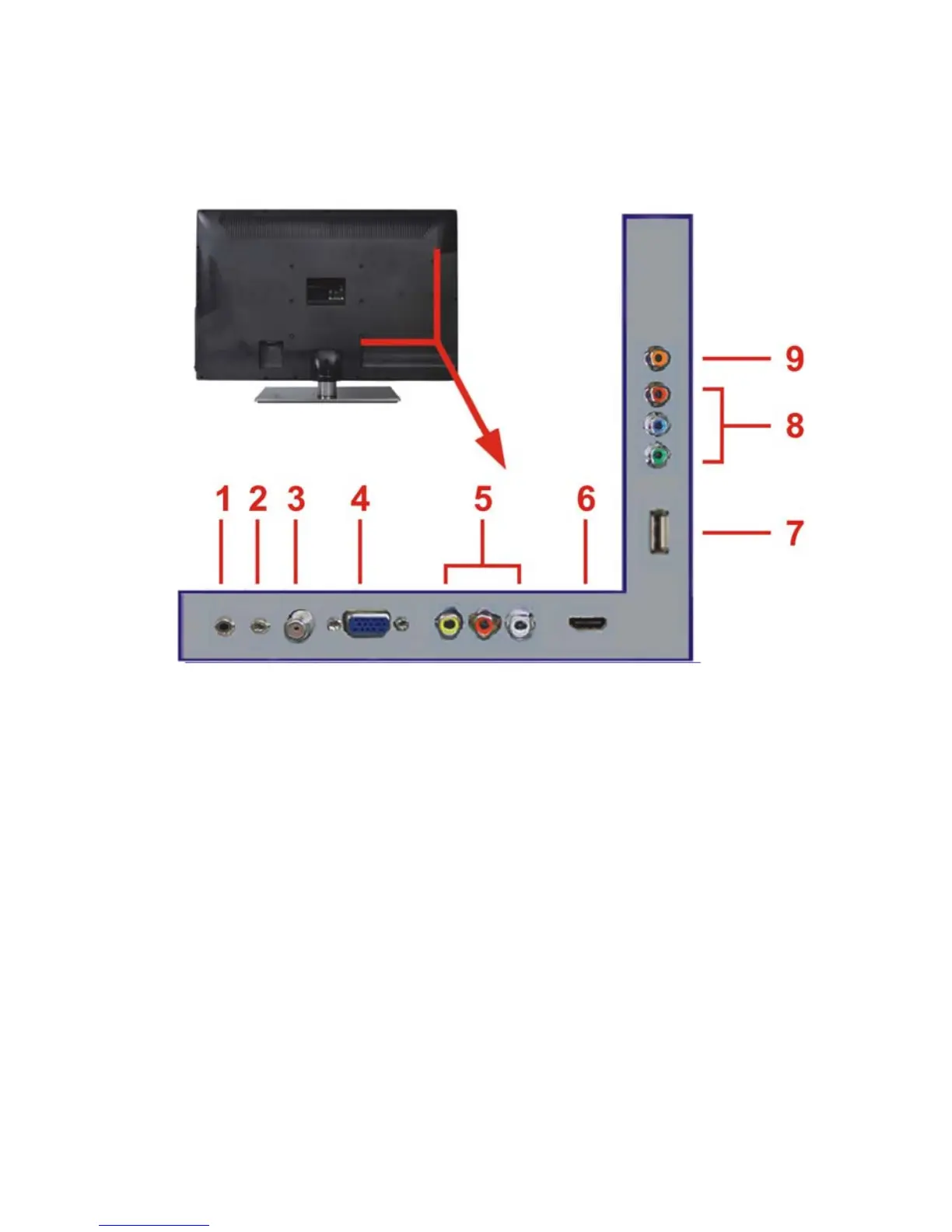

Rear View Connections
1. HEADPHONE – This connection is for headphones to be attached to the TV.
2. Audio In - This connection port is for people who want to provide audio to the TV
when using a PC or a DVI video device. The sources use 3.5mm mini-jack audio
cable.
3. TV – This connection is for digital or analog cable without the cable box or over-the-
airwave antennas. The tuner is a hybrid tuner that tunes to both analog and digital
channels. This connection uses coaxial RF cable.
4. VGA - This connection port connects to a PC for video using VGA cable. Be sure to
connect your audio cable to the VGA Stereo input if you want sound out of VGA
video source.
5. Video – Video connects to devices that use composite video cables such as VCR or
DVD player or Wii™. Connect the yellow for video and the red / white for audio.
This port shares the audio jacks with YPbPr.
6. HDMI– HDMI connects to devices that use HDMI cable, such as Blu-ray or HD DVD
player, or HD cable / satellite set-top box. This connection port receives pure digital
audio and high definition signal through one single cable. This port also can accept
a HDCP video device for video.
7. USB – USB connects to USB flash drives for playing music and picture. The USB
port is also used for updating the TV’s firmware.
