Identifying Front and Rear Panel

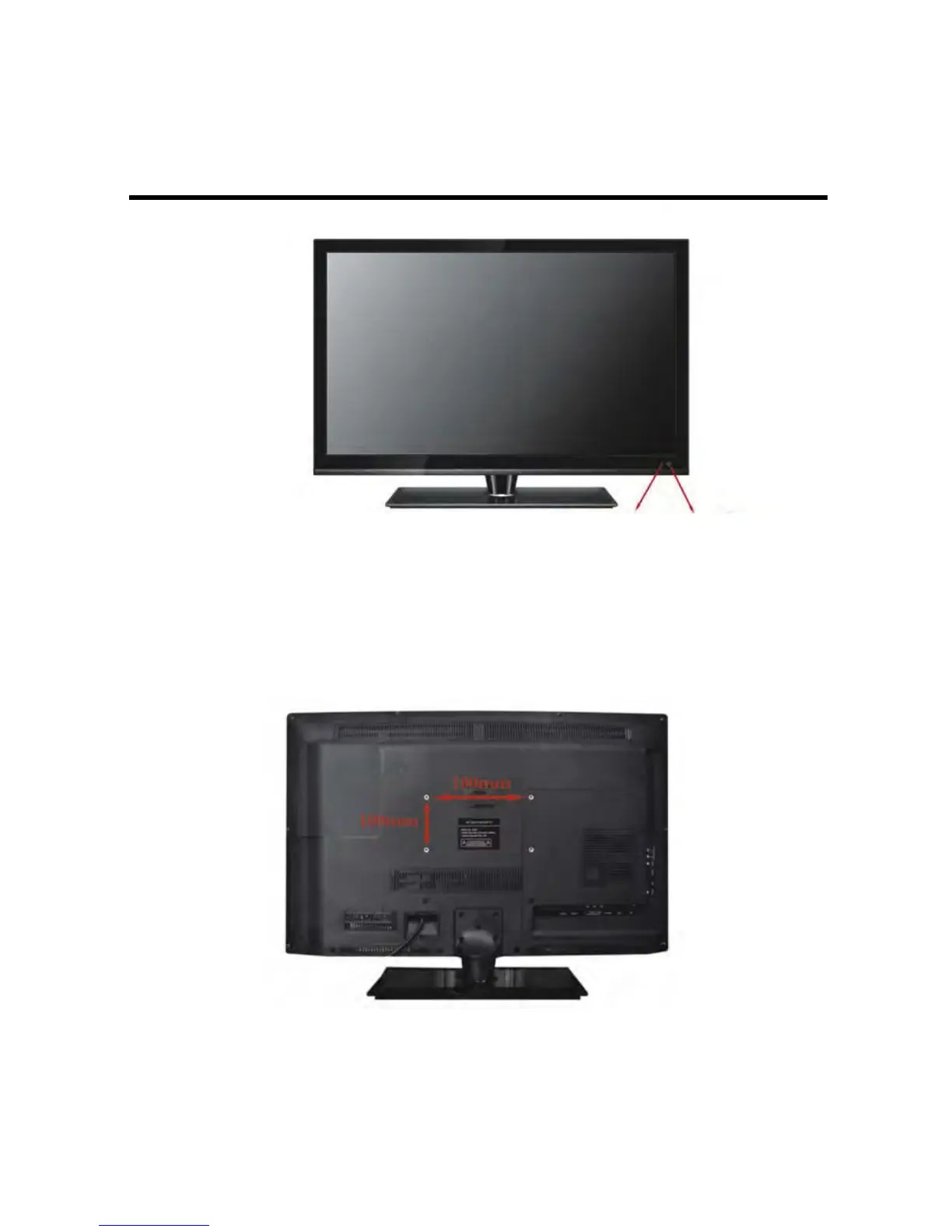

Front View
INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The light turns
green when the TV is turned on. Because of the LED in the panel, the TV might take 10 – 12 seconds to
power on.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification : 100mm x 100mm using screw size M4. Length of screw should not exceed 8mm.
Please Note : The 8mm length of screw refers to how deep the screw can go inside the mounting holes.
When you’re buying screws, you should add the original 8mm to the thickness of your mounting plate in
order to get the total screw length.
Indicator light
Remote sensor
