ProScan PLEDV2488A User Manual

- 7 -

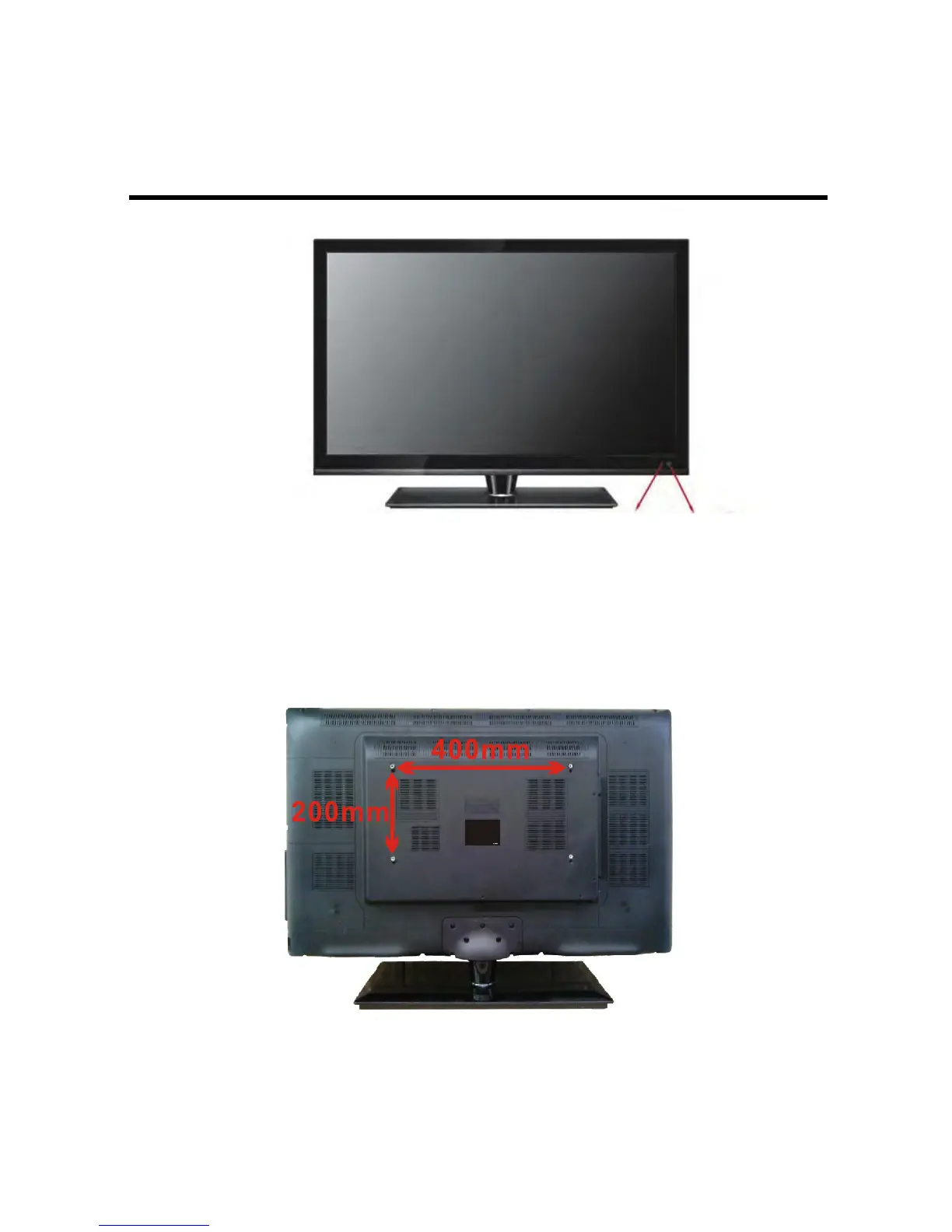

Identifying Front and Rear Panel
Front View
INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The light turns
green when the TV is turned on. Bec
ause of the LCD in the panel, the TV might take 10 – 12 seconds to
po
wer on.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification : 400mm x 20
0mm using screw size M4. Length of screw should not exceed 8mm.
Please
Note : The 8mm length of screw refers to how deep the screw can go inside the mounting holes.
When you’re buying screws, you should add the original 8mm to the thickness of your mounting plate in
order to get the total screw length.
Indicator light
Remote sensor

ProScan PLEDV2488A Specifications

General

Screen Type	led
Wall Mount	100mm x 100mm
Features	tv/dvd combo
Tuner	digital
Screen Size	24 inches
Refresh Rate	60hz
Brightness	250 candela per square meter
HDR	no
Built-In Speakers	yes
Speakers Output	6 watts
HDMI ARC Ports	no
USB Ports	1
USB 2.0 Ports	0
USB 3.0 Ports	0
Ethernet	no
RF Antenna	yes
Network	none
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
VGA Ports	0
Remote Control	standard
3D	no
Power Consumption	37 kilowatt hours
Width with Stand	21.9 inches
Depth without Stand	6.5 inches
Height without Stand	13.1 inches
Net Weight without Stand	8 pounds
